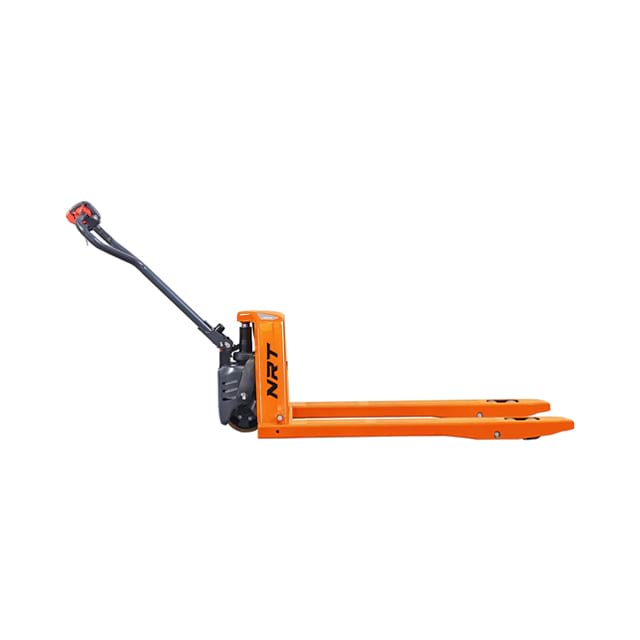

Lithium Battery Electric Pallet Jacks from China manufacturer

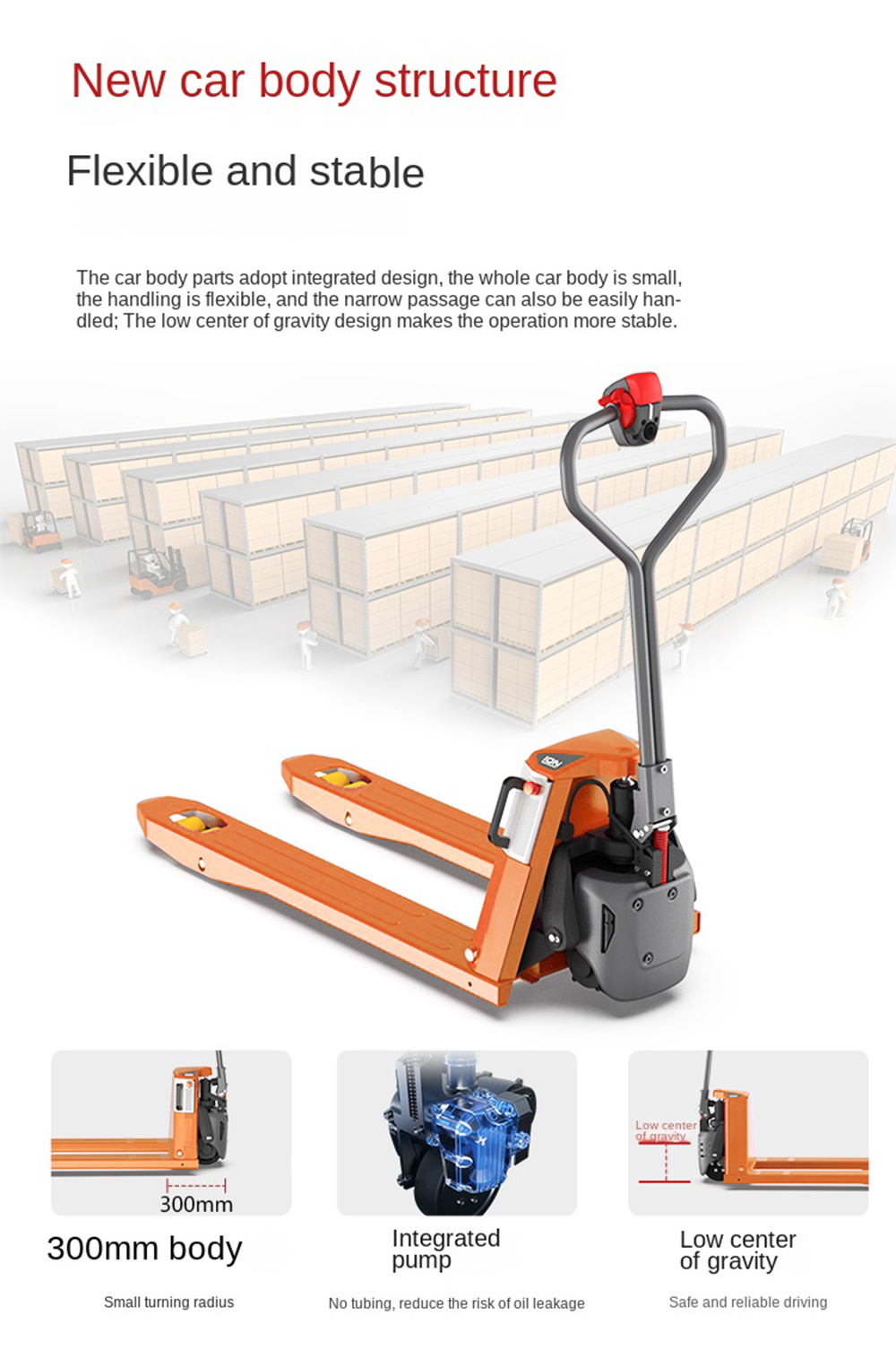

This lithium battery electric pallet jack is designed for delivery in difficult situations. It has a brand-new body structure, a compact body, and a turning radius of only 300mm, which makes it easy to operate even in narrow spaces, taking into full consideration the space limitations of most retailers, warehouses and deliveries.

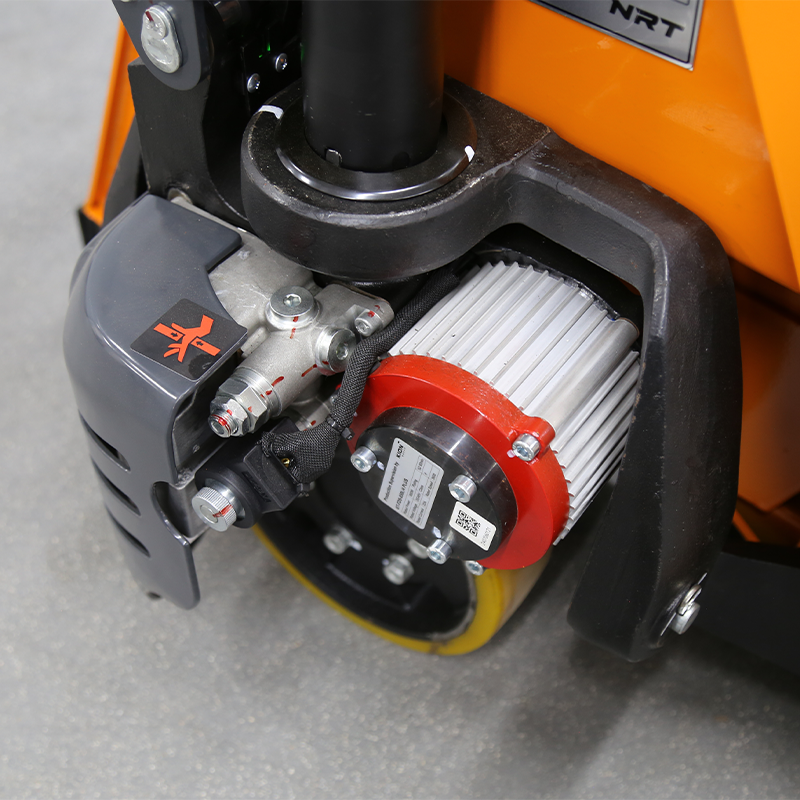

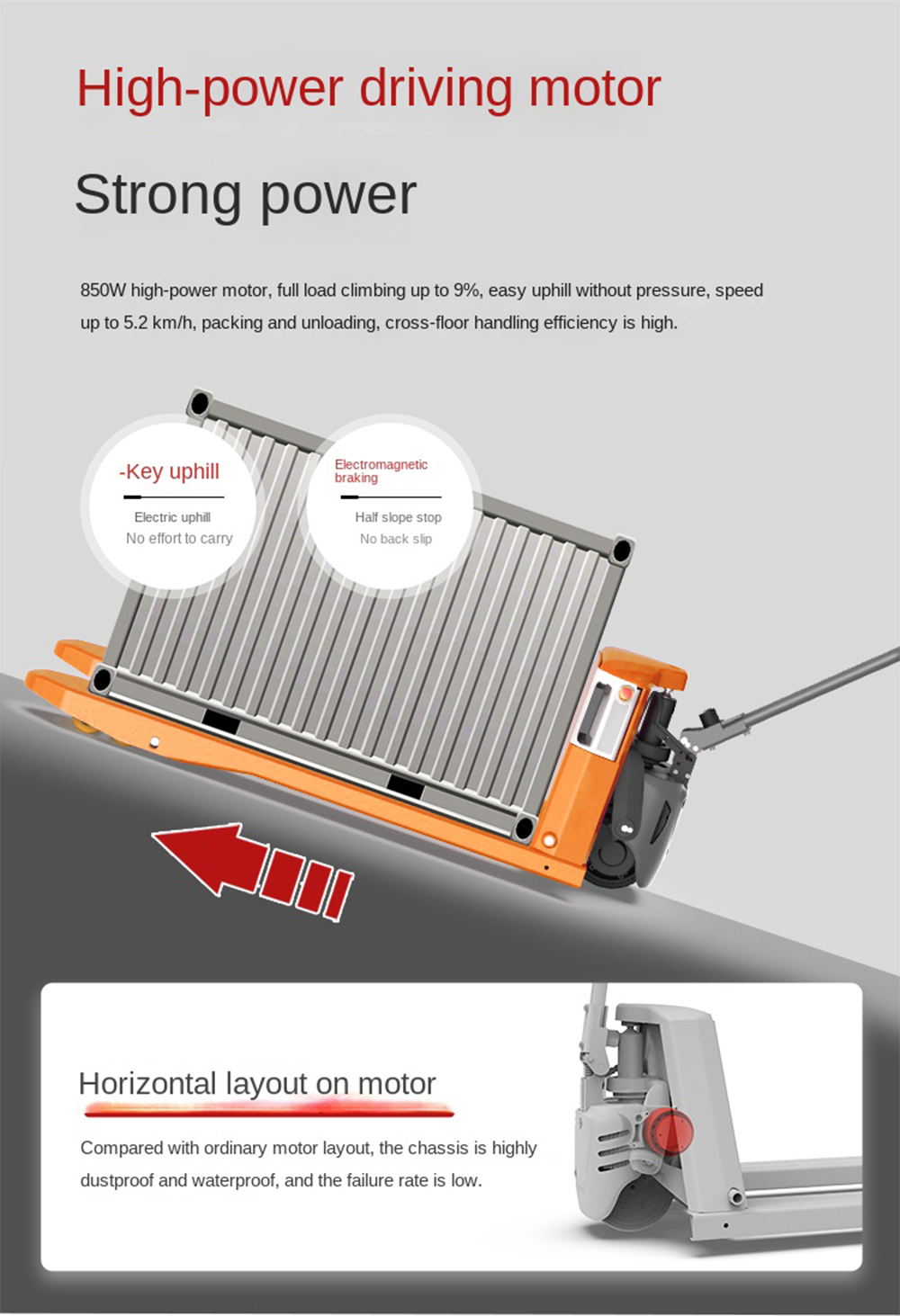

It is equipped with an 850w high-power driving motor, which can climb up to 9% with full load, and also provides an excellent driving speed of up to 5.2km/h, which makes it easy to climb uphill without pressure, smooth operation and easy maintenance, and high efficiency in moving boxes and unloading goods across floors.

The motor is arranged on the bedroom, the bottom basin is high and dustproof and waterproof, and the center of gravity is low to prevent the feet from hitting the forklift due to impact during use. The internal integrated pump is used without oil pipes to reduce the risk of oil leakage.

The biggest feature is that it has a long-lasting lithium battery, the side-pull layout can be replaced in 6s, and the working time can reach up to 3.5h. These configurations can seamlessly improve productivity and reduce costs, and realize various working conditions.

Low maintenance cost, and is an ideal vehicle for loading and unloading and carrying pallet goods in warehouses, supermarkets, workshops and homes.

Special features

*1500~2,000kg load capacity

*48V lithium battery drive system

*High-power travel motor

*Integrated pump assembly, no oil pipe

Electric Pallet Jack

Item	Electric Pallet Jacks
Model	NB15L01LD	NB20L01LD
Rated load	1500kg	2000kg
Vehicle length	1450mm	1450mm
Vehicle width	560/685mm	560/685mm
Fork size	55x150x1150mm	55x150x1150mm
Load center distance	600mm	600mm
Lifting height up to	115mm	115mm
Fork height from ground	80mm	80mm
Travel speed (full load/empty load)	5.2km/h	5.2km/h
Climbing grade (full load/no load)	9%/20%	8%/20%
Turning radius	1245mm	1245mm
Weight (including battery)	107kg	112kg
Lithium battery	48V/10Ah	48V/15Ah
Charger	48V/2.5Ah	48V/5Ah
Working time	2-3h	3-3.5h
Charging time	3-4h	2-3h

1. Maintenance

The electric pallet jacks is equipped with a lithium -free lithium battery, a built -in charger, with a standard plug, which can be charged at any time and quickly replaced 6s. The work efficiency is high. Large -drive motors provide higher performance, maximum climbing ability, full/empty load, up to 6/16%

2. Ecological engineering design

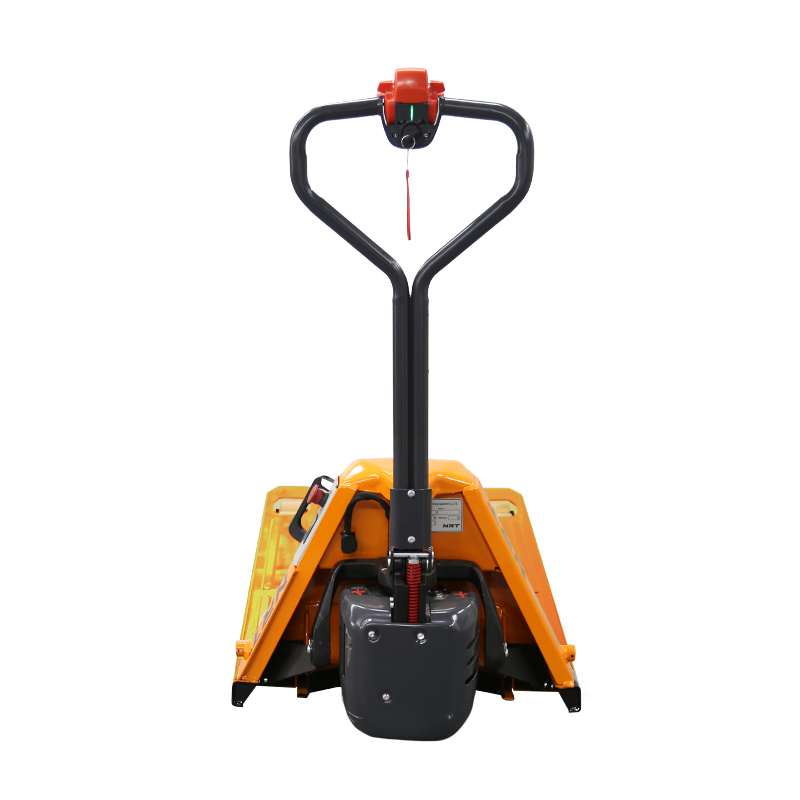

The tray car has an ergonomic rudder handle. All operations are concentrated in the rudder handle and can be operated with one hand, allowing operators to check the tray comfortably and easily.

*Multifunctional control handle with angle grip

*There are anti -collision switch, one -click multi -use (long press for 7 seconds, switch the manual mode at any time)

*3 The gear speed can be adjusted to meet different transportation needs

3. Safe

The electric pallet truck is also equipped with effective parking brakes, which can securely fix the truck on the slope or tail lift. Electric lifting, manual stepless decline, ensure unloading steadily. Drive the wheat with a metal cover to protect the feet.

4. Reliability

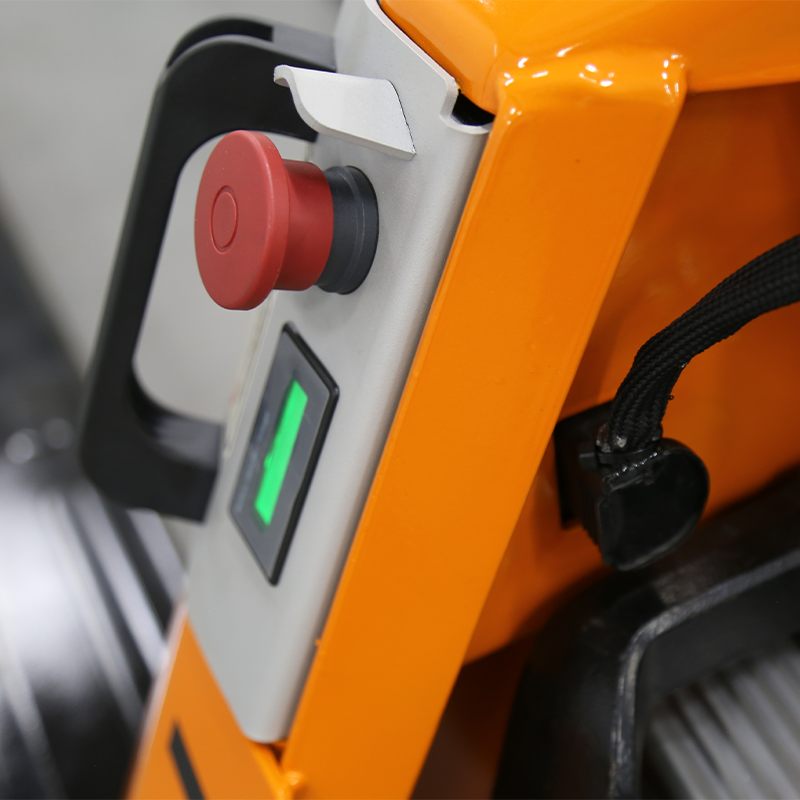

The main components have been verified by the market for many years. The metal chassis and shells are greatly improved to greatly improve the reliability of the vehicle. There is a sound light alarm at low power to ensure timely charging.

1.Multi-scenario application

This pallet truck is designed for use in various scenarios such as retailers, warehouses and packaging, including unloading, production line handling, supermarket handling and factory warehouse handling, and even handling in narrow spaces. It is smooth to operate and easy to maintain.

Pallet Truck Forklift

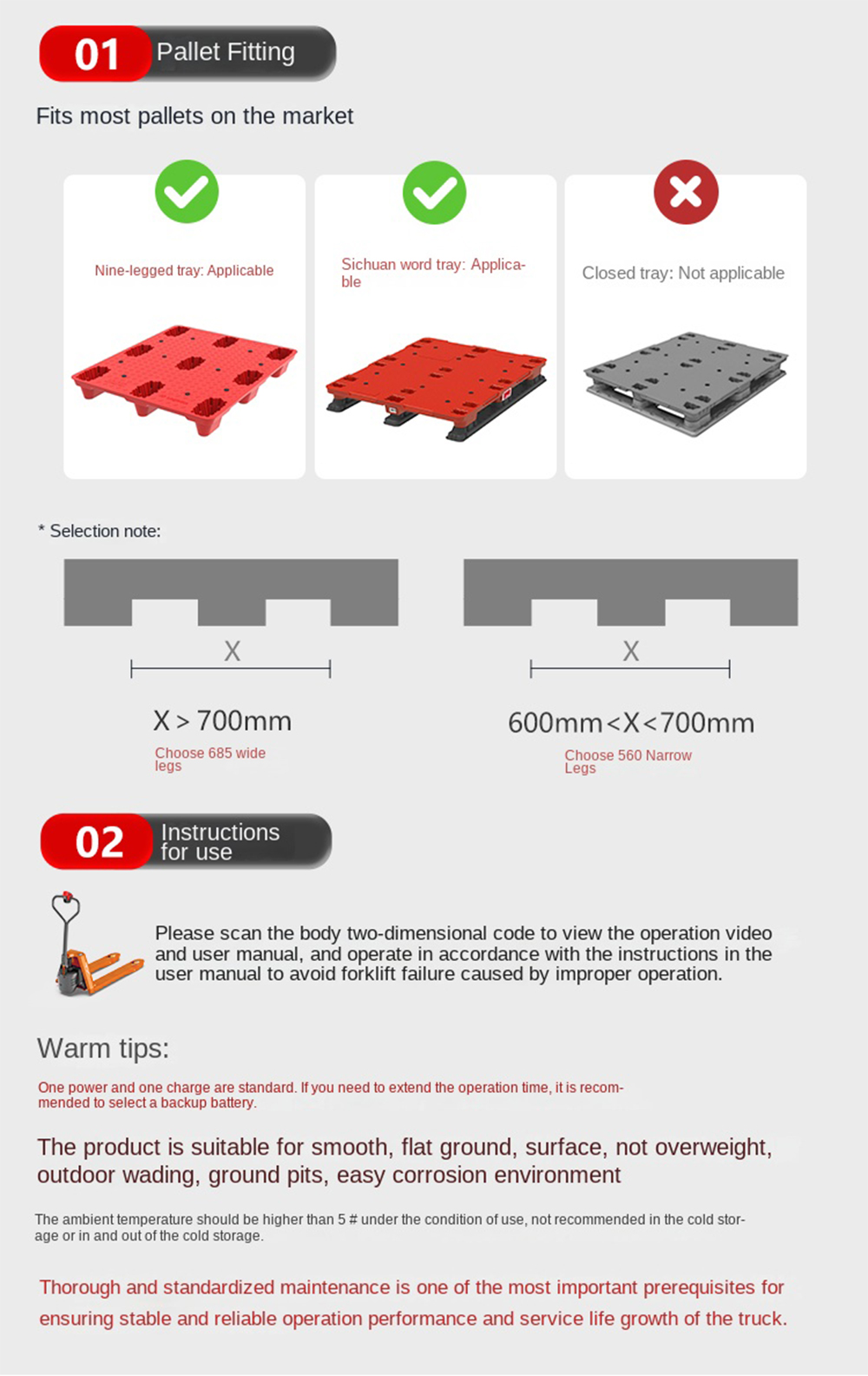

2.Product Use Precautions

1. This electric pallet jack can adapt to most pallets on the market, including but not limited to nine-legged pallets and Sichuan-shaped pallets, but avoid using closed pallets.

2. Try to use one battery and one charge as standard. If you need to extend the use time, it is recommended to purchase a spare battery.

3. This product is suitable for smooth and flat ground, not overweight, outdoor wading, and corrosive environment.

4. The environment should be used under working conditions above 5℃. It is not recommended to be used in or in and out of cold storage.

※ Thorough and standardized maintenance is one of the most important prerequisites to ensure the stable and reliable operation performance of the transporter and increase its service life.

Pallet Truck Forklift
