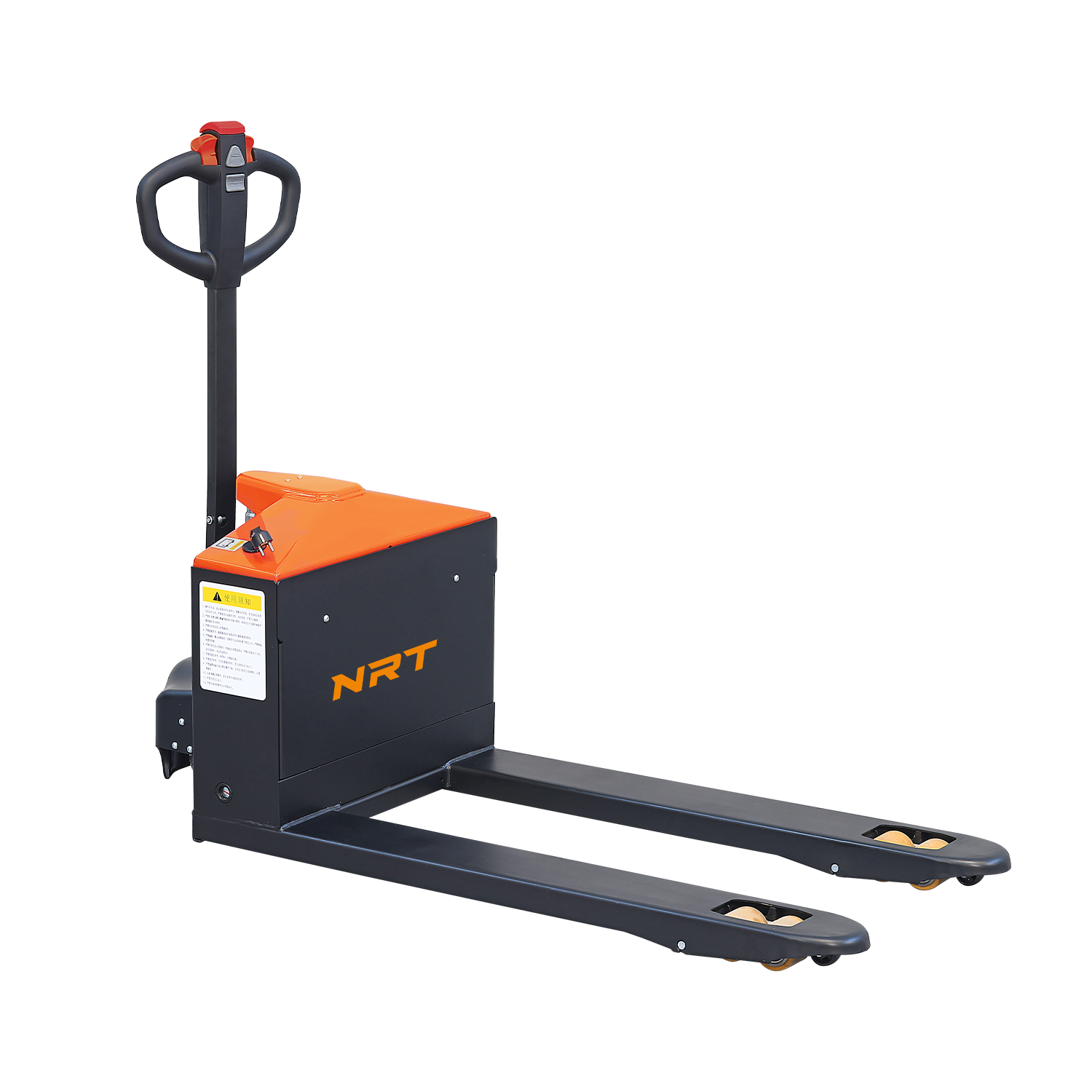

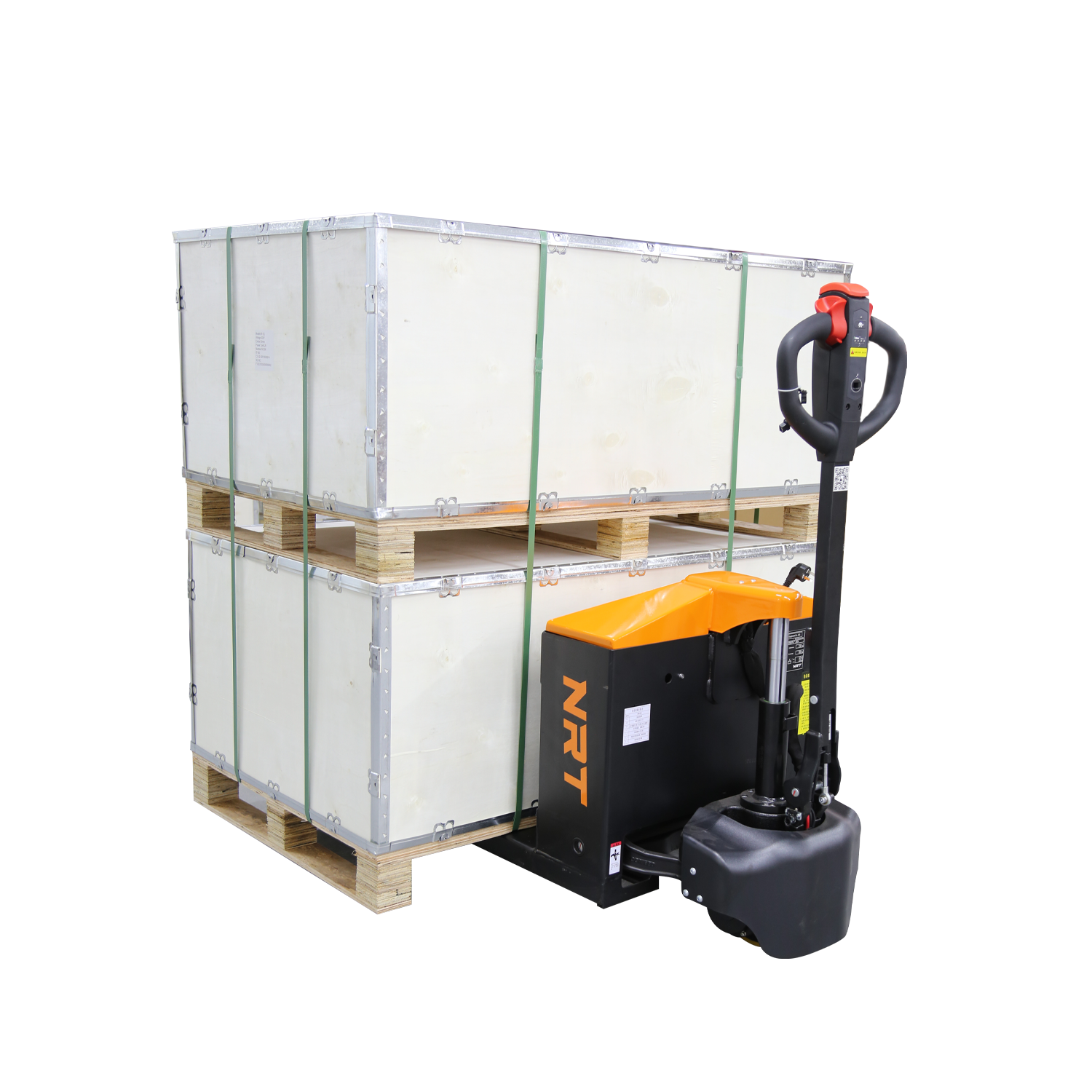

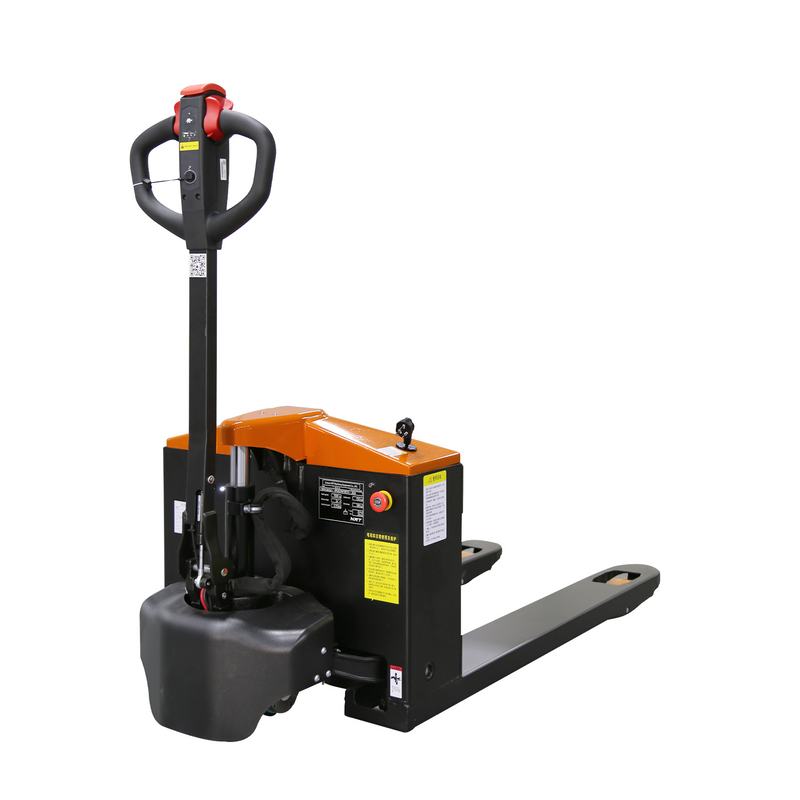

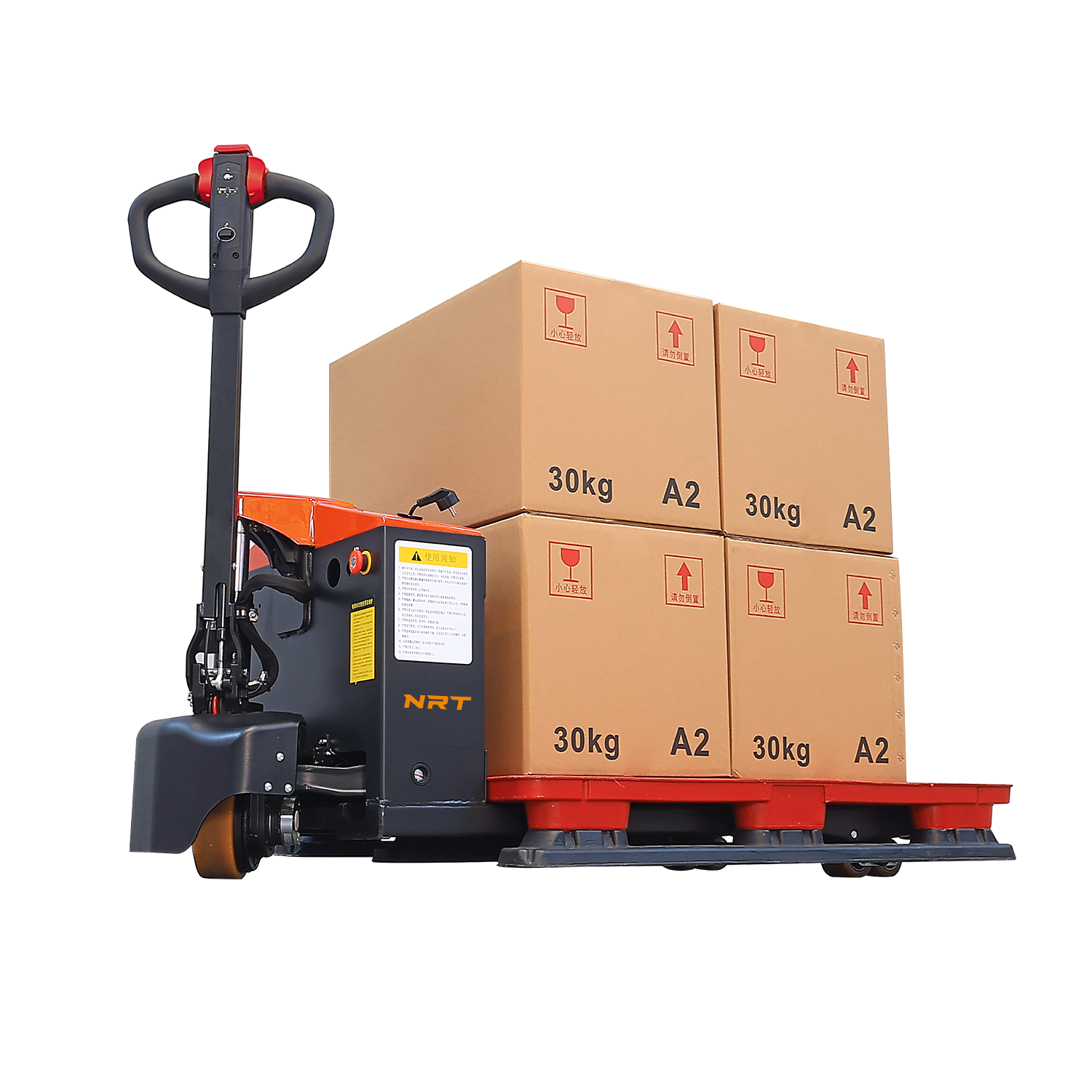

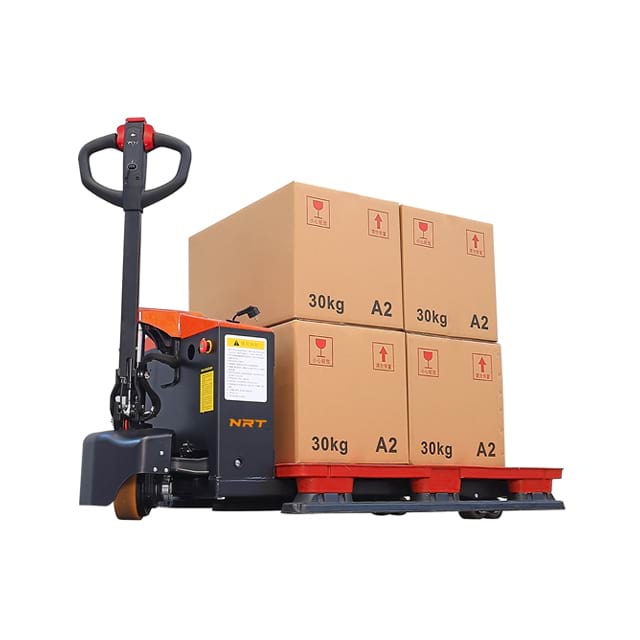

This electric pallet truck is labor-saving, light, efficient, stable, easy to operate, safe and reliable, low noise, and pollution-free. With a full metal steel body, it has a heavy weight and can withstand the pressure of heavy objects and frequent handling, achieving fast and stable handling.

It is also equipped with an AC drive system and a long-lasting and maintenance-free large-capacity battery, with a working time of up to 4.5 hours. Note: When the battery is less than the last three grids, it needs to be charged in time.

The 24V AC drive system and centralized tiller, plus electric lifting travel, make the operation simple and comfortable.

The highest lifting height from the ground can reach 190mm. If you need stability and reach a higher height, this stable electric pallet truck is recommended. Low maintenance cost, with two speed options of slow and fast to meet the needs of different personnel.

Special functions

*1500~2,000kg load capacity

*24V lead-acid battery drive system

*AC drive and electric lifting

pallet jack

Safety
High Performance
Comfort
Reliability
Appearance

Safety

High safety level, electromagnetic brake, brake when releasing the hand, plus its low skirt design, can effectively protect the feet, and the low-mounted long tiller ensures that there is enough safe distance between the truck and the driver. Emergency brake button ensures safety in emergency situations.（Full load 6%, empty load 15%.）
High Performance

It is equipped with a high-power motor, which can provide strong power for the whole vehicle. The built-in charger can realize 220v voltage charging, provide more portable operation, and charge anytime and anywhere. The thick chassis ensures the stability of steering.
Comfort

Ergonomic centralized tiller, centralized button design, electric lifting and walking, simple operation, equipped with turtle speed button and clear power display, compact bottom basin design can be easily used even in a small space.
Reliability

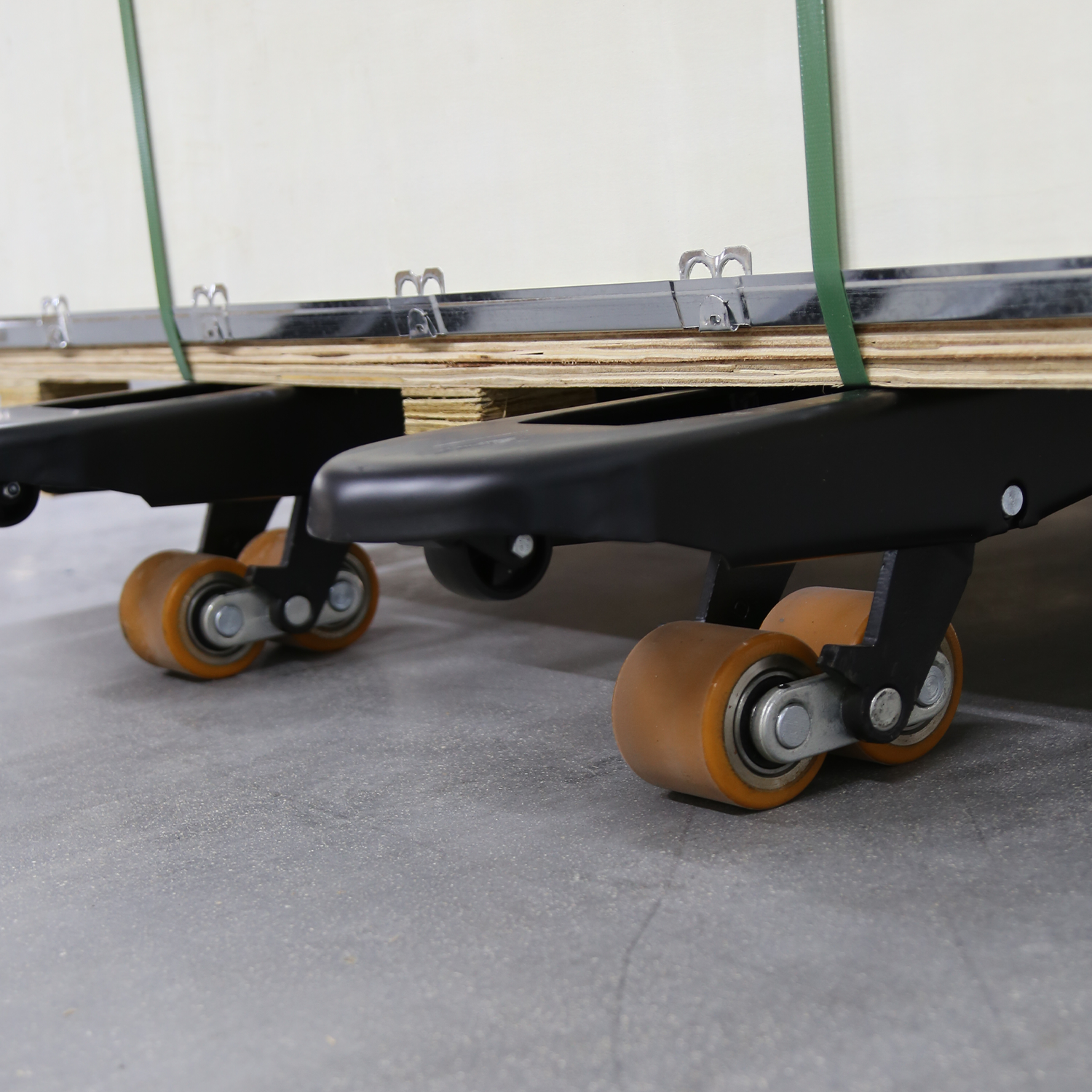

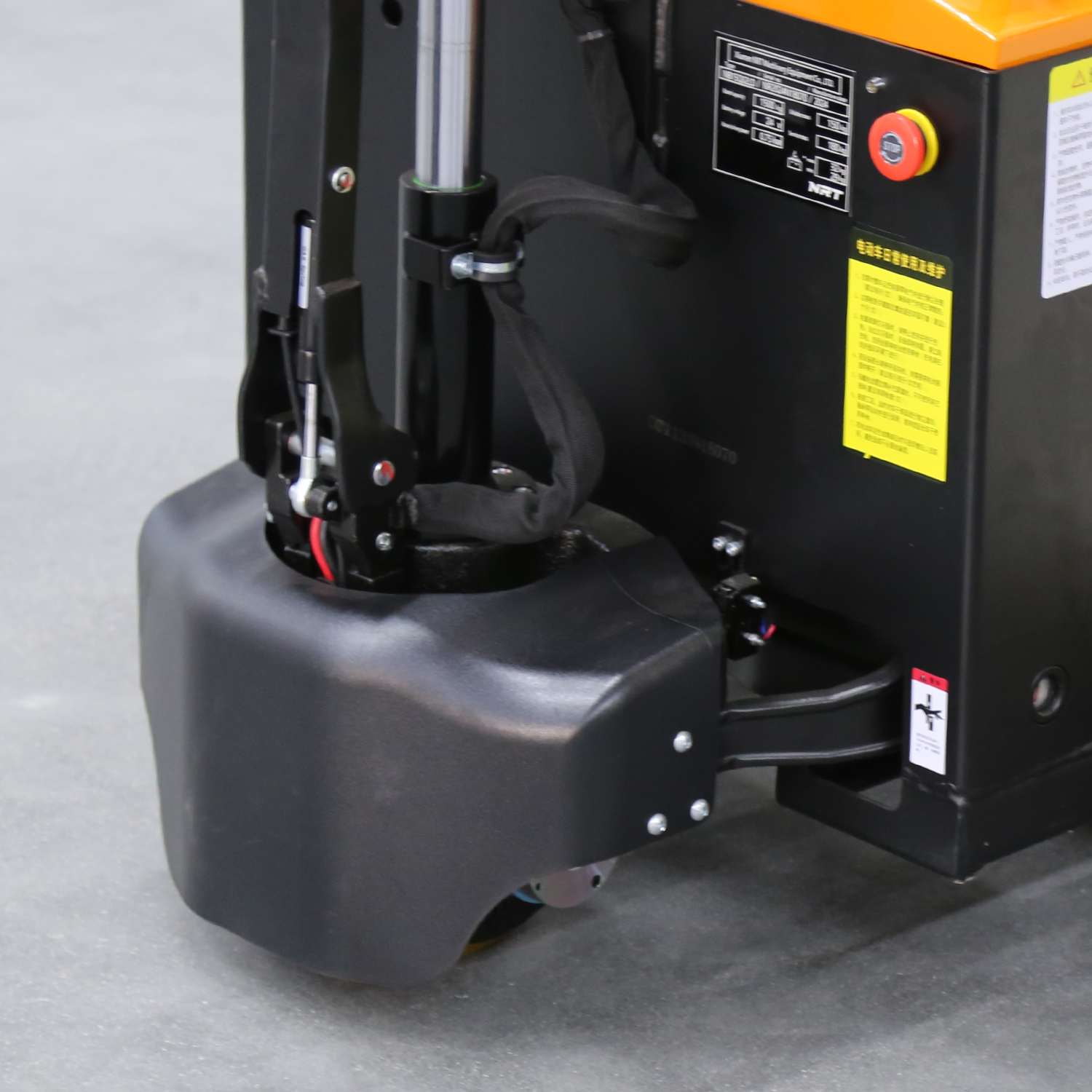

Reinforced fork ensures no deformation under a load of 1.5 tons, reliable and stable. The sturdy metal cover protects the drive unit and also provides foot safety protection. Achieve the best quality and reliability.
Appearance

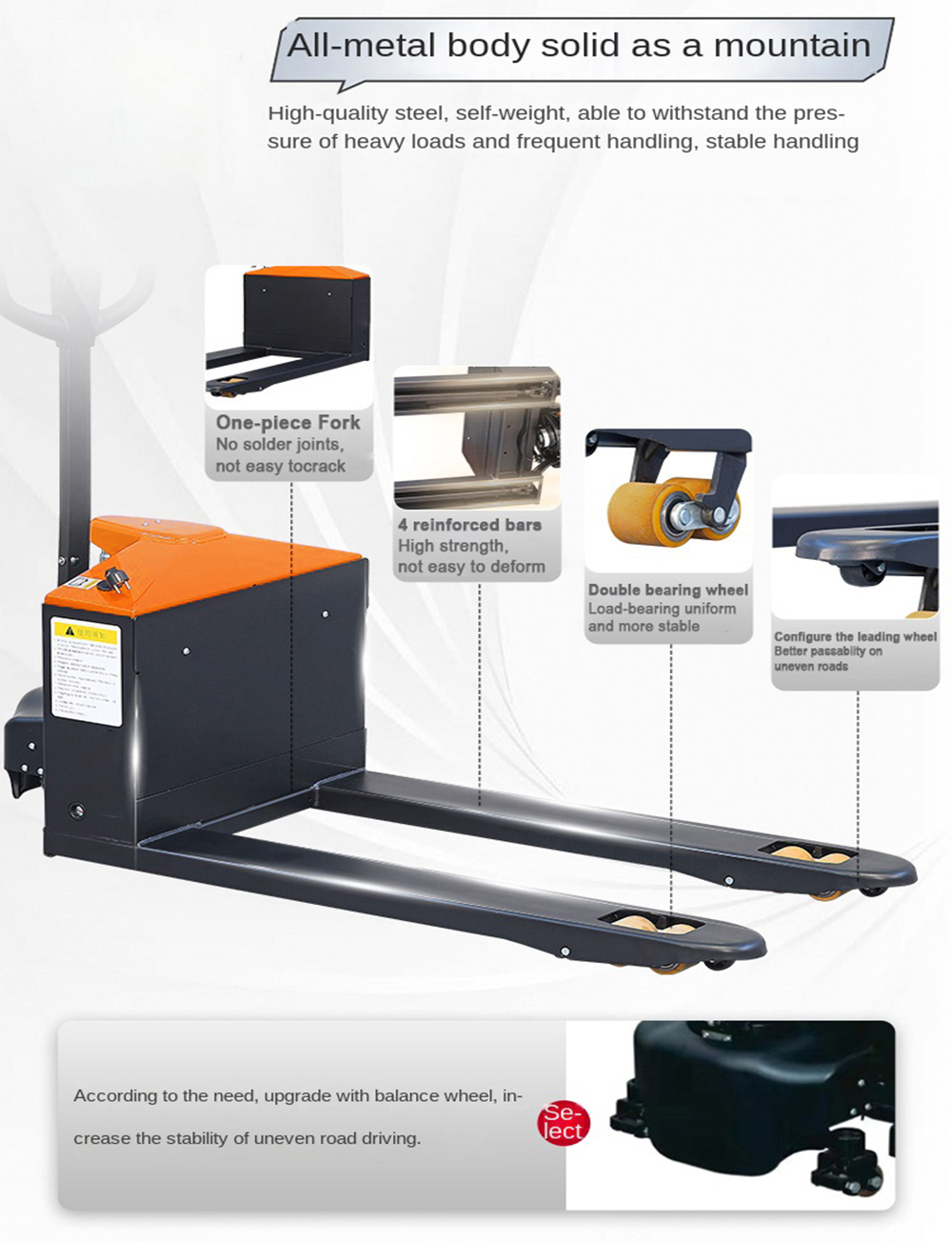

The electric pallet jack adopts an all-metal body, which is as stable as Mount Tai. The size of a single fork is 54x160x1150mm, which can achieve stable handling.

Item	Electric Pallet Truck
Model	NB15Q02LD	NB20Q02LD
Rated load	1500kg	2000kg
Vehicle length	1626mm	1626mm
Vehicle width	560/685mm	560/685mm
Fork size	54x160x1150mm	54x160x1150mm
Fork lowered height from ground	85mm	85mm
Fork raised height from ground	190mm	190mm
Travel speed (full load/empty load)	4.2/4.5km/h	4.2/4.5km/h
Climbing grade (full load/empty load)	6%/15%	6%/15%
Turning radius	1470mm	1470mm
Lead-acid battery	24V/65Ah	24V/85Ah
Weight (Including battery)	180kg	200kg
Number of battery cycles	400time	400time
Charger	24V/10Ah	24V/10Ah
Working time	6h	8h
Charging time	3~3.5h	3.5~4.5h

Unlock more application scenarios

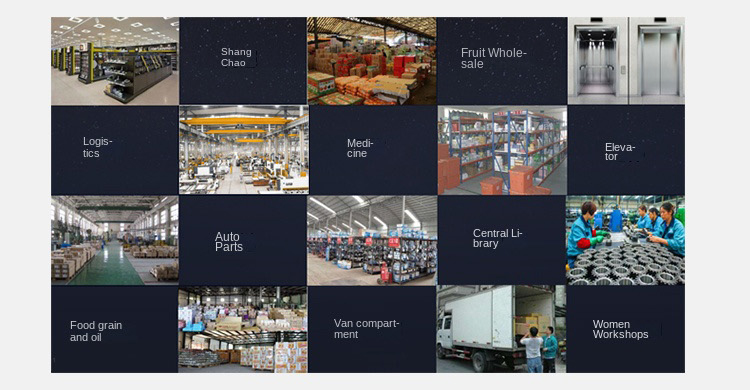

Compact design, wide application, strong power, can be used in more scenarios in life, including supermarkets, fruit wholesale, logistics, medicine, elevators, auto parts, central warehouses, food and oil, truck compartments, female workers' workshops, etc., to meet the use of various scenarios.

Pallet Truck

Use Environment

a) This vehicle is suitable for use on hard and flat ground indoors, not suitable for use on slopes and uneven ground. There should be no bumps, pits, gravel or other debris on the ground that may affect the rolling of the wheels.

b) The altitude should not exceed 1,200 meters;

c) The ambient air temperature should not exceed +40°C and should not be lower than -25°C;

d) When the ambient temperature is +40°C, the relative humidity should not exceed 50%. At lower temperatures, a higher relative humidity is allowed;

e) It is prohibited to use this vehicle in flammable, explosive or corrosive environments such as acids and alkalis.
