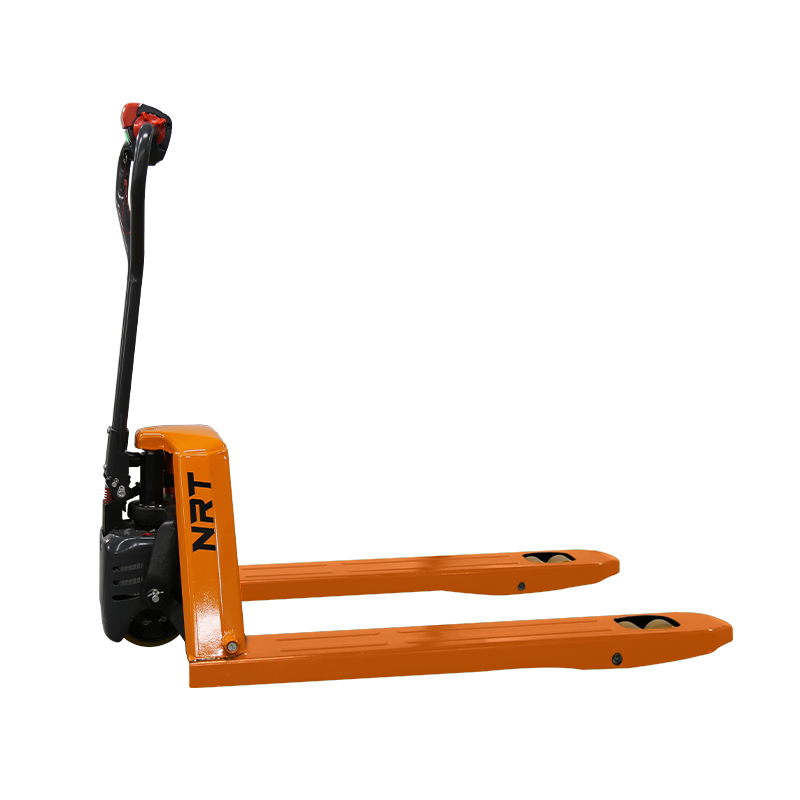

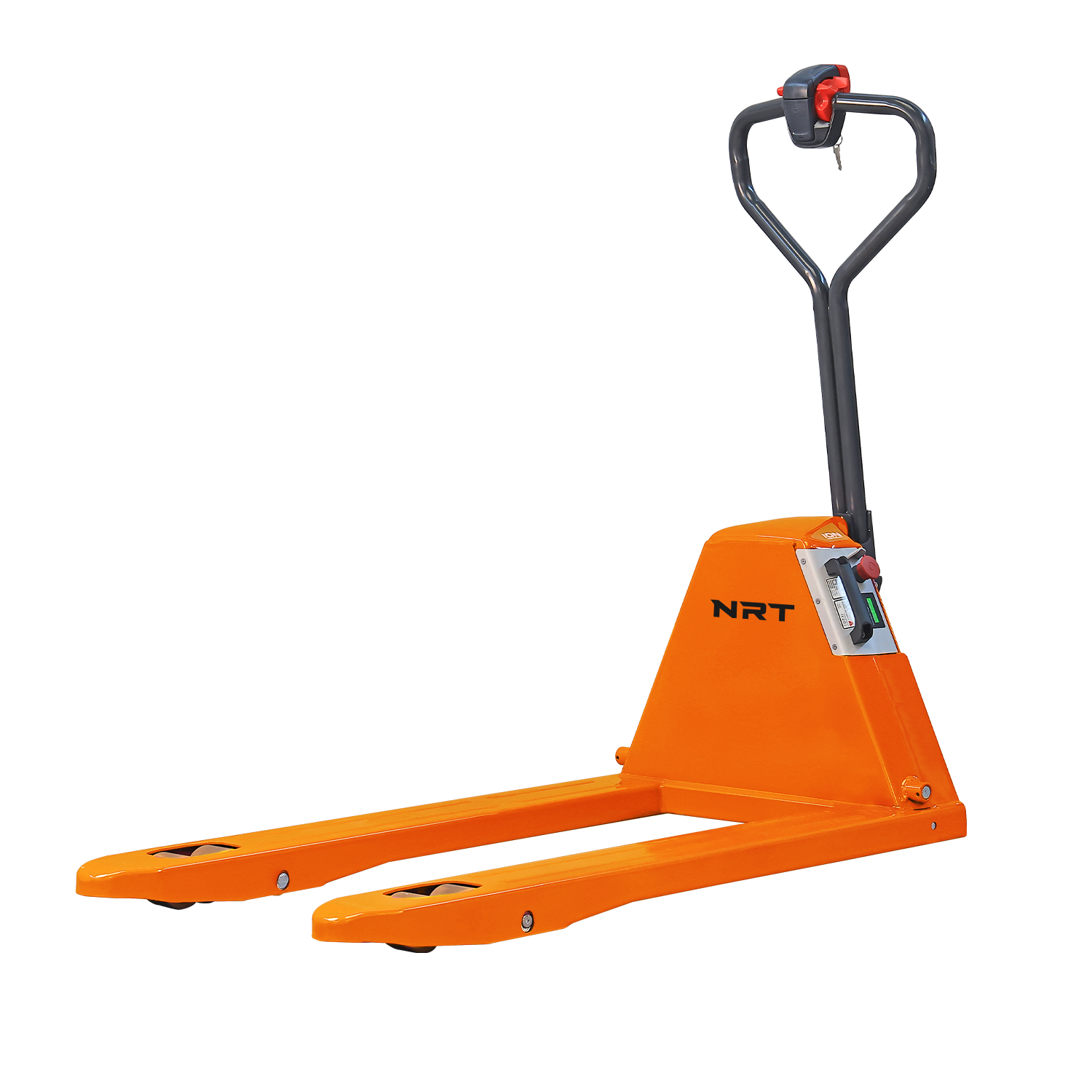

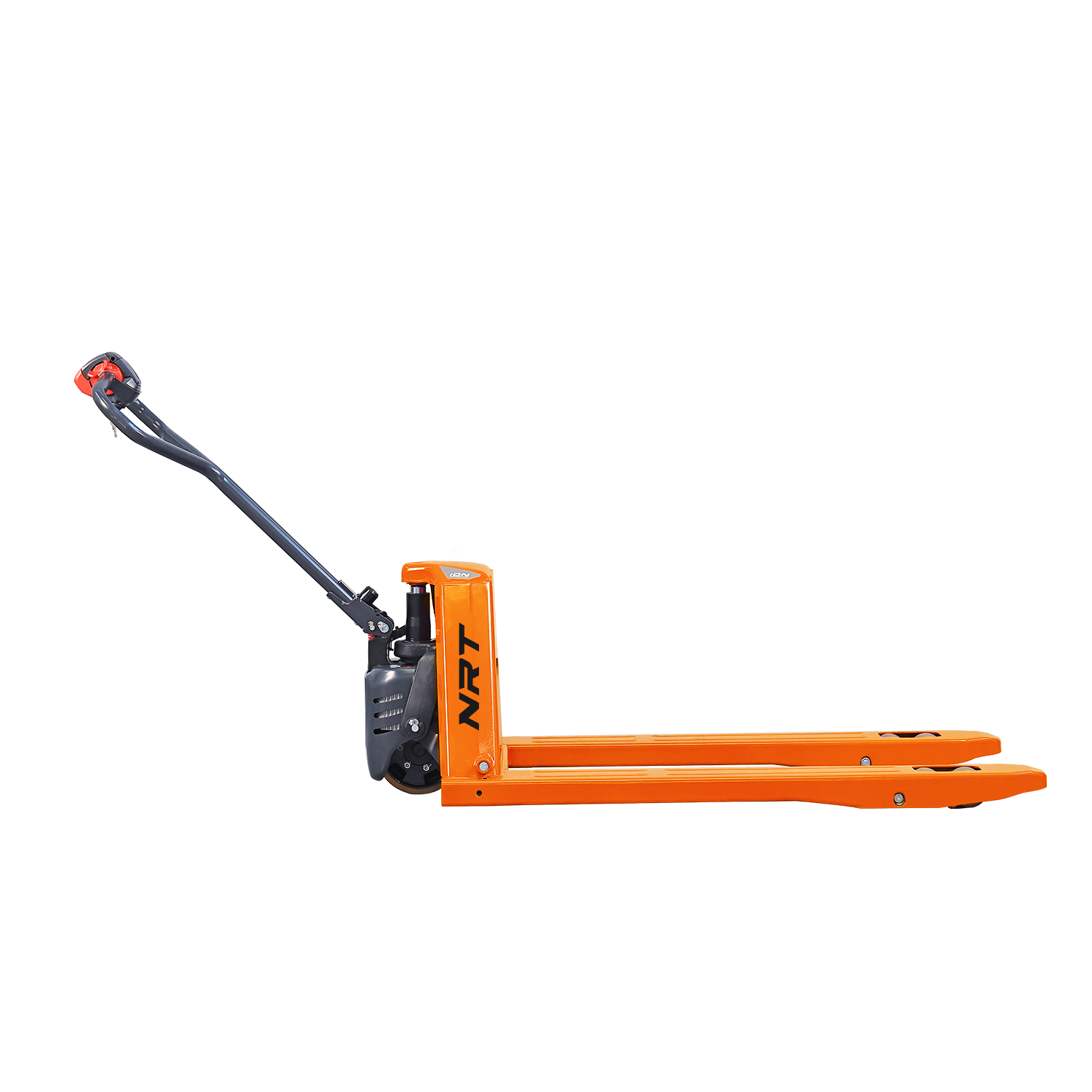

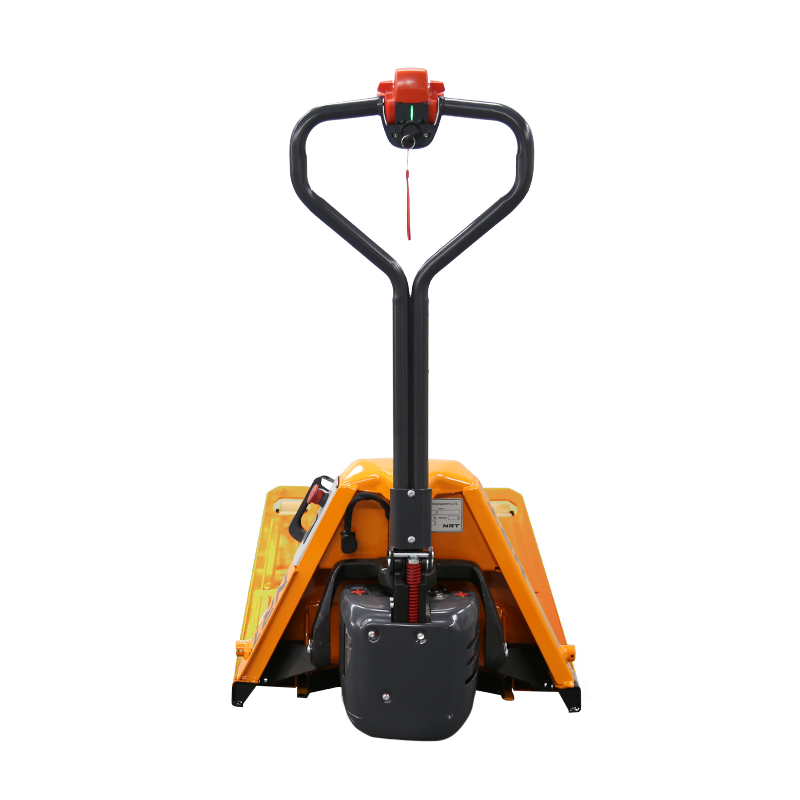

Durable Electric Pallet Truck Lithium Power Pallet Jacks

This lithium pallet truck is our best-selling and practical model, which can operate efficiently and simplify the warehouse handling process, benefiting workers and enterprises.

*Rated Loading: 1500kg~2000kg
*Travel Speed: 5.2km/h
Rated Loading:
Please select
Availability:
Quantity:
  • NB15L01LD

  • NRT


Why you need to choose the lithium pallet truck?


It is worth thinking about what you will focus on when choosing a pallet trucks? Is it its performance or your use needs and the use characteristics of the product?


The performance and use characteristics of the product will make your overall workflow easier and get double benefits during the use of the warehouse. For example, this lithium pallet truck has a new body structure and a stable chassis, and the small turning radius can prevent the foot from hitting the pallet forklift.


High safety performance, the use of integrated pumps and oil-free pipes can reduce some oil leakage risks caused by line connections, and secondly, its motor, which adopts an upright motor drive layout, can prevent more failures.


High quality and Linde's product testing system can ensure the quality of product use and make maintenance relatively easier.


Pallet Truck


Pallet Jack

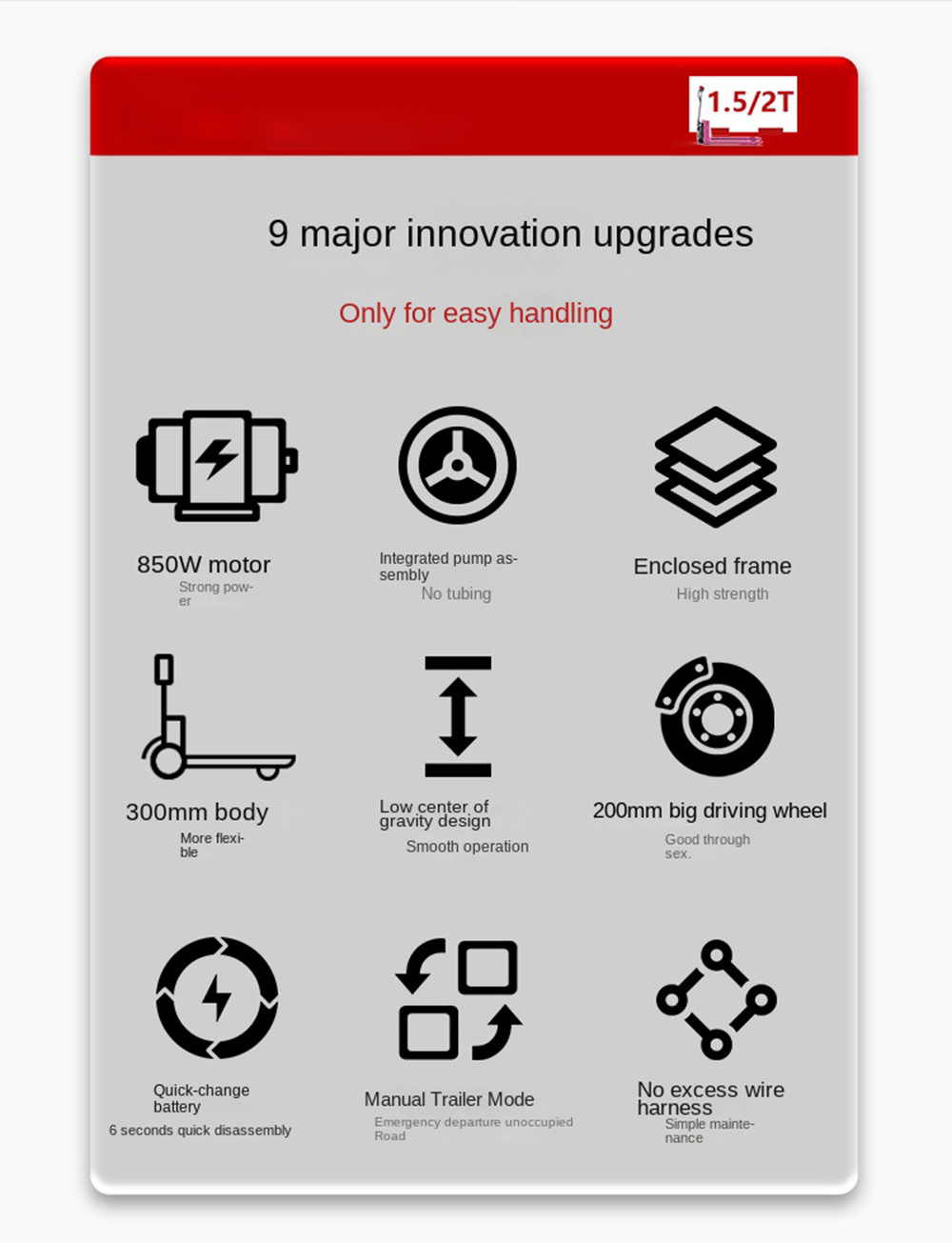

Here are some basic product features:


*48V10Ah/15Ah maintenance-free lithium battery with long battery life (10Ah life: about 800 times, 15Ah life: about 800 times)

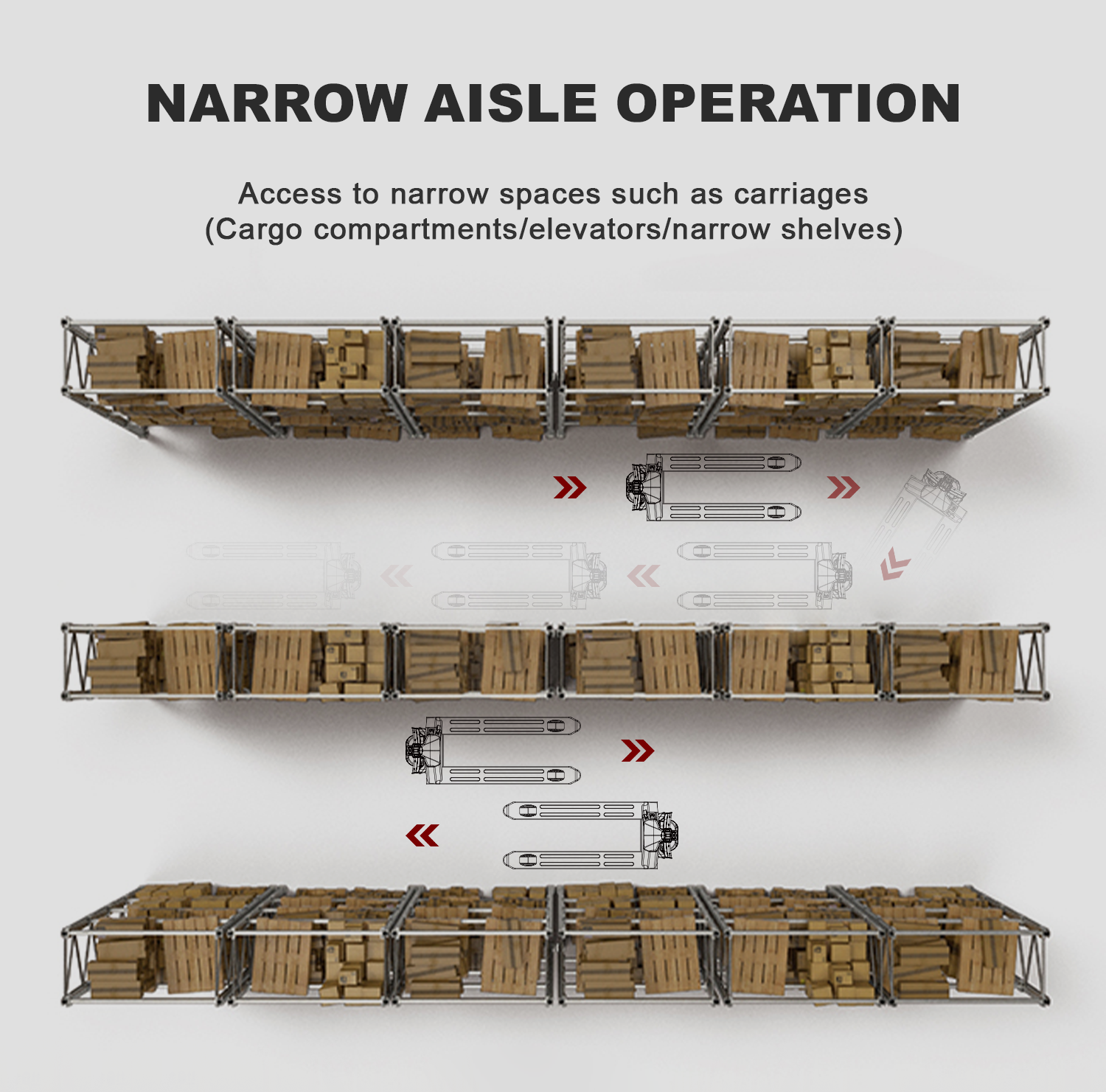

*Upright walking, easy to get in and out of small spaces

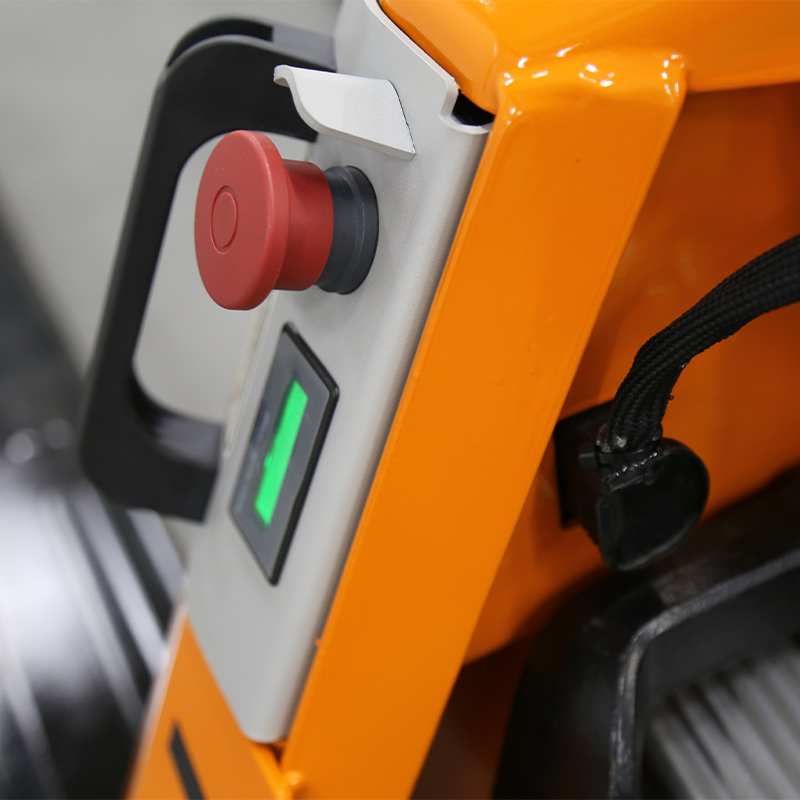

*Centralized multi-function tiller head, one-button multi-directional control and use

*Three-speed speed adjustment to meet the needs of various scenarios

*High power 850W high-power motor, no pressure on climbing and unloading

*The metal shell has high strength and strong extrusion resistance, and the surface anti-friction stickers prevent battery damage caused by vehicle vibration.

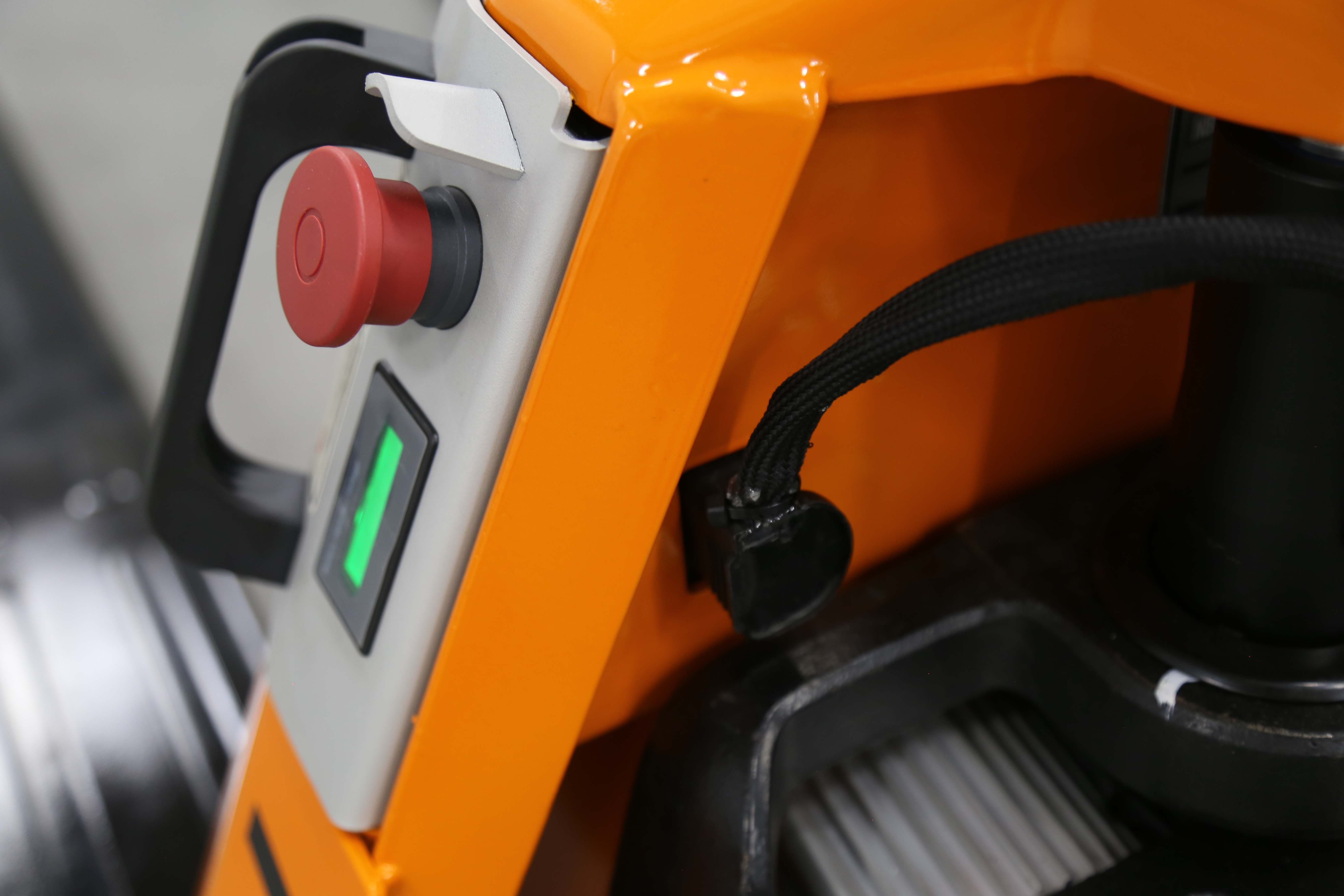

*The side-pull battery layout is adopted, and the lithium battery is quickly charged

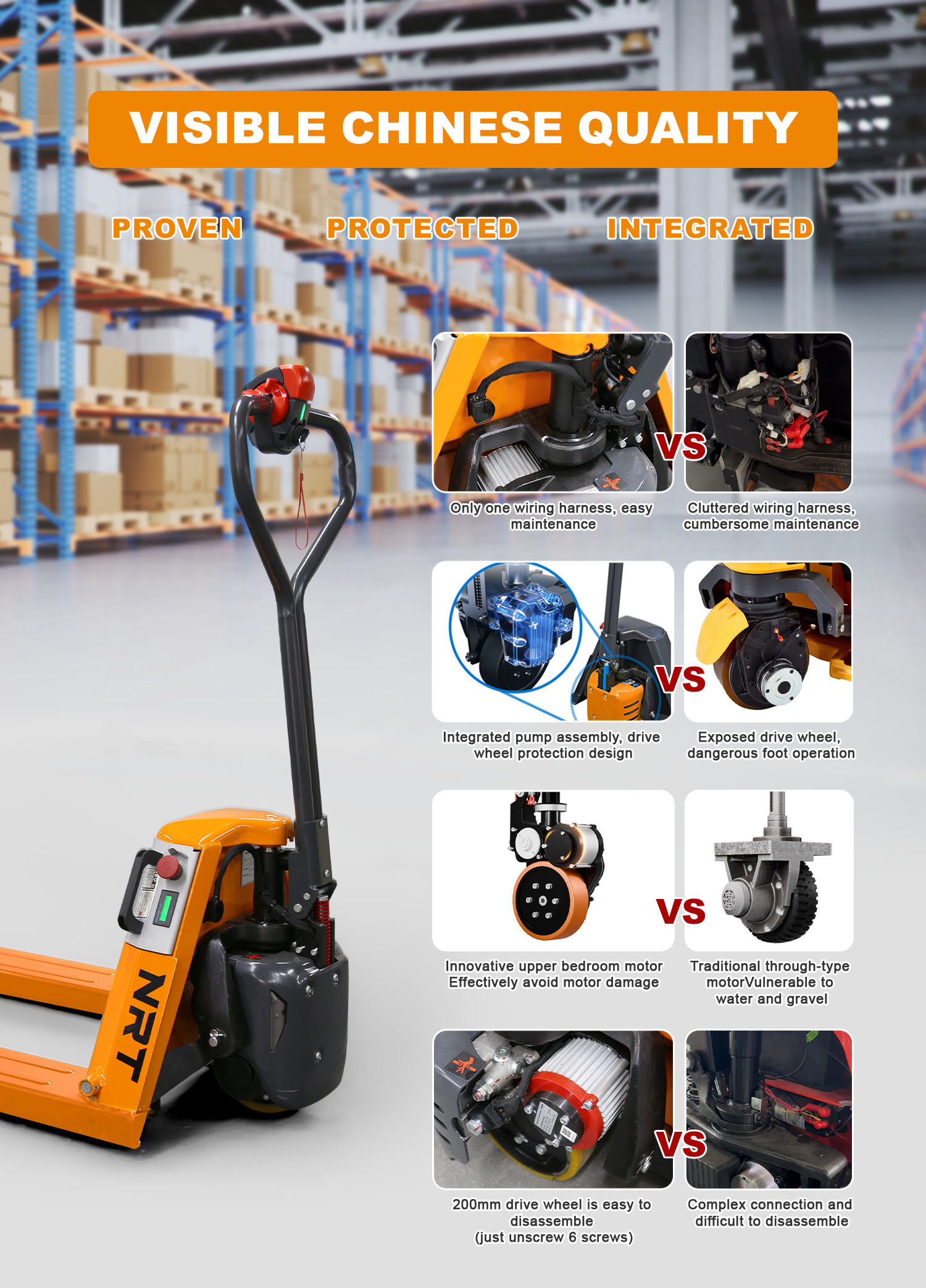

*Using a minimalist design, the front and rear frames are connected by only one thick cable. The short wiring harness stroke can also reduce the occurrence of faults, and it can be used even in low-temperature outdoor environments.

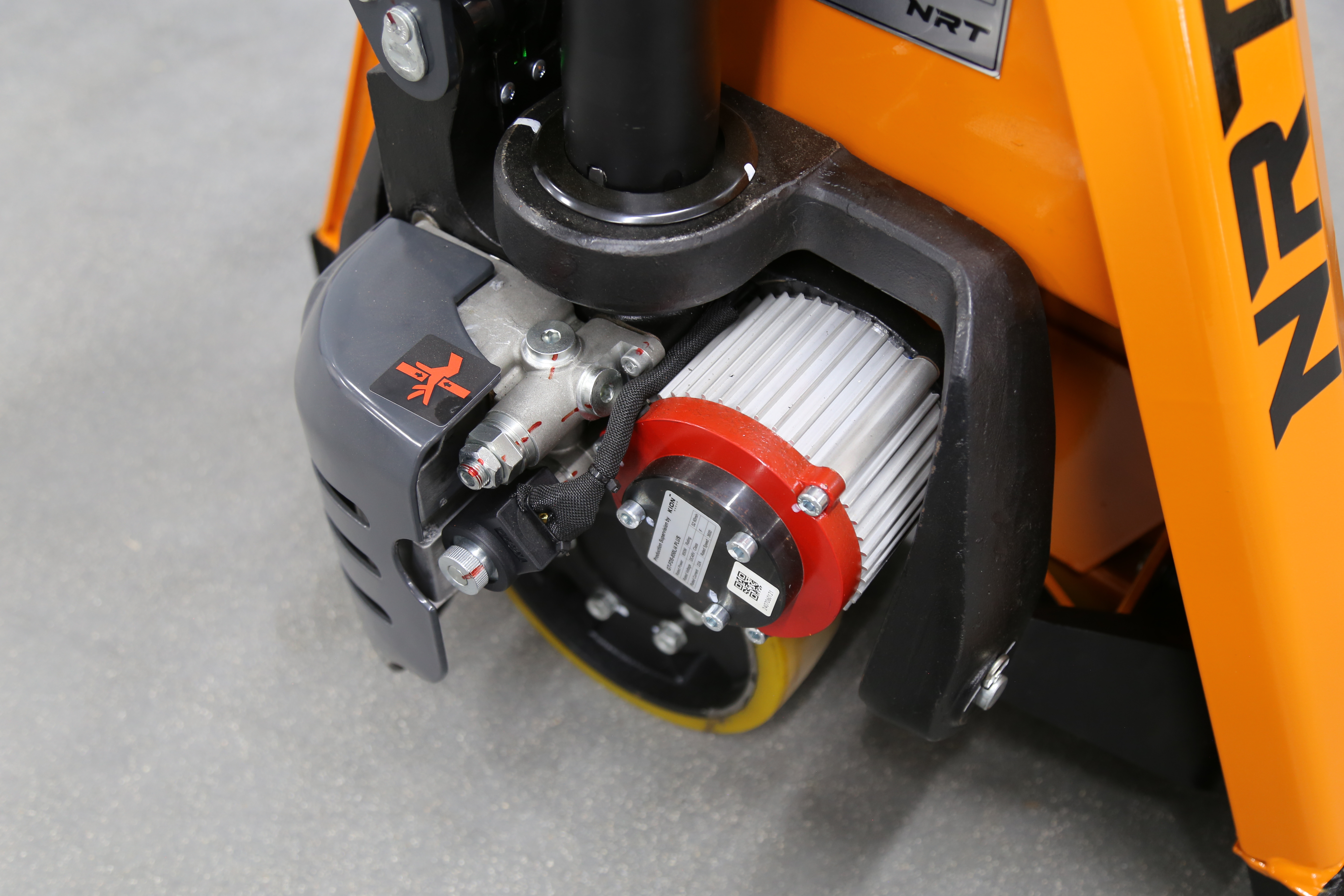

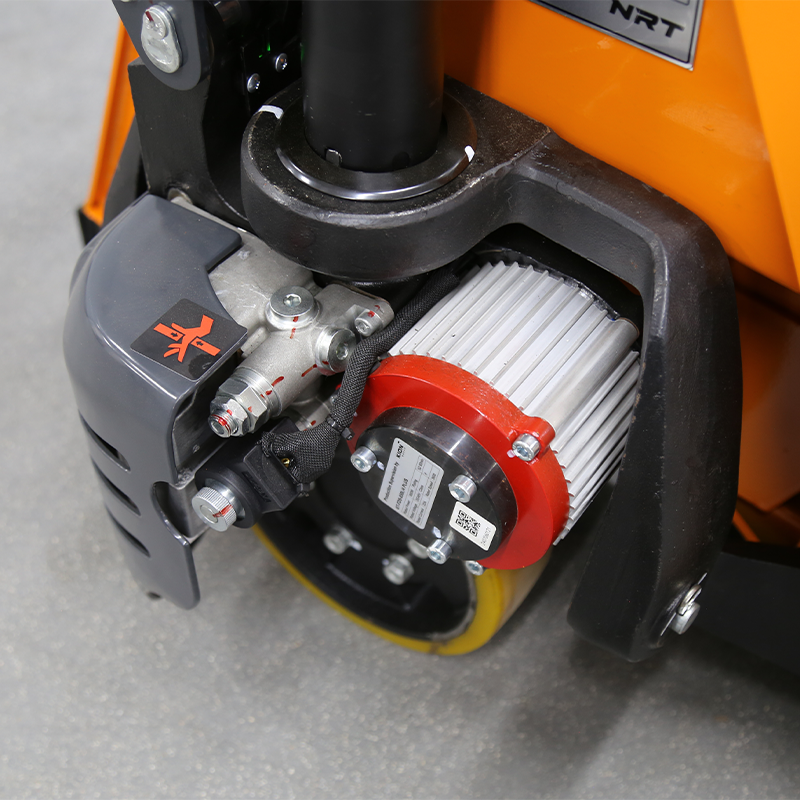

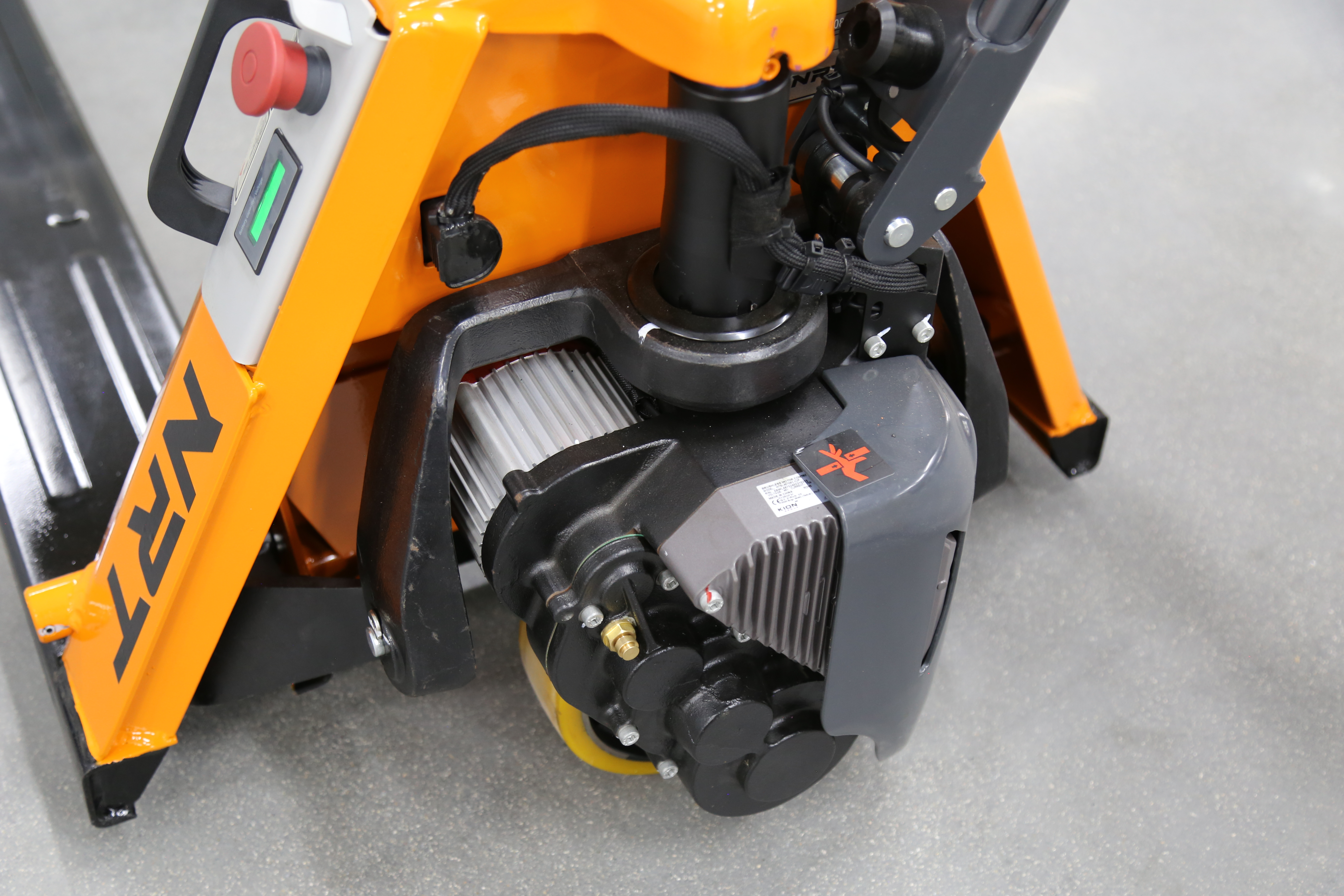

*The upper bedroom drive layout increases the gap between the ground and reduces the impact of gravel scratches, accumulated water and dust on the motor, and has better waterproof and dustproof performance


Electric Pallet Truck


Electric Pallet Jack


Electric Pallet Jack




Item Electric Pallet Truck Lithium Pallet Jacks
Model NB15L01LD NB20L01LD
Travel speed (full load/empty load) 5.2km/h 5.2km/h
Rated load 1500kg 2000kg
Vehicle width 560/685mm 560/685mm
Fork size 55x150x1150mm 55x150x1150mm
Vehicle length 1450mm 1450mm
Load center distance 600mm 600mm
Lifting height up to 115mm 115mm
Fork height from ground 80mm 80mm
Climbing grade (full load/no load) 9%/20% 8%/20%
Turning radius 1245mm 1245mm
Weight (including battery) 107kg 112kg
Lithium battery 48V/10Ah 48V/15Ah
Charger 48V/2.5Ah 48V/5Ah
Working time 2-3h 3-3.5h
Charging time 3-4h 2-3h
