80V Lithium Battery Electric Counterbalance Forklift Truck

The 80V lithium battery electric counterbalance forklift truck simplifies handling and completes the work reliably and easily. With a lifting capacity of 3000~3500kg and a large motor of 13.6kw, it is an energy-saving new lithium battery electric forklift that is perfect for any warehouse and paper industry, supermarket or food industry.
Rated Loading:
Please select
Body Length (excluding forks):
Please select
Availability:
Quantity:
  • NZ30Q02LD

  • NRT

Special Features
1
3000~3500kg lifting capacity
2
13.6kw large drive motor
3
5/6 hours of battery life
4
High Power AC Motor

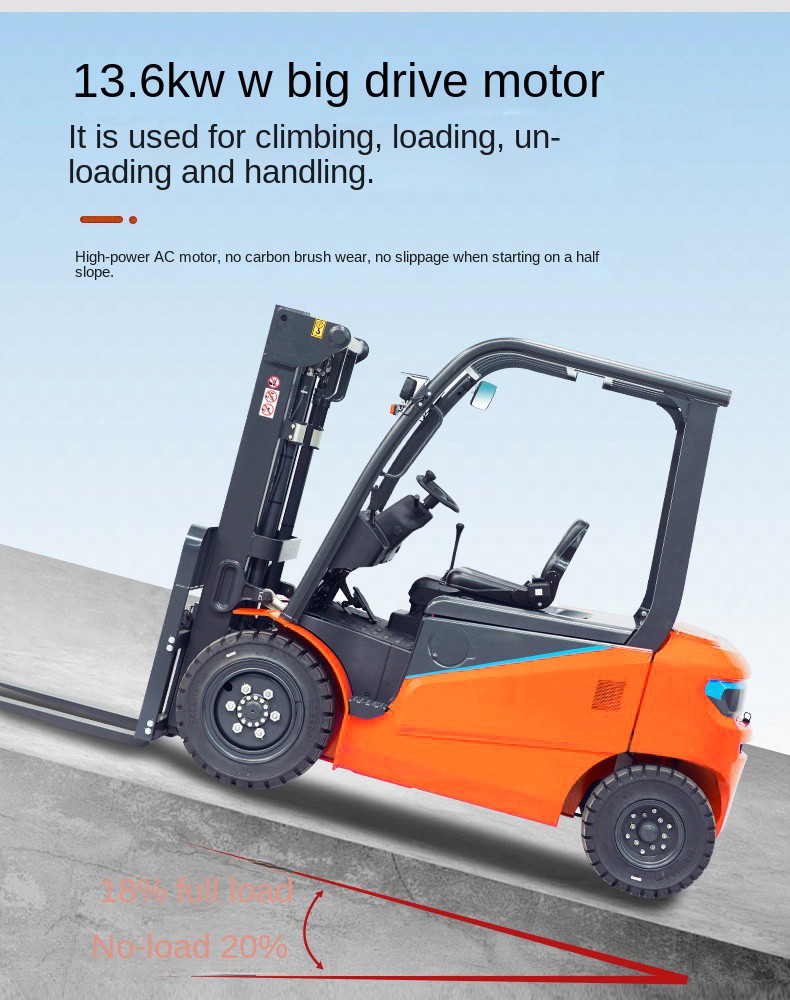

At the same time, it has a high-power AC motor system. When climbing a slope, it can reach 18% when fully loaded and 20% when unloaded. There is no carbon brush wear, and it will not slip even if it is temporarily started on a slope. It is safe and stable.


At NRT, we understand the importance of keeping your operations running at optimal performance. When you use an electric forklift, you will consider the environment, diverse use, and sustainable solutions to ensure that the value of the product can power your operations year after year. This 80V lithium battery electric counterbalance forklift truck has high-quality lithium batteries and a variety of battery capacities, a 5-year or 10,000-hour warranty, and can meet a variety of different working conditions to meet your usage and energy needs.


Electric Forklilft Truck

Electric Forklilft Truck


Lithium Battery Electric Counterbalance Forklift Truck Features


1. Comfortable and efficient

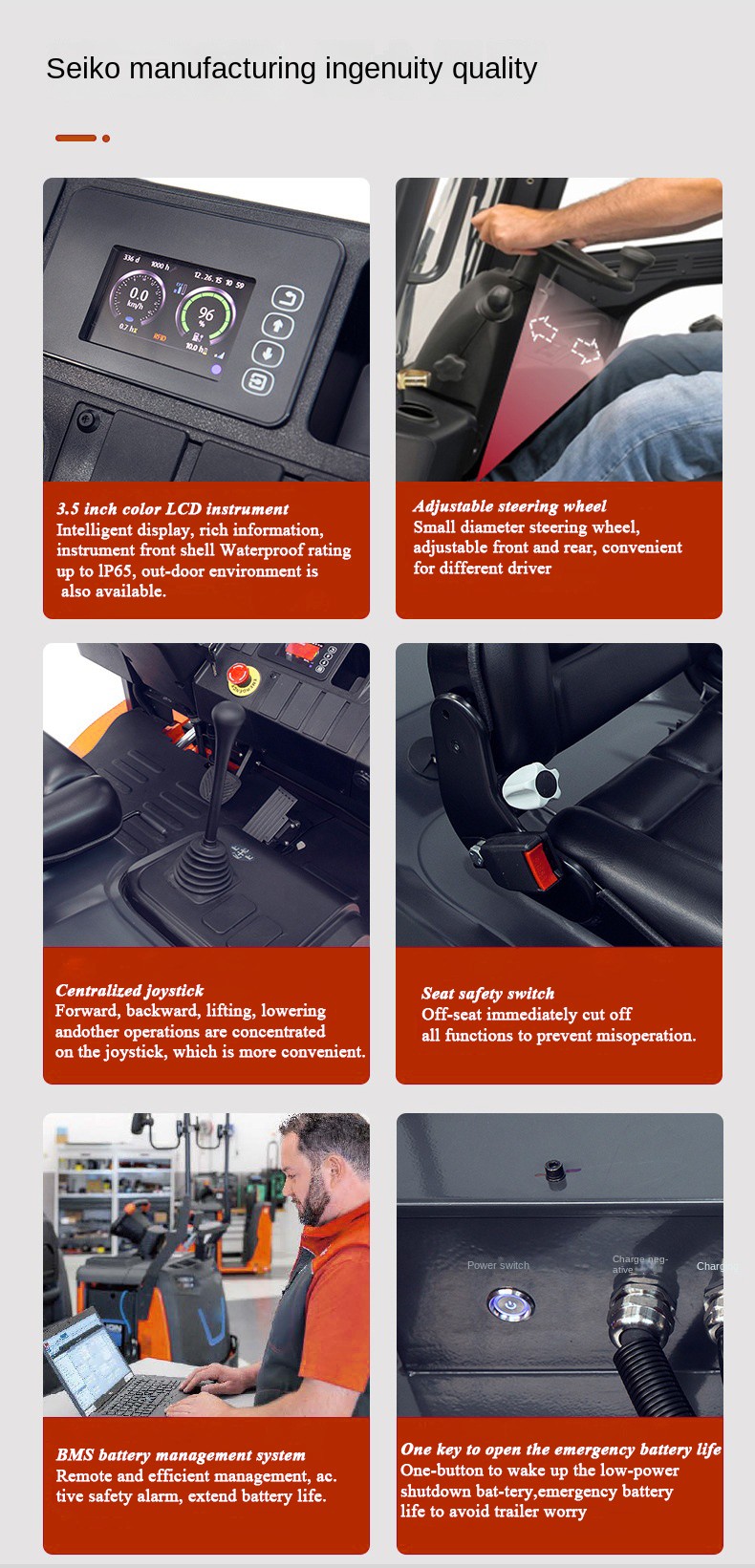

The electric counterbalance forklift is equipped with a 3.5-inch color LCD instrument with intelligent display, which can clearly and intuitively see the display information. The waterproof level of the front shell of the instrument can reach IP65, and it can also be used in outdoor environments. The centralized joystick can centrally operate forward, backward, lifting, lowering and other operations, which is more convenient and quick. Equally important, it is equipped with a high-quality seat, so that the operator will not feel too tired even during long shifts.


2. Main safety functions


The safety system of the electric counterbalance forklift includes a BMS battery management system, which can be remotely and efficiently managed, actively alarm safety, and extend battery life. With the seat safety switch, all functions will be cut off immediately when the operator leaves the seat to prevent misoperation.


*One-button emergency endurance

*One-button wake-up of low-power shutdown batteries, emergency endurance eliminates trailer worries


3. Maintainability


Made of high-quality and precision-made earring-type structure, the battery has low maintenance costs and can provide intuitive and reliable performance in daily work. The battery also provides protection against overcharge and overheating, and does not require frequent maintenance and replacement. However, if maintenance is required, the maintenance process will be very fast and simple, reducing maintenance costs.


Electric Forklilft


Item
Electric Counterbalance Forklift Truck
Model
NZ30Q02LD
NZ35Q02LD
Power
Lithium battery
Tire
Pneumatic tire
Rated load (kg)
3000
3500
Rated center distance (mm)
500
Weight (kg)
4990
5440
Body length (excluding fork)
2667
2738
Body width (mm)
1268
Body height (mm)
2230
Fork size (mm)
1200x122x45
Turning radius (mm)
2330
2400
Endurance time
5-6h
Charging time
2-3h
Gradability (full load/empty load)
18%/20%
16%/20%

Widely Used In All Walks Of Life
