| Rated Loading: | |
|---|---|
| Height of mast, extended: | Please select |
| Quantity: | |
NQ14Q01LD
NRT

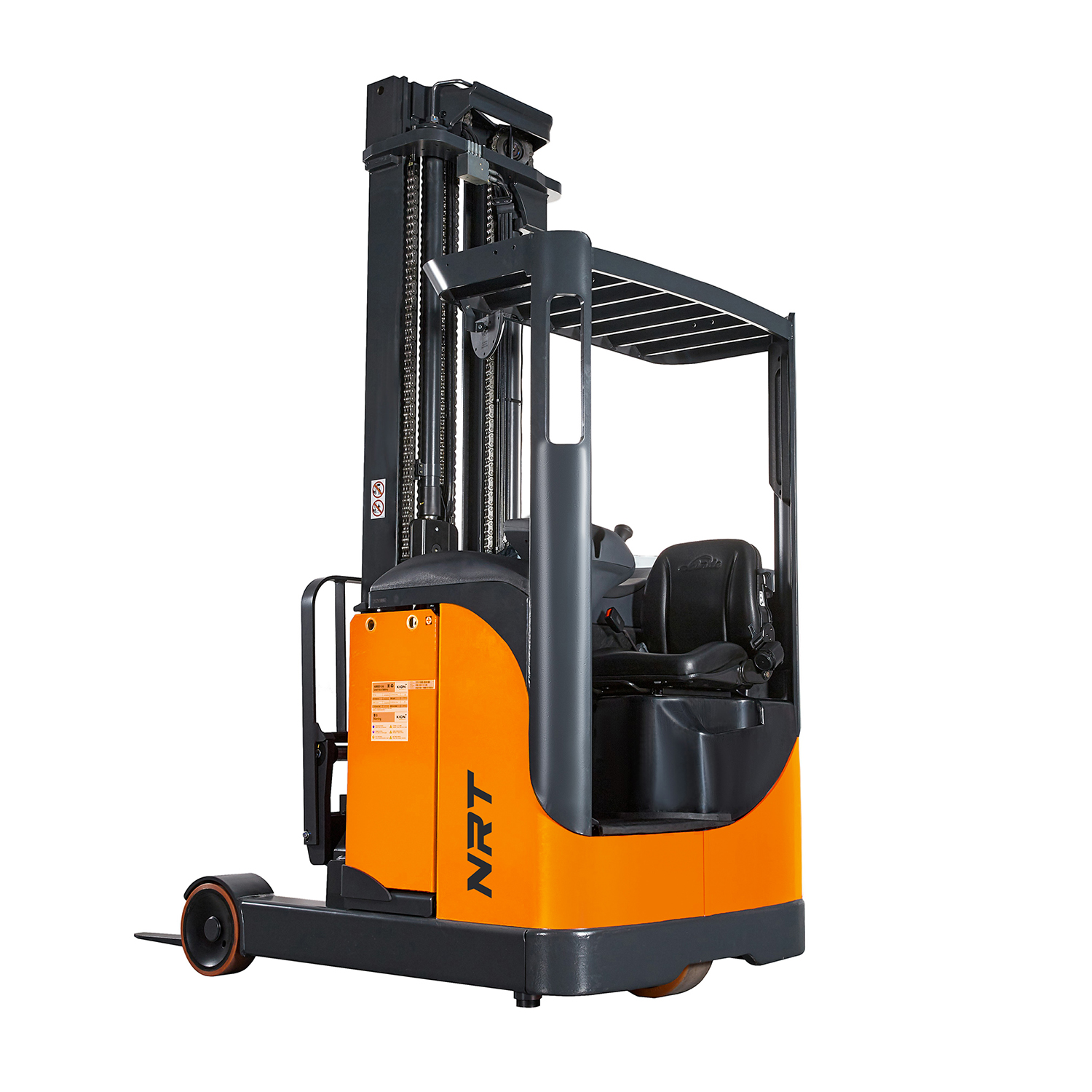

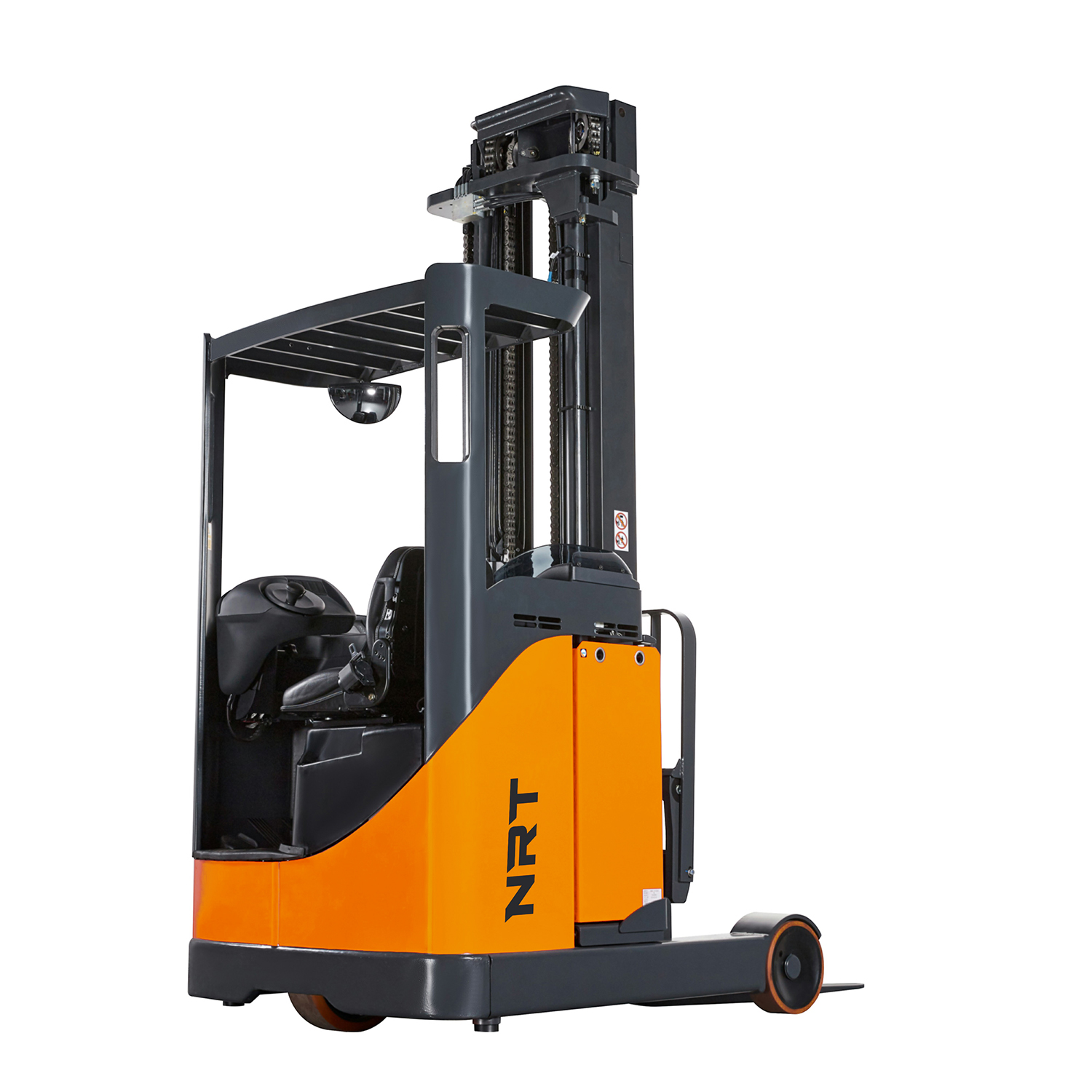

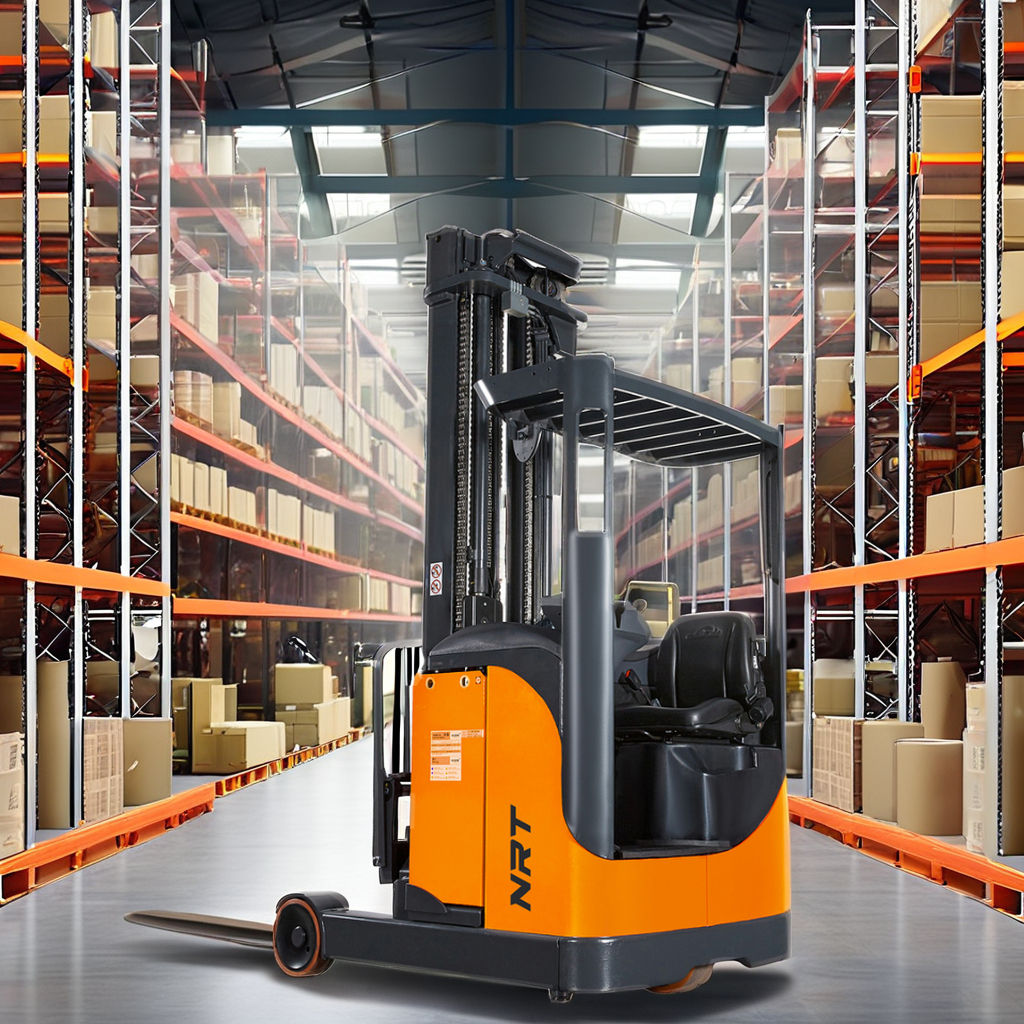

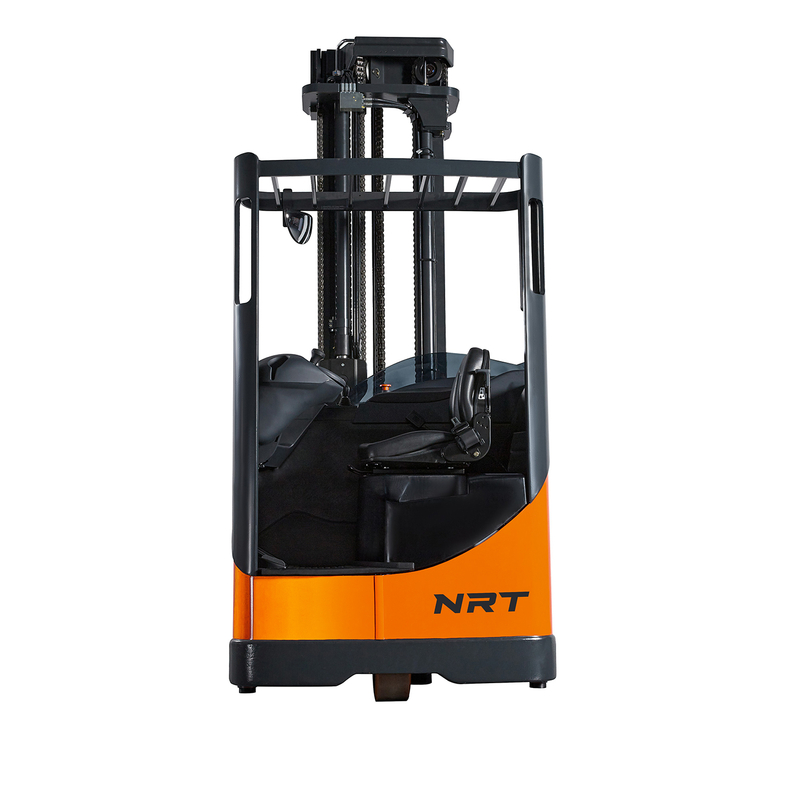

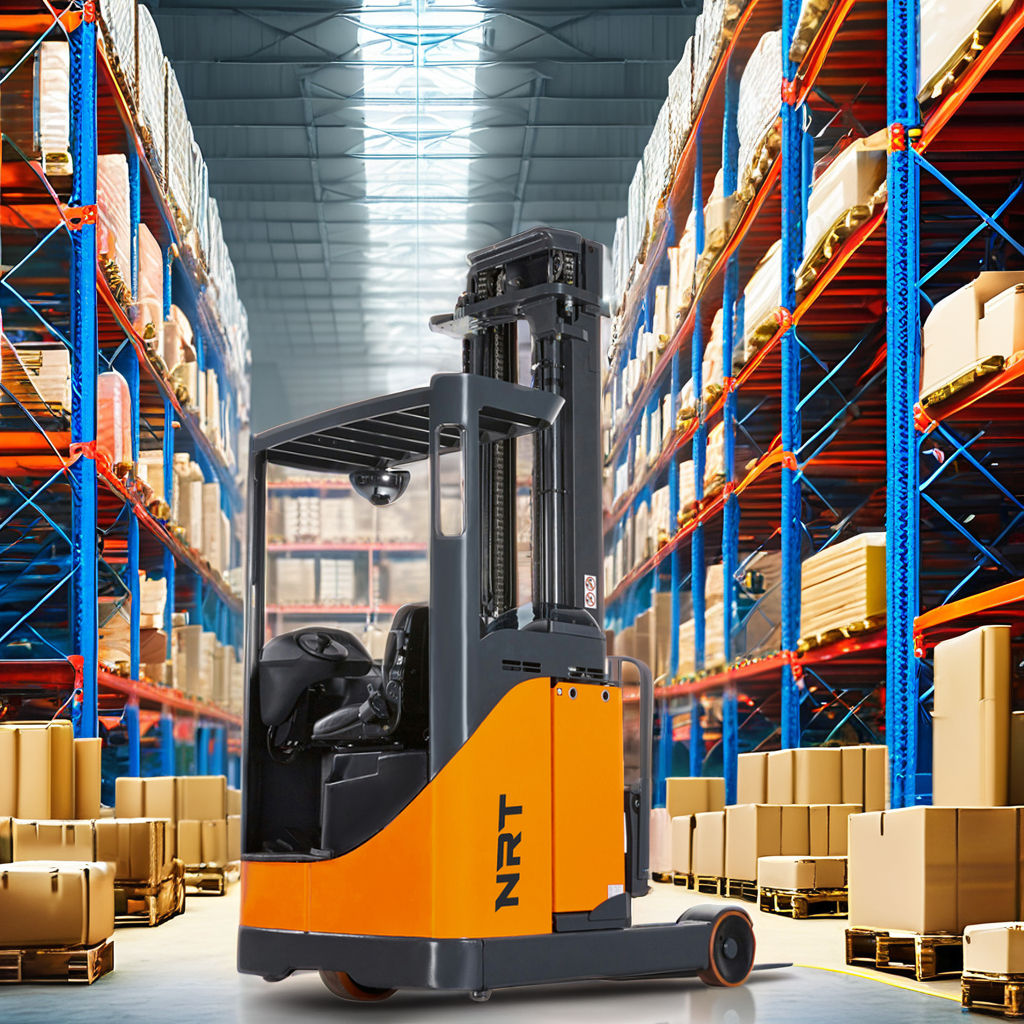

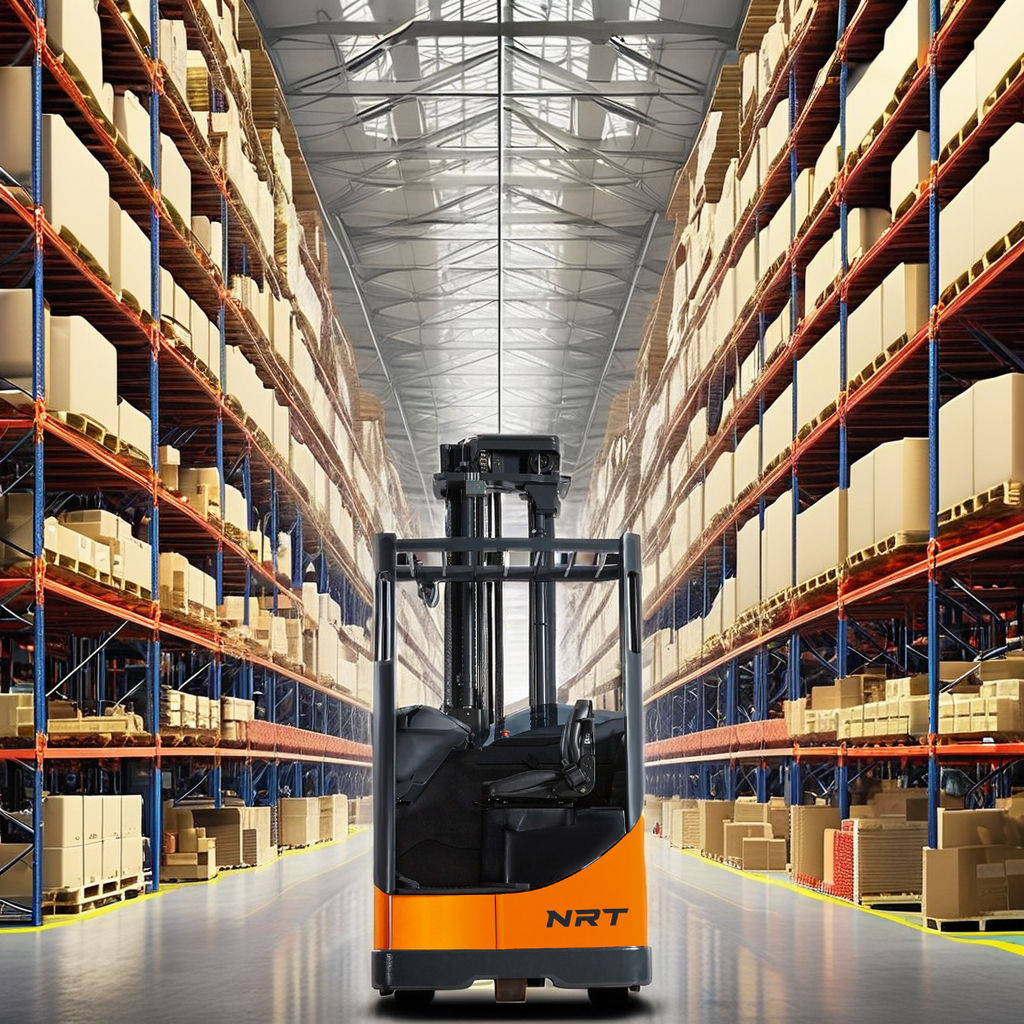

This moving mast reach truck is a classic model with selected warning lights and upgraded three-stage masts, plus a long-lasting lithium battery, which can meet the requirements of energy saving, emission reduction and efficient operation.
With a comfortable driving integrated operating system and a standard instrument panel display, the operator will not be tired even if he works all day, and can also reduce the risk of neck and shoulder strain, and can position the fork faster and more accurately.
The height of mast can be extended to 6495mm at most, with a load speed of 13.5km/h. For some warehouses that are constantly building upwards, this mobile mast reach truck can operate in narrow spaces, easily and efficiently, and perfectly meet your operational needs. It is widely used in various industries.
Special features
*Maximum lifting height can reach 6495mm
*Ergonomic seat design
*Rated load 1400-1600kg
| Item | Moving Mast Reach Truck | ||
| Model | NQ14Q01LD | NQ16Q01LD | NQ20Q01LD |
| Rated load | 1400kg | 1600kg | 2000kg |
| Weight | 2890kg | 2940kg | 3260kg |
| Height of mast, lowered | 2476mm | 2476mm | 2910mm |
| Free lift | 1627mm | 1627mm | 2061mm |
| Lift | 5755mm | 5755mm | 5755mm |
| Height of mast, extended | 6495mm | 6495mm | 6495mm |
| Height of overhead guard (cabin) | 2110mm | 2110mm | 2110mm |
| Height of seat, min/max | 940/1030mm | 940/1030mm | 940/1030mm |
| Height of reach legs | 310mm | 310mm | 373mm |
| Overall length | 2407mm | 2411mm | 2483mm |
| Length to fork face | 1257mm | 1261mm | 1333mm |
| Overall width | 1234/1250mm | 1234/1250mm | 1234/1250mm |
| Fork dimensions | 100x45x1150mm | 100x45x1150mm | 100x45x1150mm |
| Turning radius | 1540mm | 1640mm | 1775mm |
| Length of chassis | 1638mm | 1748mm | 1911mm |
| Travel speed, with/without load | 13.5km/h | 13.5km/h | 13.5km/h |
