1.5 Ton Electric Walkie Pallet Stacker

NRT's electric Walkie pallet stacker is an adjustable and stackable solution for warehousing, a versatile lift that can meet your various application needs.
Rated Loading:
Please select
Availability:
Quantity:
  • ND15Q01LD

  • NRT

The electric Walkie pallet stacker has a lifting capacity of up to 1500kg and three lifting heights, including 1510/2410/2910mm, to meet various shelf stacking requirements. NRT's electric Walkie pallet stacker is an economical and durable solution that can achieve electric walking and electric stacking, helping you improve the profit and work efficiency of your operation.

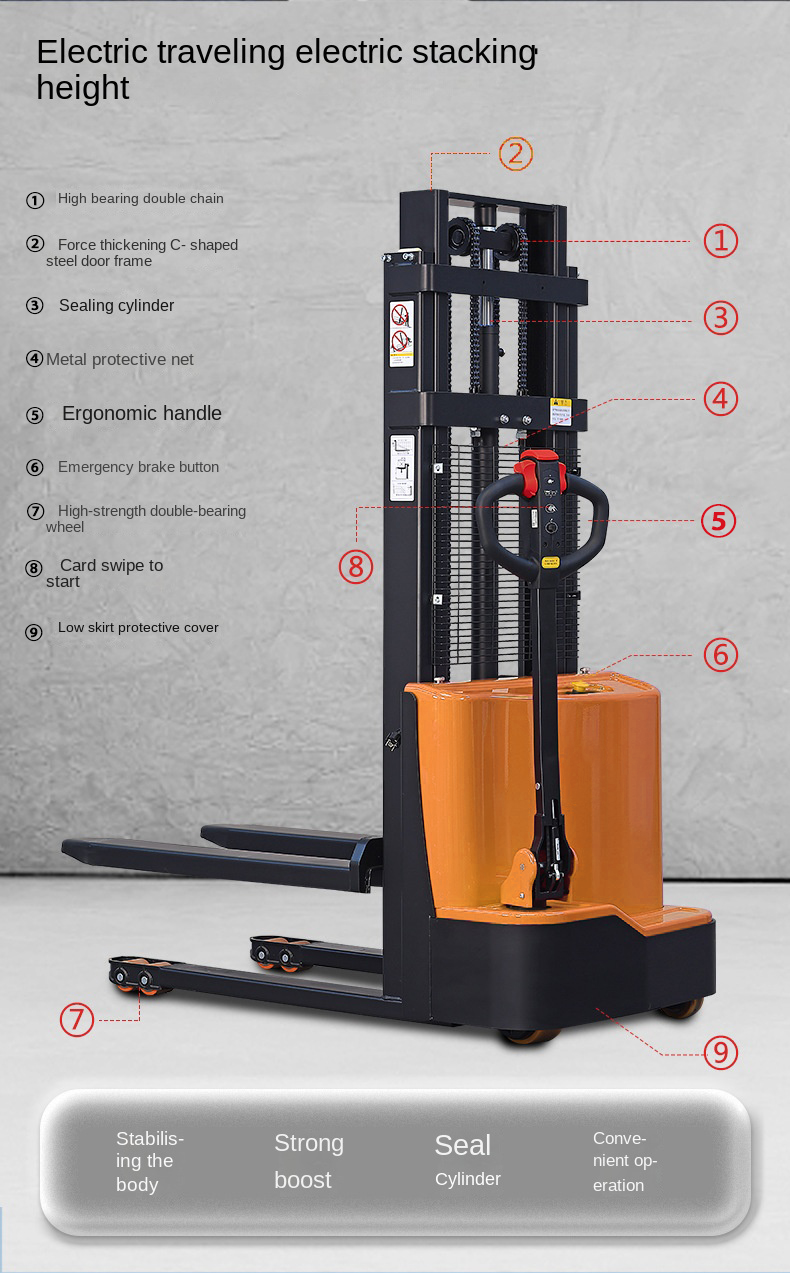

In terms of use, it uses selected high-quality thickened "C" steel and double chain design, making the overall load capacity more stable and strong, and with a four-point structure, the stacking will be more stable. It is standardly equipped with a humanized centralized tiller head, and the forward and backward operations are all concentrated together. The tiller is equipped with a card swipe start device, allowing the operator to operate easily and safely.


Secondly, its battery has a 24V/85Ah lead-acid battery with long-lasting endurance and stable power output, which can meet the requirements of long-term and multi-shift operations.


Special functions


*1500kg lifting capacity

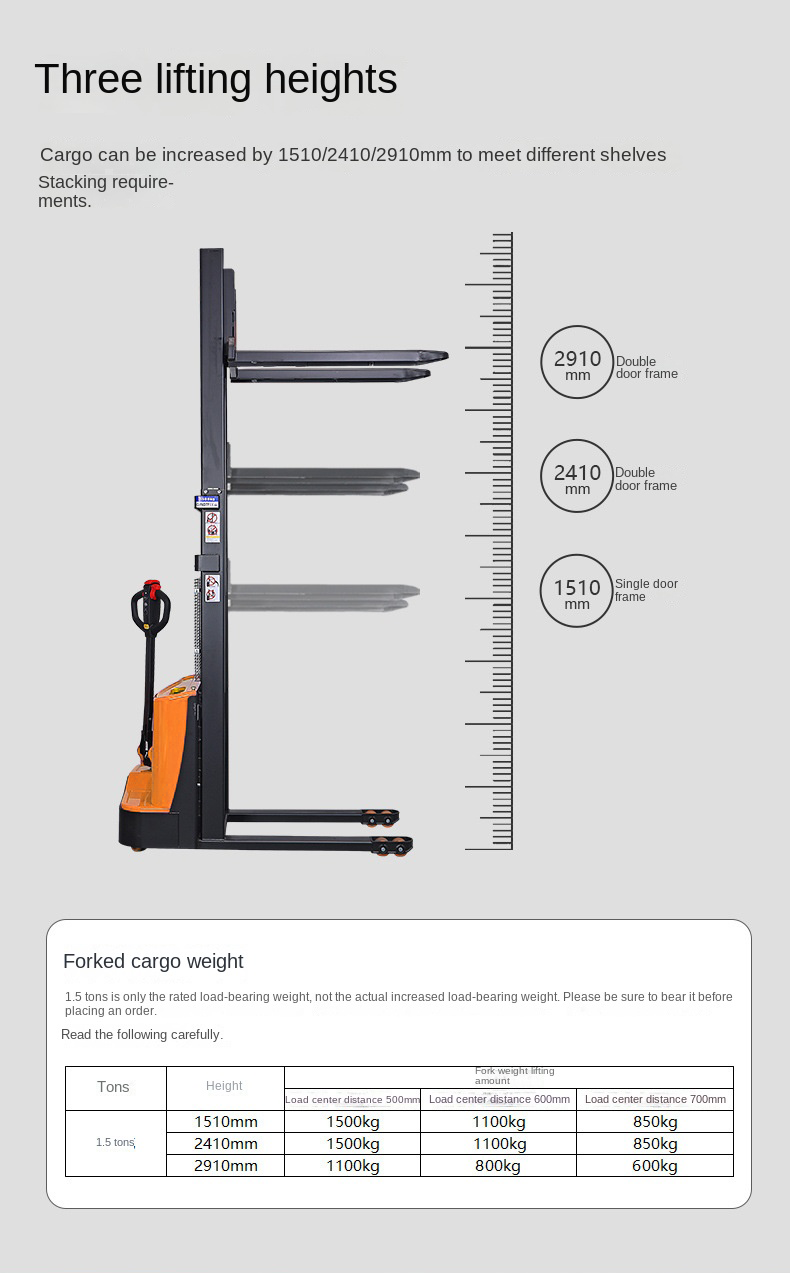

*Three lifting heights of 1510/2410/2910mm

*24V/85Ah lead-acid battery


Pallet Stacker

Item Electric Walkie Pallet Stacker
Rated Load 1500kg
Fork Size 60x142x1150mm
Height Of Fork From Ground 90mm
Weight 470kg
Driving speed(full load/no load) 3.5/4km/h
Climbing grade (full load no load) 3%,10%
Turning radius 1357mm
Lead-acid battery 24V/85Ah
Battery Cycle Times 400 times
Charger 24V/10Ah
Charging Duration 8h


1.Reliability


Using selected high-quality steel, it is strong and durable. The solid chassis and cast steel rear skirt ensure a long service life in heavy-duty applications.


The Walkie Stacker also has an optional maintenance-free battery option with long-lasting battery life to keep your operation going.


2.Key safety features


The Walkie Stacker has a sealed cylinder design, which allows smooth lifting and lowering without sticking. There will be no oil leakage during operation, which is more worry-free.


Pallet Stacker
