The upgraded mast setting has more lifting height options and is suitable for more working conditions.
| Rated Loading: | |
|---|---|
| Lift: | |
| Availability: | |
| Quantity: | |
NQ14Q01LD
NRT

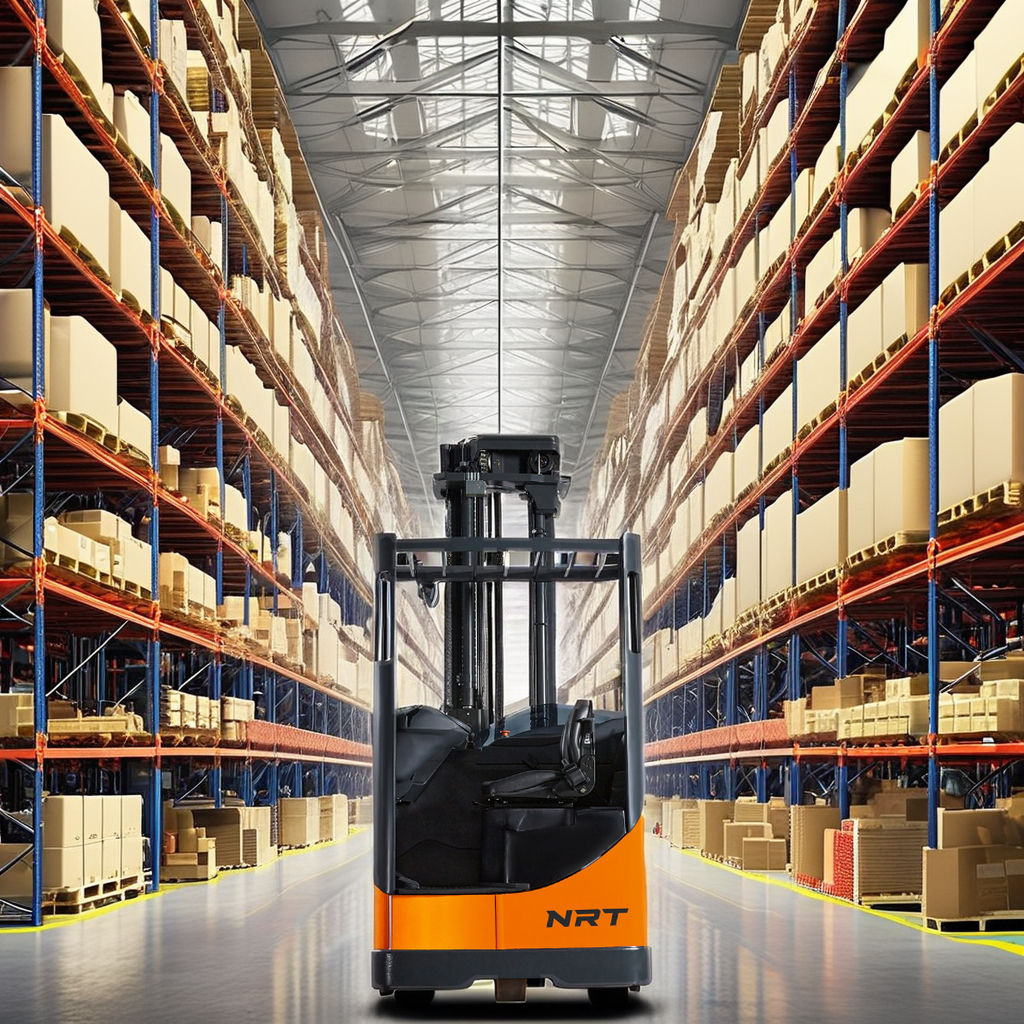

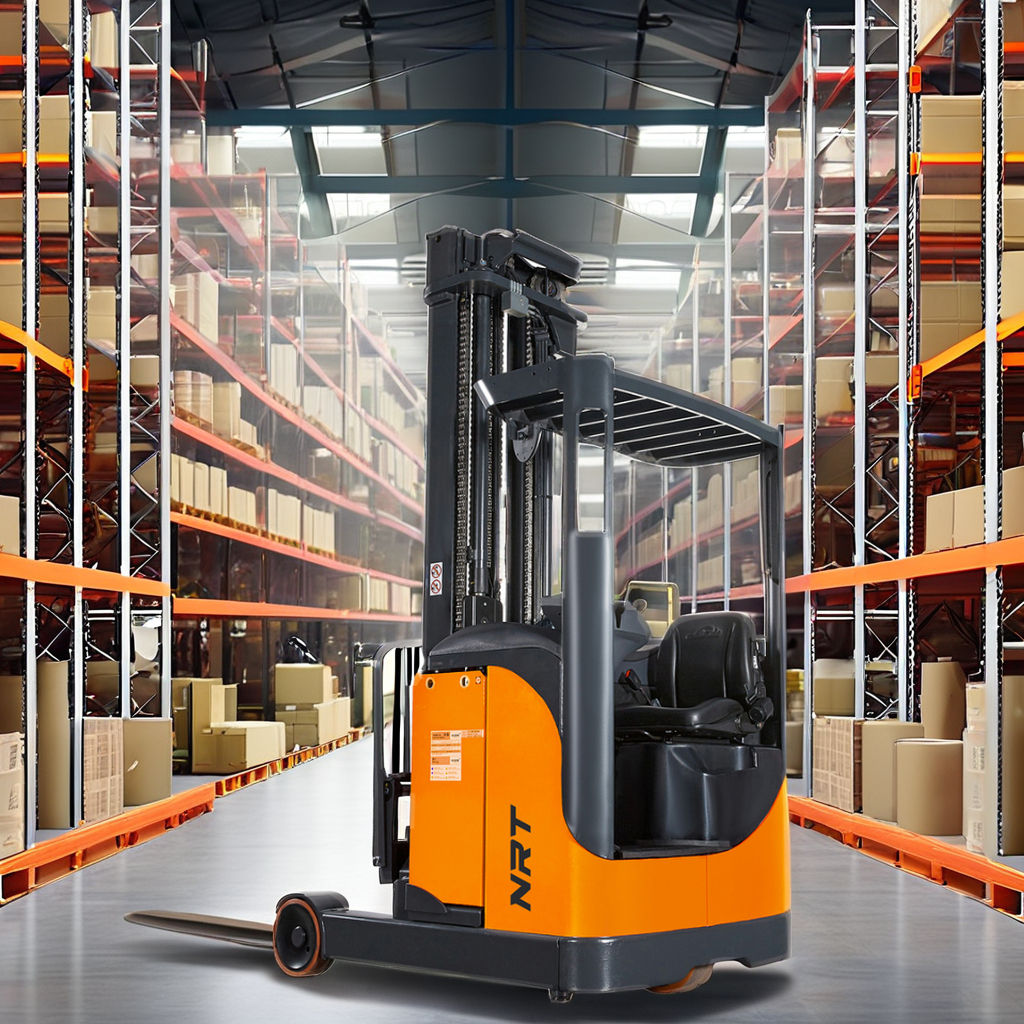

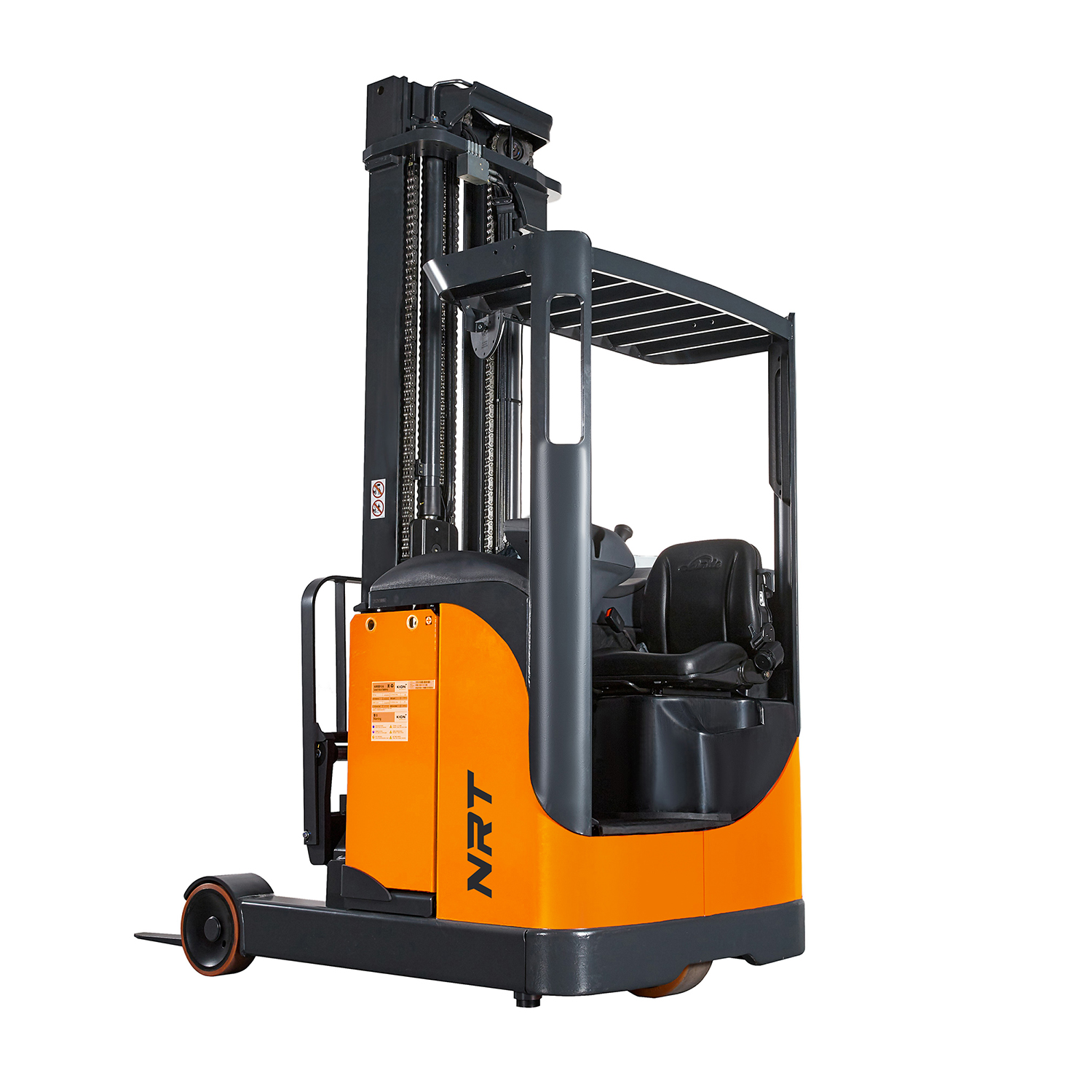

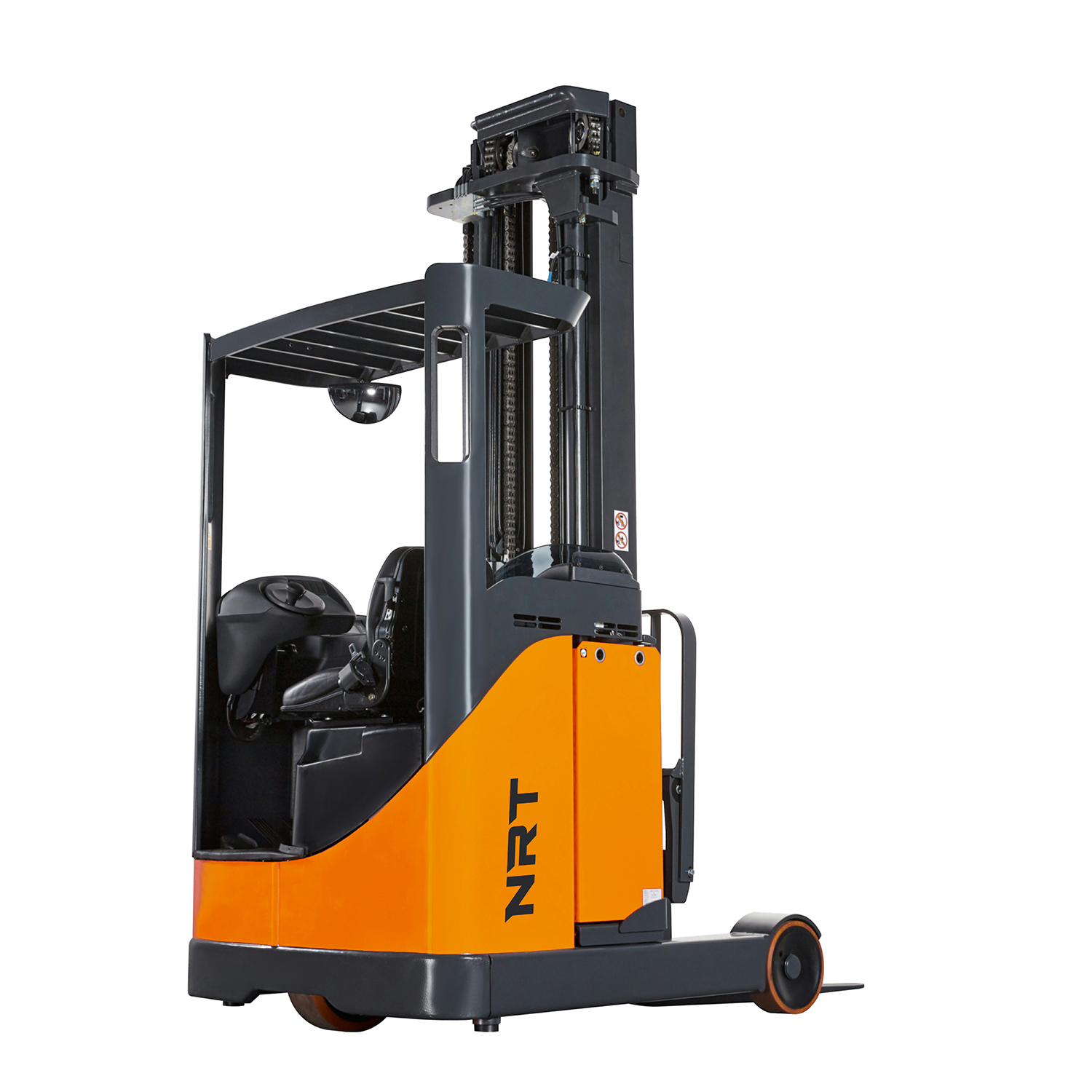

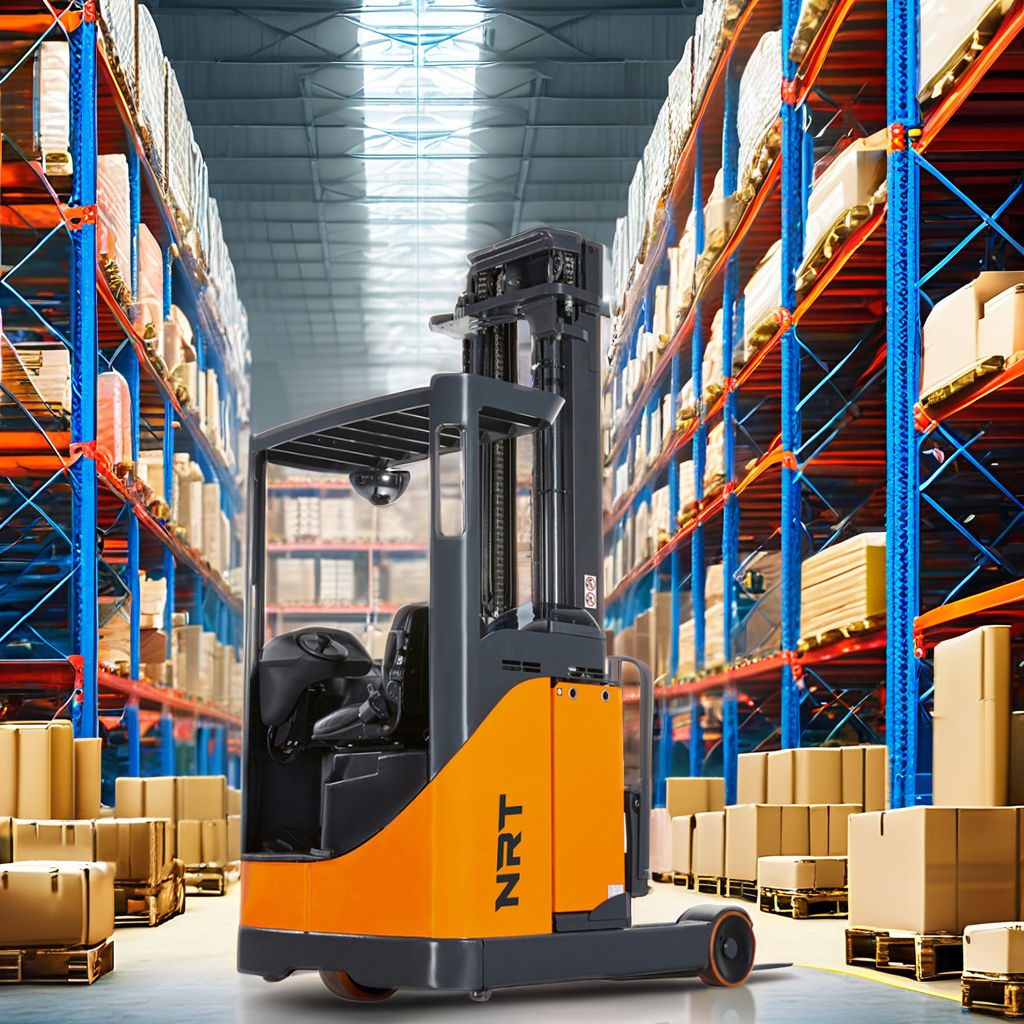

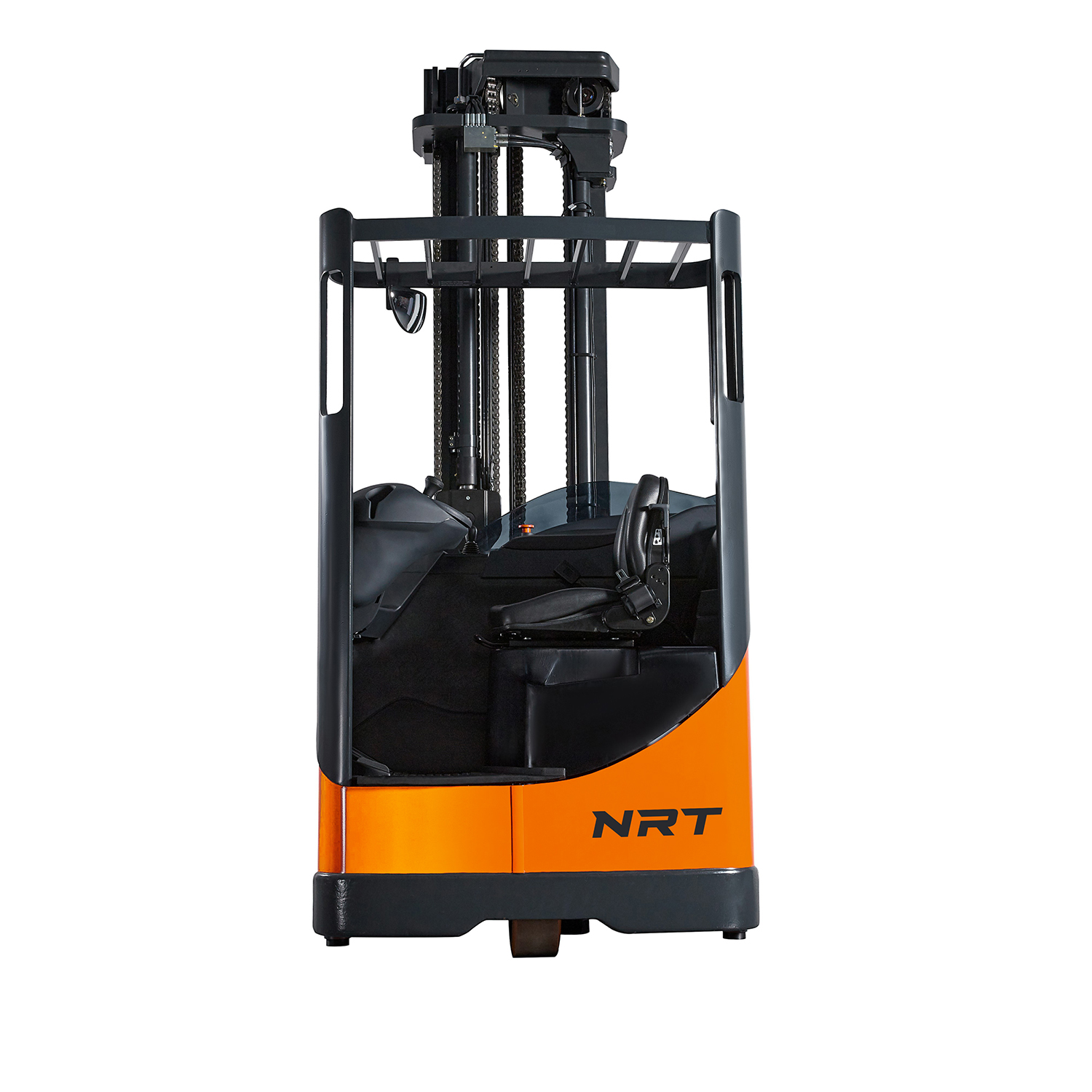

The reach truck forklift is a forklift commonly used in warehouses for narrow aisle applications. It has different models with different load capacities and lifting heights. For example, the load capacity of NQ20Q01LD can reach 2000kg and the lifting height can reach up to 9 meters.
Each model of forklift is designed for different application scenarios and can be selected according to the needs of your own warehouse.
The electric reach truck has a light and compact design, so it can move freely in various narrow aisles in the warehouse, and perform turning, forwarding and lifting operations through its retracted mast, so that warehouse operations can obtain maximum benefits.
*Safe and reliable, stable performance
*Battery-driven, easy maintenance
*Wide field of view, comfortable operation

The reach truck forklift is a forklift commonly used in warehouses for narrow aisle applications. It has different models with different load capacities and lifting heights. For example, the load capacity of NQ20Q01LD can reach 2000kg and the lifting height can reach up to 9 meters.
Each model of forklift is designed for different application scenarios and can be selected according to the needs of your own warehouse.
The electric reach truck has a light and compact design, so it can move freely in various narrow aisles in the warehouse, and perform turning, forwarding and lifting operations through its retracted mast, so that warehouse operations can obtain maximum benefits.
*Safe and reliable, stable performance
*Battery-driven, easy maintenance
*Wide field of view, comfortable operation

| Item | Reach Truck Forklifts | ||
| Model | NQ14Q01LD | NQ16Q01LD | NQ20Q01LD |
| Rated load | 1400kg | 1600kg | 2000kg |
| Weight | 2890kg | 2940kg | 3260kg |
| Height of mast, lowered | 2476mm | 2476mm | 2910mm |
| Free lift | 1627mm | 1627mm | 2061mm |
| Lift | 5755mm | 5755mm | 5755mm |
| Height of mast, extended | 6495mm | 6495mm | 6495mm |
| Height of overhead guard (cabin) | 2110mm | 2110mm | 2110mm |
| Height of seat, min/max | 940/1030mm | 940/1030mm | 940/1030mm |
| Height of reach legs | 310mm | 310mm | 373mm |
| Overall length | 2407mm | 2411mm | 2483mm |
| Length to fork face | 1257mm | 1261mm | 1333mm |
| Overall width | 1234/1250mm | 1234/1250mm | 1234/1250mm |
| Fork dimensions | 100x45x1150mm | 100x45x1150mm | 100x45x1150mm |
| Turning radius | 1540mm | 1640mm | 1775mm |
| Length of chassis | 1638mm | 1748mm | 1911mm |
| Travel speed, with/without load | 13.5km/h | 13.5km/h | 13.5km/h |
