NJ2Q01LD
NRT

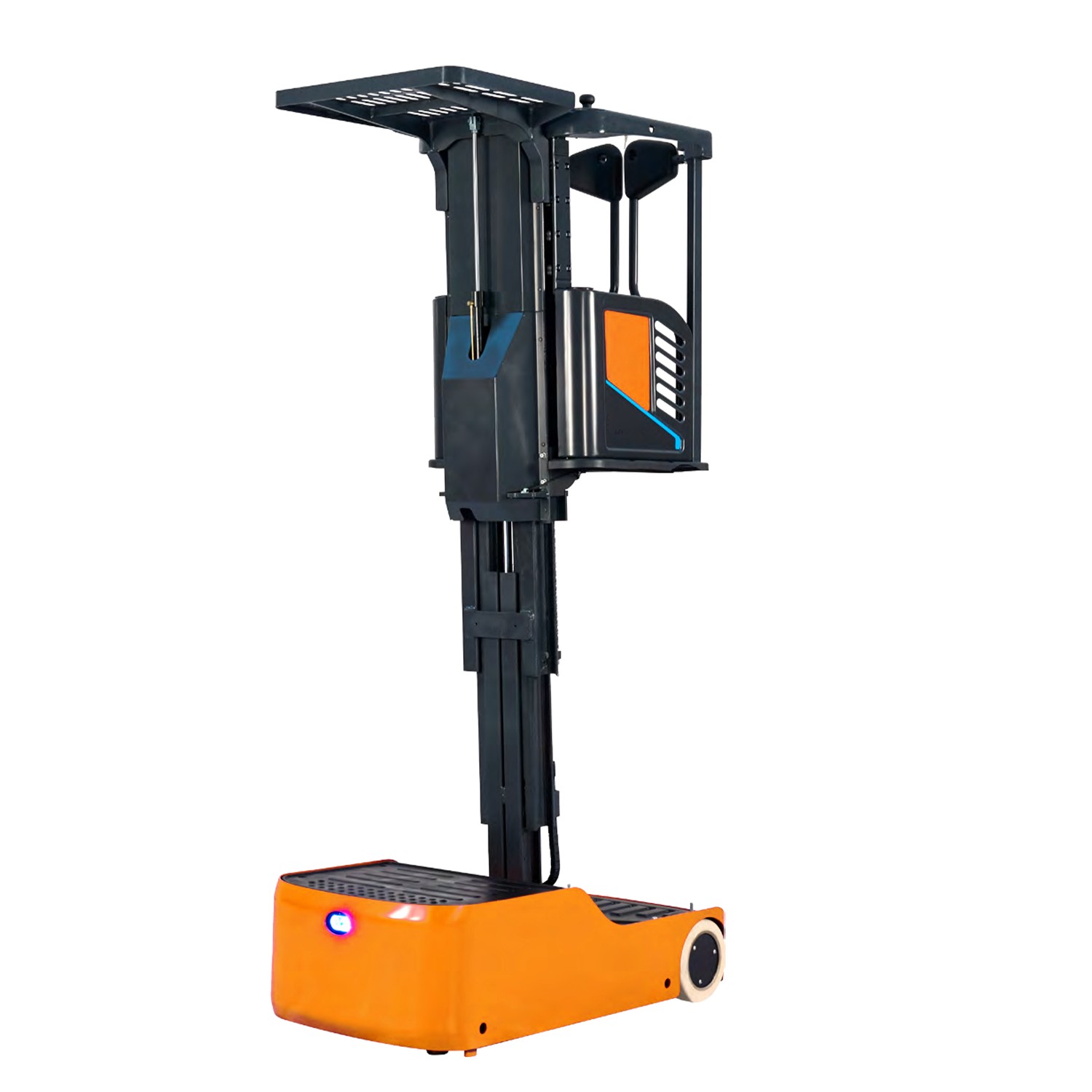

1.Mast
*Forklift standard mast design for improved stability.
*The lifting and lowering cushioning function further ensures smooth and comfortable.
*Multiple inspection of hydraulic cylinders and pipelines to improve hydraulic system reliability.
2.Performance
*Minimize turning radius.
*Maintenance-free Li-ION battery with low voltage automatic protection.

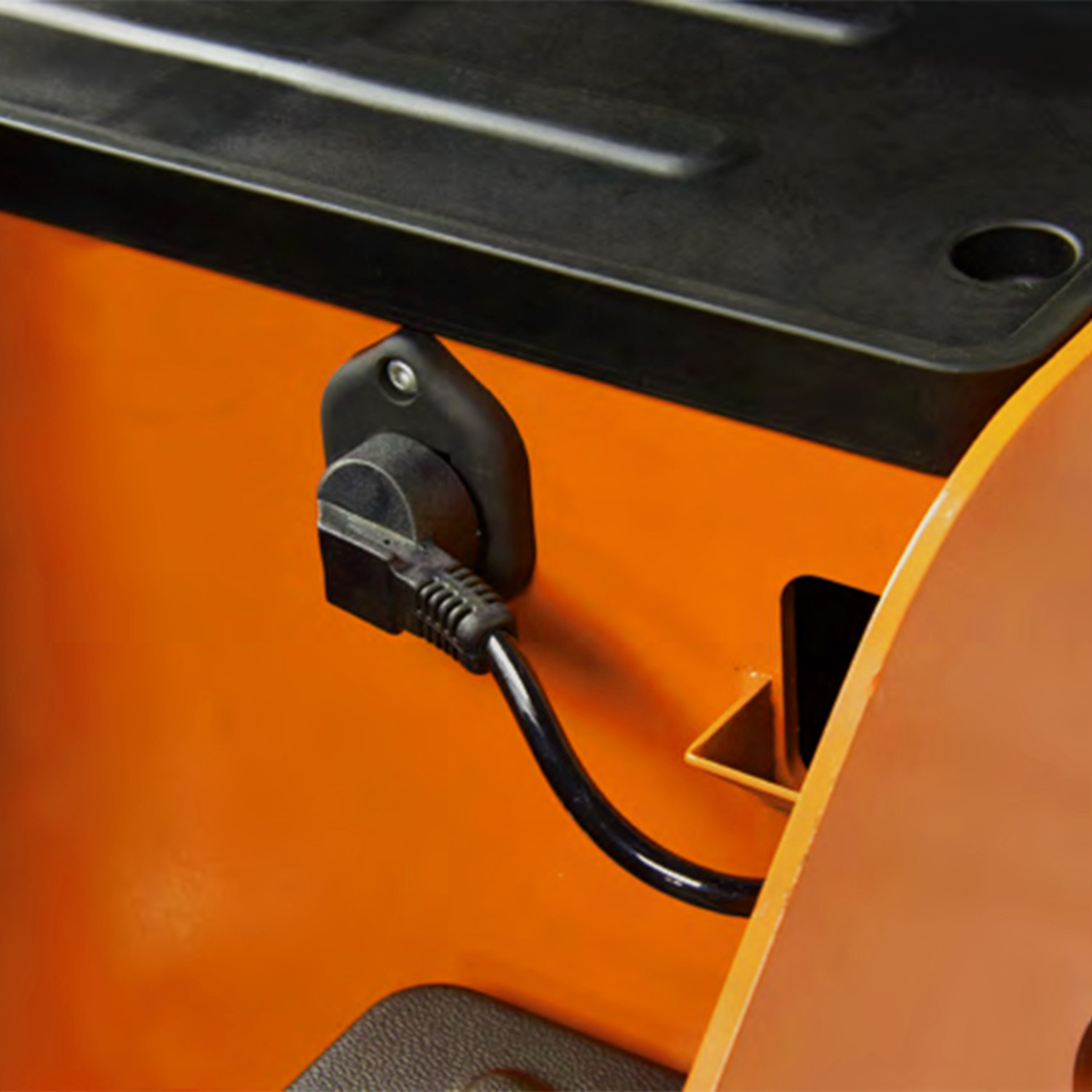

*Car charger for easy charging.
*Automatic adjustment of speed depending on lifting height and steering angle.
3.Control concept

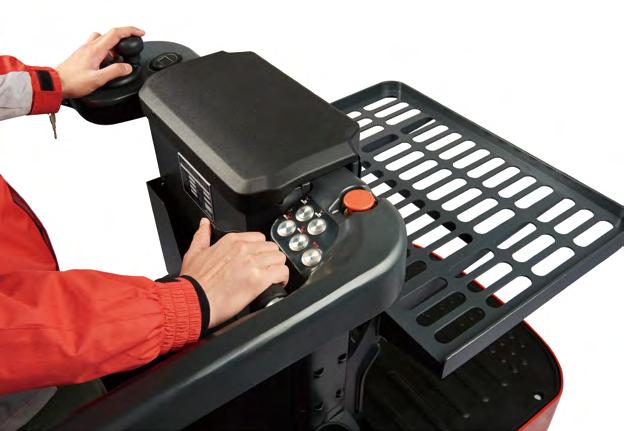

*Two hand operation.
*Electronic steering, lighter handling.
*Adjustable picking platform reduces operators’ back pain.

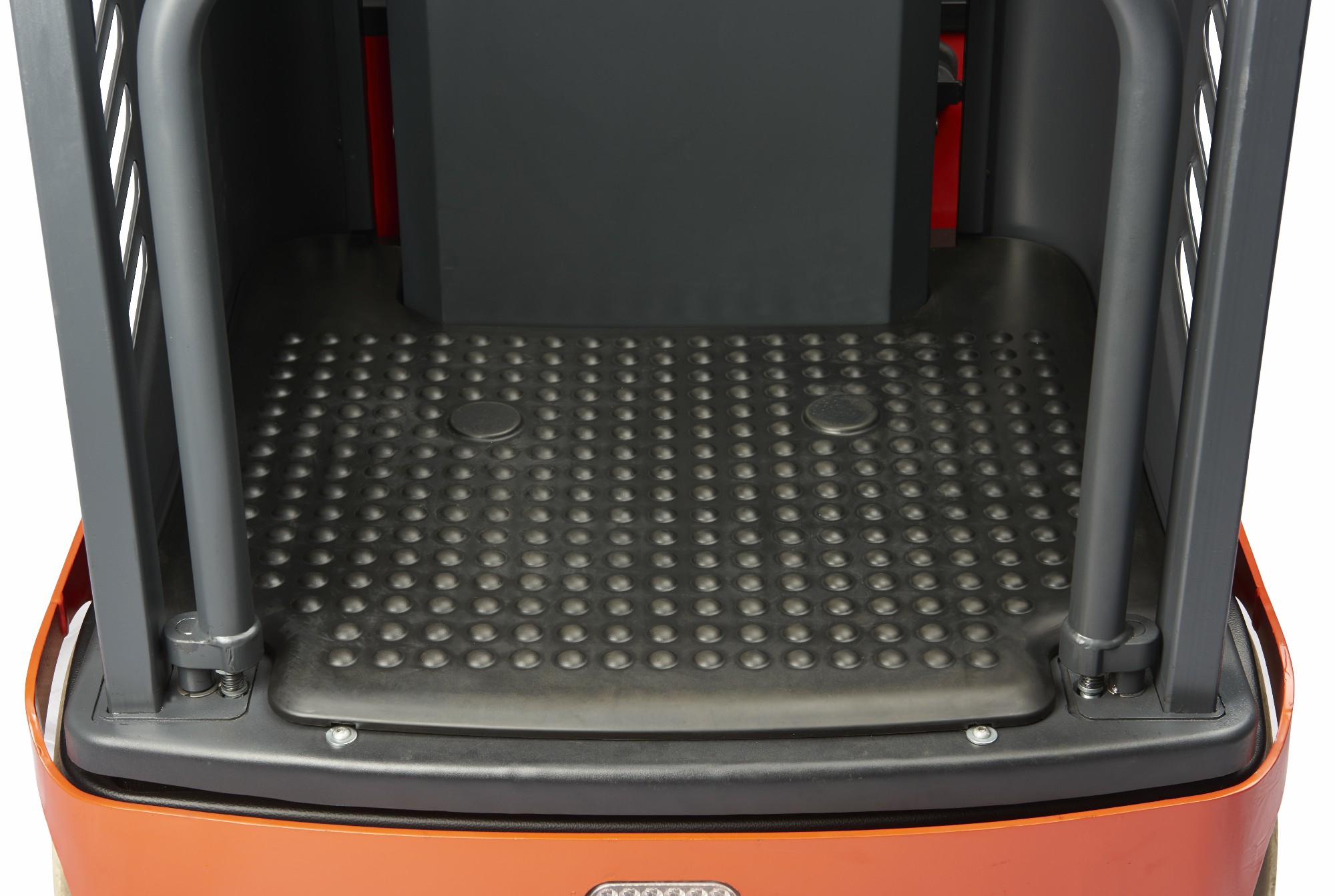

*The shock absorption pad maintain a natural standing position.
*The hidden dead man switch avoid misoperation.
*Automatic adjustment of speed depending on steering angle.

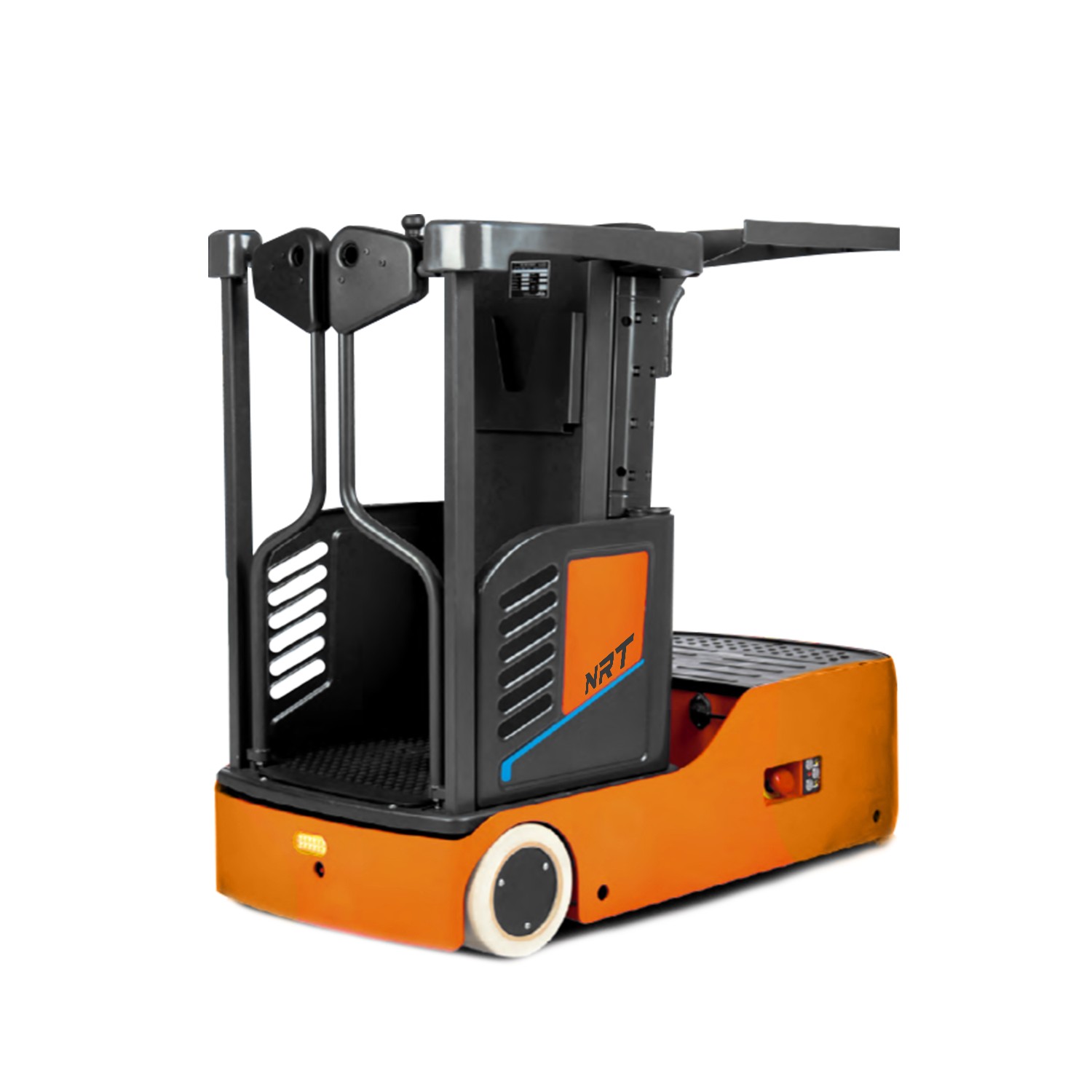

*Interlocking barrier offer safe picking.
*Featured with documents holder and mug holder for operator's well being
*Adjustable picking platform reduces operators'back pain.
*Maintenance-free Li-ION battery with low voltage automatic protection.
*Car charger for easy charging.

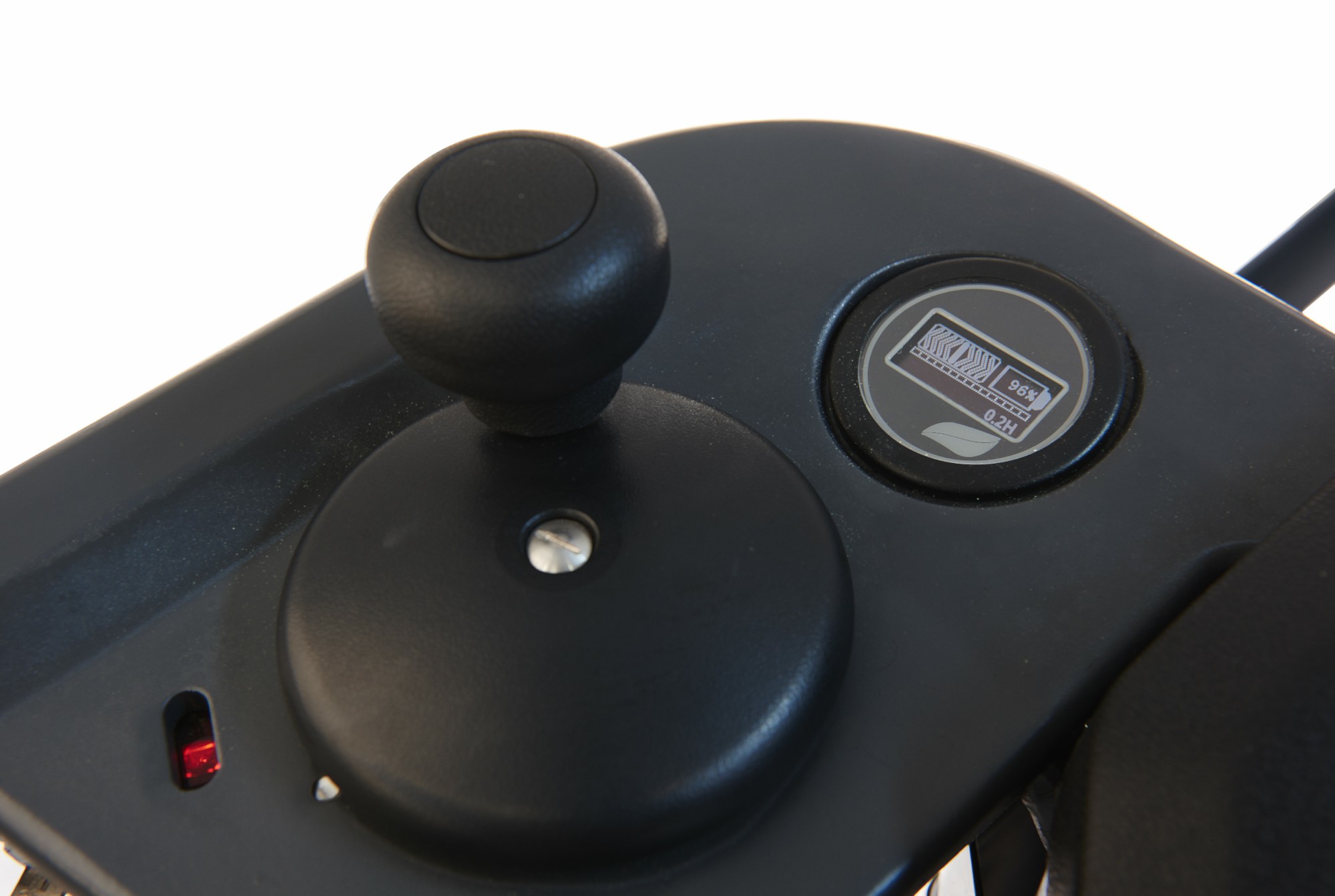

*The smart meter can display the power usage, hour meter, fault code, etc., for convenient to solve the fault.
Is it easy to be an order picker?
Being an order picker in a warehouse is a professional and physically demanding job. He needs to be skilled in operating electric order picking vehicles or other material handling equipment safely and efficiently, and needs to be familiar with warehouse processes and moving around and moving items in the warehouse.
Why do you need order picking?
Order picking is the process of correctly selecting products in the order warehouse. This is the first step in order fulfillment, and this process is also indispensable. If the order picking process can be correctly executed in the warehouse, customer satisfaction will also increase. Therefore, for some logistics and distribution centers, there will be a complete and smooth order picking process.

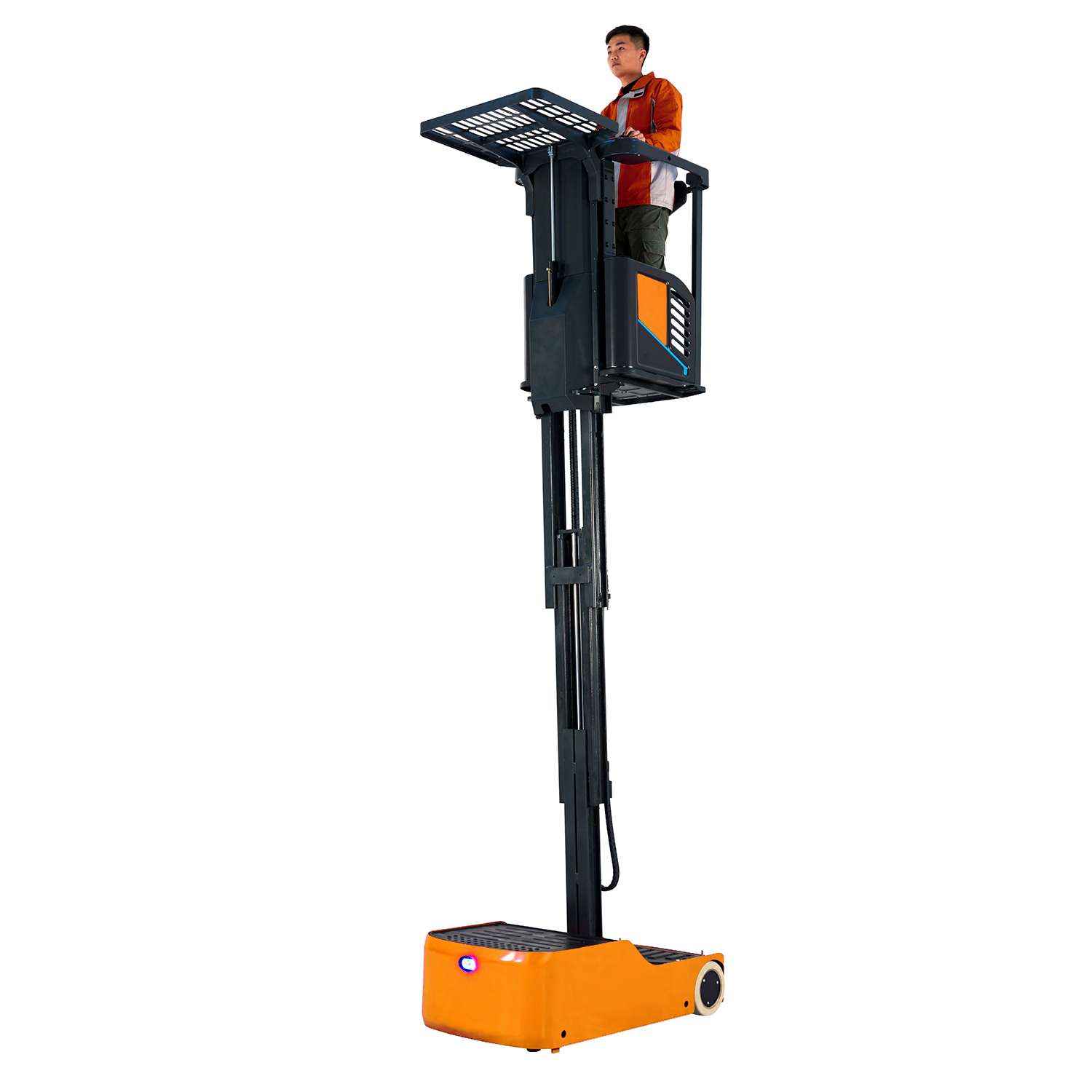

How high do order pickers go?
The order picker can be used up to 3.6m high, which can be higher than the second-level shelf of the warehouse or distribution center. The newly upgraded door frame can also reach the third level, which can continuously stack pallet trucks and item picking, order processing, etc
1.Mast
*Forklift standard mast design for improved stability.
*The lifting and lowering cushioning function further ensures smooth and comfortable.
*Multiple inspection of hydraulic cylinders and pipelines to improve hydraulic system reliability.
2.Performance
*Minimize turning radius.
*Maintenance-free Li-ION battery with low voltage automatic protection.
*Car charger for easy charging.
*Automatic adjustment of speed depending on lifting height and steering angle.
3.Control concept
*Two hand operation.
*Electronic steering, lighter handling.
*Adjustable picking platform reduces operators’ back pain.
*The shock absorption pad maintain a natural standing position.
*The hidden dead man switch avoid misoperation.
*Automatic adjustment of speed depending on steering angle.
*Interlocking barrier offer safe picking.
*Featured with documents holder and mug holder for operator's well being
*Adjustable picking platform reduces operators'back pain.
*Maintenance-free Li-ION battery with low voltage automatic protection.
*Car charger for easy charging.
*The smart meter can display the power usage, hour meter, fault code, etc., for convenient to solve the fault.
Is it easy to be an order picker?
Being an order picker in a warehouse is a professional and physically demanding job. He needs to be skilled in operating electric order picking vehicles or other material handling equipment safely and efficiently, and needs to be familiar with warehouse processes and moving around and moving items in the warehouse.
Why do you need order picking?
Order picking is the process of correctly selecting products in the order warehouse. This is the first step in order fulfillment, and this process is also indispensable. If the order picking process can be correctly executed in the warehouse, customer satisfaction will also increase. Therefore, for some logistics and distribution centers, there will be a complete and smooth order picking process.
How high do order pickers go?
The order picker can be used up to 3.6m high, which can be higher than the second-level shelf of the warehouse or distribution center. The newly upgraded door frame can also reach the third level, which can continuously stack pallet trucks and item picking, order processing, etc
Item | Warehouse Order Picker Trucks |
Weight | 770kg |
Road Capacity | 220kg |
Lift | 3620mm |
Height of mast, lowered | 1425mm |
Seat height/standing height | 275mm |
Turning radius | 1260mm |
Height of mast, extended | 4100mm |
Overall length | 1440mm |
Overall width | 750mm |
Stand height, elevated | 3000mm |
Battery | 24V/120Ah |
Type of drive control | DC |
Noise level | 74[dB (A)] |
Item | Warehouse Order Picker Trucks |
Weight | 770kg |
Road Capacity | 220kg |
Lift | 3620mm |
Height of mast, lowered | 1425mm |
Seat height/standing height | 275mm |
Turning radius | 1260mm |
Height of mast, extended | 4100mm |
Overall length | 1440mm |
Overall width | 750mm |
Stand height, elevated | 3000mm |
Battery | 24V/120Ah |
Type of drive control | DC |
Noise level | 74[dB (A)] |
