3T All-terrain off-road Electric Pallet Truck For Cold Chain Warehouse Use

This 3T off-road electric pallet truck is designed for challenging extreme working environments. It overcomes the limitations of traditional pallet trucks on ground flatness, traversing slippery surfaces in cold chain warehouses, gravel roads on construction sites, and ramps in logistics transfer centers with ease. Its powerful 3-ton lifting capacity combined with superior off-road performance makes it an all-terrain weapon for heavy industrial material handling.
Availability:
Quantity:
sharethis sharing button

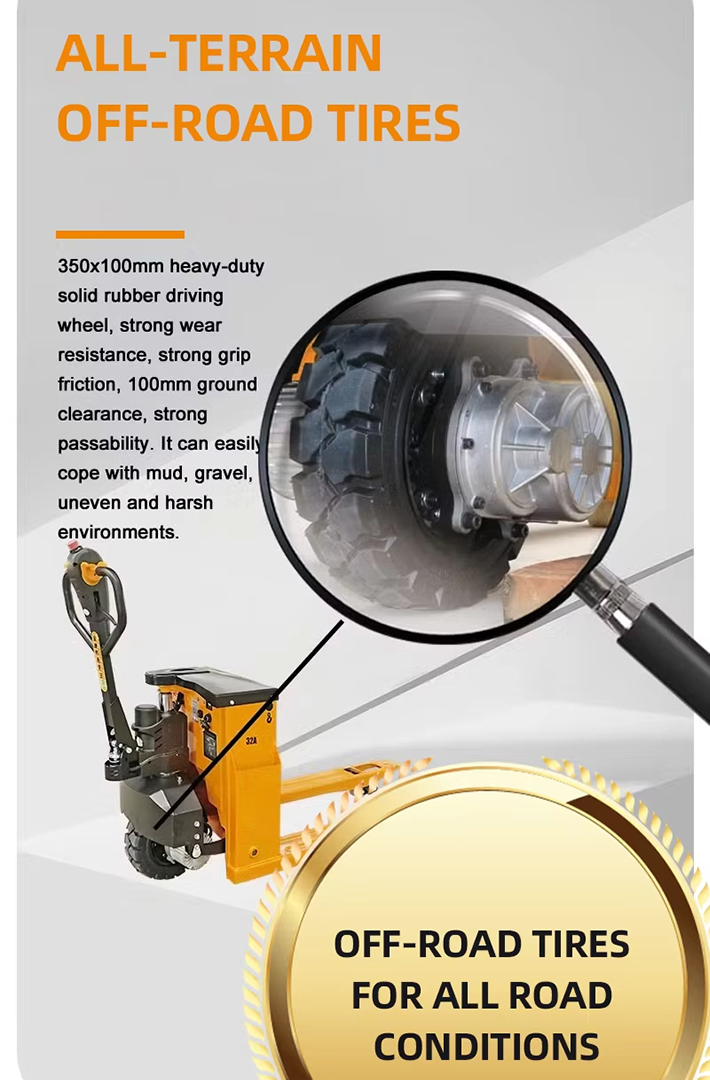

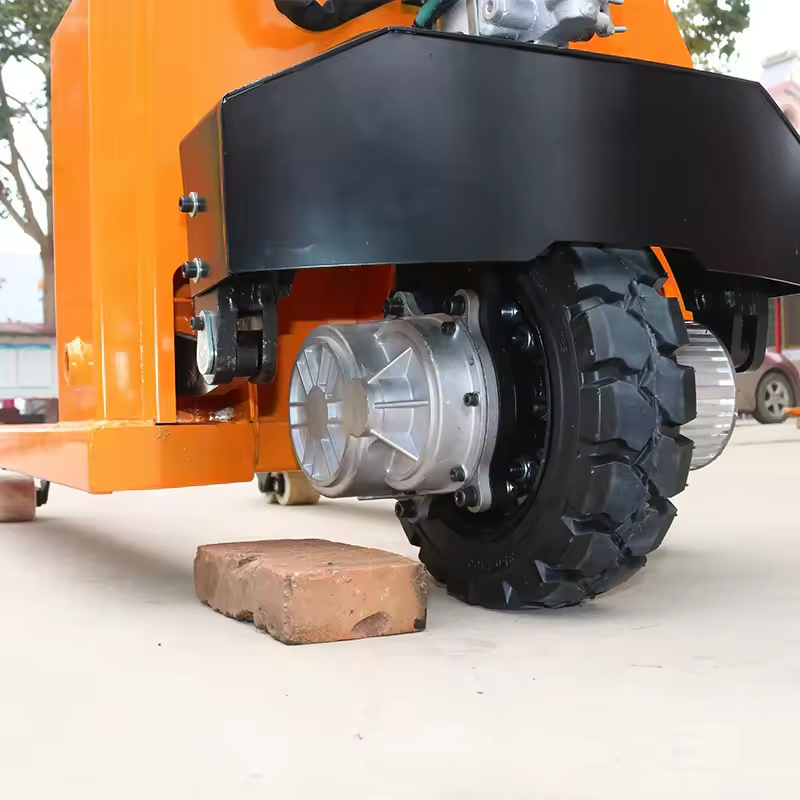

1. All-Terrain Wear-Resistant Solid Rubber Wheels

Standard high-grip solid rubber drive wheels offer excellent shock absorption and puncture resistance, maintaining stability on muddy, gravel, or uneven surfaces. Their lifespan is 50% longer than ordinary polyurethane wheels.


2. Industrial-Grade Brushless AC Motor

Equipped with an advanced maintenance-free brushless motor, delivering strong power output and rapid response. The brushless design eliminates dust wear and maintains low-temperature operation even under high-frequency operation, significantly improving energy efficiency.


3. Cold Chain and All-Weather Protection

A fully sealed electronic control system optimized for the cold chain industry allows seamless switching between low-temperature cold storage and ambient temperature environments, effectively preventing condensation corrosion of core components.


4. Reinforced Lifting Structure

Thickened forks designed for 3T heavy-duty loads maintain extremely high rigidity even under full load, ensuring operational safety.


pallet jacks (1)


Item Off-road Pallet Trucks
Model NB30Q01TY
Load capacity 3000kgs
Overall length 1780mm
Overall width 570/685mm
Fork length 1150/1220mm
Fork width 150/160mm
Fork thickness 60mm
Load center distance 600mm
Lifting travel 115mm
Fork height from ground 85mm
Travel speed (loaded/unloaded) 4/4.5km/h
Lifting speed (loaded/unloaded) 15/19mm/s
Max gradeability (loaded/unloaded) 8/16%
Turning radius 1550mm
Self weight (with battery) 212kgs
Drive motor rated power 1kW
Lift motor rated power 0.8kw
Battery voltage/capacity 48/32 V/Ah




pallet jacks (3)
