Moving heavy loads efficiently without inflating labor costs remains a persistent operational bottleneck in modern logistics. Facilities constantly struggle to balance fast fulfillment demands against strict safety budgets. Manual handling often leads to worker fatigue and costly injury liabilities over time. An electric pallet jack serves as a motorized material handling tool explicitly designed to lift and transport palletized goods. It effectively bridges the performance gap between strenuous manual jacks and bulky, expensive full-sized forklifts. This guide moves past basic equipment definitions. We provide a practical, decision-focused framework to evaluate, select, and implement the right equipment. You will learn how to match specific models to your unique facility layout and workflow constraints.
Electric pallet jacks replace manual pulling/pushing with battery-powered traction and lifting, significantly increasing throughput and reducing operator fatigue.
Upgrading from manual to electric requires evaluating facility layout, daily cycle counts, and load weights to justify the higher initial investment.
Choosing the right model (walkie vs. rider) depends directly on travel distances within your warehouse.
Total Cost of Ownership (TCO) relies heavily on battery selection (Lithium-ion vs. Lead-acid) and adherence to maintenance protocols.
You must understand the fundamental engineering behind an electric pallet truck before making procurement decisions. These motorized machines excel in horizontal transportation tasks across flat concrete surfaces. They streamline dock-to-stock applications seamlessly. Operators rely on them to unload incoming trailers rapidly. They then stage these goods deep inside the facility.
Let us examine the key components serving as your primary evaluation lens:

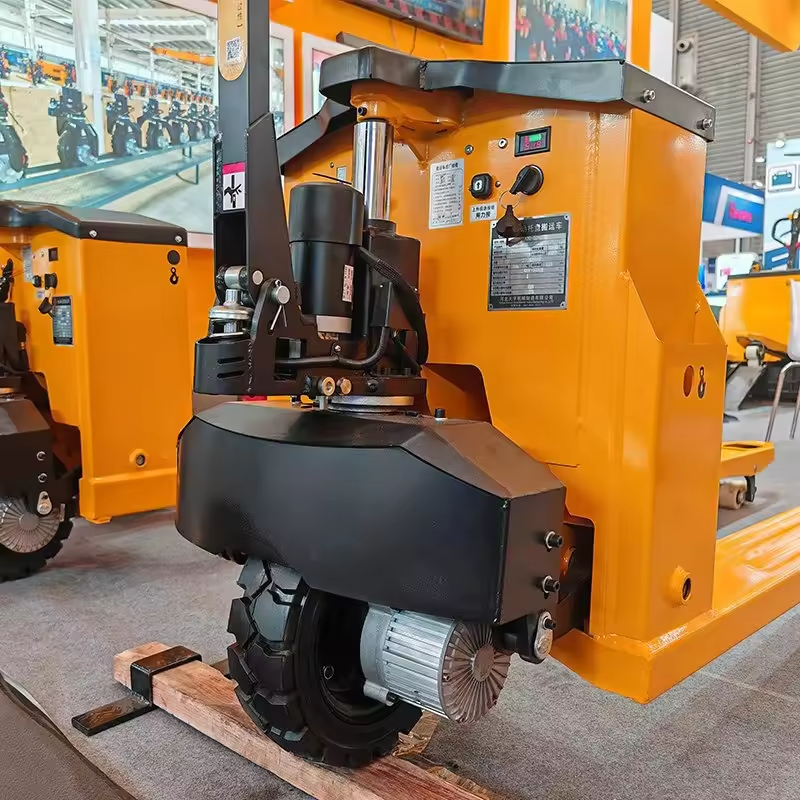

Drive Motor and Lift Pump: These motorized elements handle both propulsion and elevation. They replace human physical exertion entirely. Stronger AC drive motors conquer steep dock plates easily. They maintain consistent speeds regardless of the pallet weight.
Control Handle (Tiller): This serves as the ergonomic command center. It houses the throttle, horn, and lift/lower buttons. You will also find the crucial safety reversing switch here. Industry professionals often call this the "belly button." It immediately reverses the machine if it bumps the operator, preventing dangerous entrapment during tight maneuvers.
Forks and Load Wheels: These heavy-duty structural components determine lifting capacity. They dictate direct pallet compatibility. High-quality polyurethane load wheels ensure smooth travel across warehouse floors. They prevent costly damage to epoxy-coated surfaces.
Power Source: The battery compartment acts as the energetic heart. It dictates your maximum operational uptime per shift. It also plays a critical structural role. The heavy battery block provides necessary counterweight and stabilizes the load during sharp turns.
What specific business problem does this technology solve? It drastically reduces physical strain on operators. This directly lowers expensive workplace injury liabilities. Manual pulling causes severe shoulder and lower back injuries over time. Motorized propulsion eliminates this resistance. It also speeds up cycle times considerably compared to manual alternatives. You move more goods in significantly less time.
Upgrading your logistics fleet requires careful operational consideration. You must contrast the low upfront cost of manual hand jacks against the long-term efficiency gains of electric models. The productivity equation strongly favors motorized assistance in busy environments. Electric units boost daily throughput, effectively offsetting their higher initial purchase prices. We focus purely on measurable performance returns and output metrics.
When should you stick with manual equipment? Certain scenarios still justify non-motorized options. Low-volume movement zones remain ideal for basic jacks. Extremely tight retail aisles often restrict motorized turning radii. Infrequent, lightweight transport tasks do not always justify heavy capital investments. Motorized solutions will not yield sufficient efficiency returns in a small stockroom.
When does an electric pallet jack become absolutely mandatory?
Heavy Load Thresholds: You move loads exceeding 2,500 lbs on a regular basis. Manual pushing becomes dangerous at this weight limit.
Challenging Terrain: Operators must navigate inclines, ramp transitions, or long dock plates safely. Gravity makes manual handling on slopes highly hazardous.
Continuous Cadence: Your high-throughput environments require continuous, uninterrupted operation over a full shift. Fatigue slows manual operators down drastically during their final working hours.
You must also factor in hidden operational requirements. Electric models demand robust charging infrastructure. They also require scheduled preventative maintenance routines. You must allocate physical space for charging stations. Preventative maintenance keeps motors, sensors, and hydraulic pumps running efficiently. Neglecting these areas leads to expensive unexpected downtime.
Selecting the correct equipment style maximizes your operational flow. You must match the physical footprint of the machine to your specific environment. Different tasks require different operator stances. Let us explore the two dominant machine categories available today.

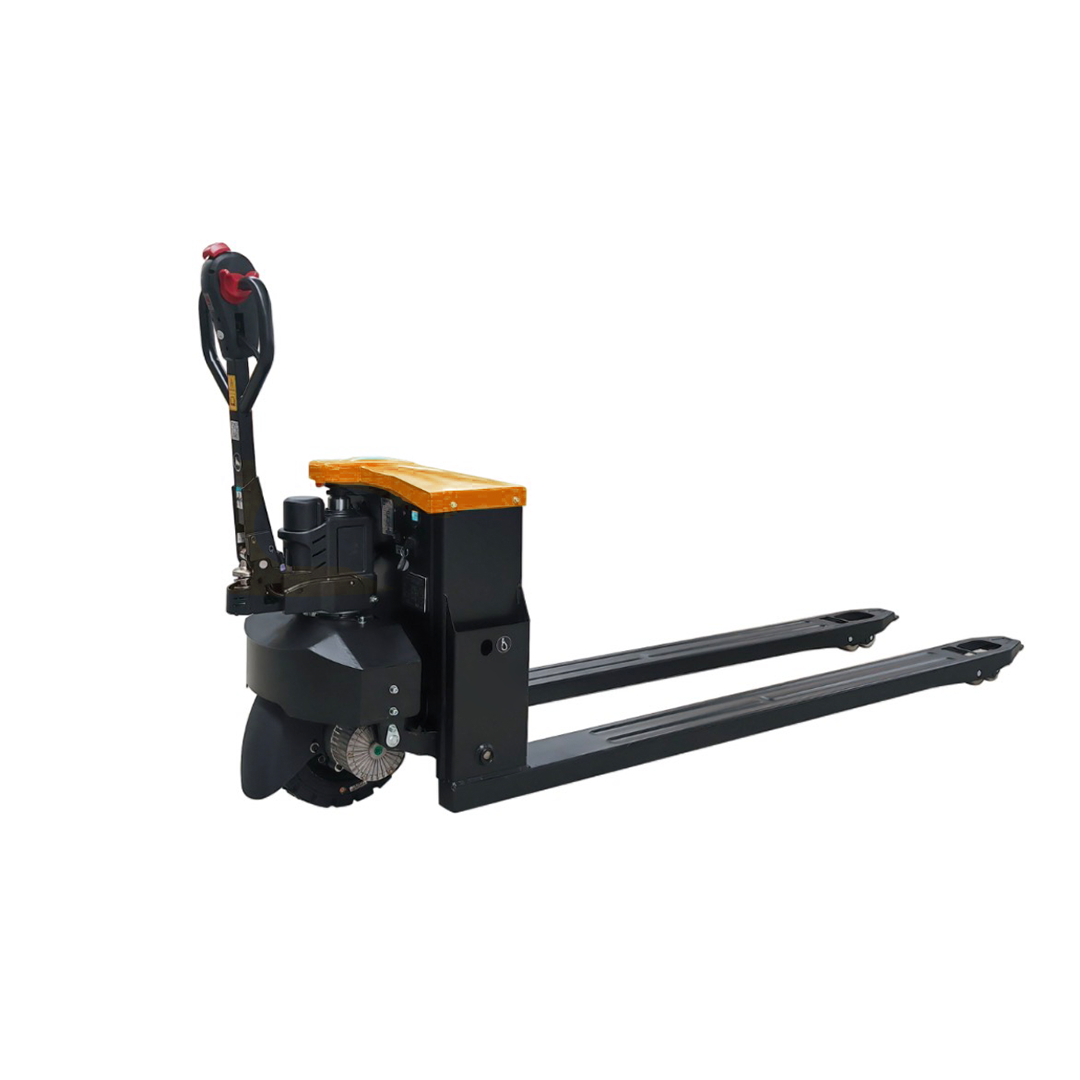

Walkie Electric Pallet Jacks
Operators walk directly behind or beside the walkie unit during travel. This upright profile keeps the overall machine footprint relatively compact. They weigh less than their larger counterparts. They are best for short-to-medium travel distances. They handle tight turning radii effortlessly. They excel at loading and unloading dense 53-foot trailers safely. They fit perfectly into standard freight elevators.
Rider Electric Pallet Jacks (End-Control and Center-Control)
These robust models include a dedicated traction platform. The operator stands safely on this platform during high-speed transit. Some models position the operator at the rear, while center-control models place them in the middle for enhanced visibility. They are best for long-distance horizontal transport across massive facilities. They dominate high-volume order picking operations. Large-scale distribution centers rely on them daily. They often feature coast-control buttons to speed up aisle picking.
Use a simple shortlisting logic when buying. Match the equipment type directly to your primary operational footprint. Does the average travel distance per task exceed 100 feet? If yes, evaluate rider models aggressively. They prevent severe operator foot fatigue during long shifts. Choosing the right electric pallet jack for warehouse environments scales your daily throughput exponentially.
Operational Space Comparison
Feature | Walkie Models | Rider Models |
|---|---|---|
Operator Stance | Walking behind/beside | Standing on platform |
Ideal Travel Distance | Under 100 feet | Over 100 feet |
Facility Type | Small to medium warehouses | Large distribution centers |
Turn Radius | Extremely tight | Moderate to wide |
Picking Speed | Moderate | Very Fast |
Procurement requires analyzing multiple technical dimensions. You cannot buy based on brand recognition alone. Every facility possesses unique physical constraints. Let us break down the most critical evaluation metrics for heavy logistics equipment.
First, examine weight capacity thresholds closely. Standard commercial models typically range from 3,000 to 8,000 lbs. Follow this strict industry rule of thumb: Always specify a machine capacity 15-20% higher than your heaviest typical load. This proactive buffer prevents catastrophic motor burnout. It also extends the hydraulic pump's functional lifespan significantly. Pushing a machine to its maximum limit daily guarantees premature failure.
Battery chemistry acts as a crucial daily performance decider. It directly impacts your shift scheduling and operational cadence.
Lead-Acid Technology: These batteries offer a lower upfront purchase price. However, they require weekly watering maintenance to prevent plate damage. They demand significantly longer charge times. You must also dedicate specific, heavily ventilated charging zones due to off-gassing risks.
Lithium-Ion Technology: These carry a higher initial procurement price. However, they provide zero-maintenance operations. They allow quick "opportunity charging" directly during employee lunch breaks. They deliver a noticeably longer overall lifespan. They do not require special ventilation rooms.
Battery Chemistry Breakdown
Metric | Lead-Acid | Lithium-Ion |
|---|---|---|
Routine Maintenance | High (Watering/Cleaning) | Zero Maintenance |
Charging Speed | Slow (8-10 hours) | Fast (Opportunity charging) |
Ventilation Required | Yes (Dedicated battery room) | No |
Shift Suitability | Single-shift operations | Multi-shift operations |
Next, verify chassis dimensions and fork length. They must match your specific pallet dimensions perfectly. Standard GMA pallets require specific 27-inch fork spacing. Specialized European skids might demand narrower custom widths. Long forks (up to 96 inches) allow operators to carry two pallets simultaneously. You must also ensure the machine chassis clears your narrowest warehouse aisle safely.
Finally, assess structural durability features extensively. Inspect the build quality of the undercarriage thoroughly. Cast steel components withstand impacts far better than stamped steel. Evaluate fork thickness and weld integrity. Confirm the immediate availability of replacement parts in your local region. Equipment downtime kills facility profitability.
Deploying new motorized equipment introduces fresh operational responsibilities. You must prepare your workforce and your facility adequately. Failing to plan the rollout creates immediate safety hazards.
OSHA compliance and operator certification demand immediate management attention. Clarify to your entire team that motorized units require formal operator training. They mandate official certification, unlike simple manual jacks. Operators must pass detailed written exams and practical driving tests. Never allow untrained personnel to operate motorized equipment. Implement a strict badge-access system if possible.
You must also evaluate facility readiness comprehensively before delivery.
Assess floor conditions: Electric units struggle significantly on severely uneven surfaces. Deep thresholds, expansion joints, and cracked concrete destroy load wheels quickly. Repair damaged floors prior to deployment. Keep aisles free of shrink wrap and debris. Polyurethane wheels easily jam when they roll over loose plastic.
Determine electrical infrastructure: Assess your current electrical panel capacity. Does it support multiple heavy-duty charging stations simultaneously? You may need commercial electrical upgrades to handle new high-voltage chargers securely.
Establish a strict maintenance rollout immediately upon delivery. You need a solid baseline for daily pre-shift inspections. Operators must check tires, horn functionality, and electronic brakes daily. They must verify battery health and check for hydraulic leaks before starting work. These simple daily habits prevent premature equipment failure. They keep your facility running smoothly and safely.
We must reiterate the core operational value proposition. Purchasing a motorized jack represents a direct investment in facility throughput. It mitigates expensive workplace ergonomic risks simultaneously. It transforms grueling manual labor into highly efficient automated tasks. Your workforce moves more tonnage with less physical strain.
Take a definitive final decision step today. Audit your current manual jack usage thoroughly. Calculate the exact hours lost to slow transit across long distances. Estimate the financial impact of operator fatigue during the final hours of a shift. Do this hard math before requesting vendor quotes. Solid operational data drives the best procurement choices.
Reach out to a qualified sales engineering team soon. Request a comprehensive facility site assessment immediately. Review detailed spec sheets for specific models matching your exact workflows. The right equipment partnership guarantees long-term operational success.
A: Standard commercial models typically handle weight ranges between 3,000 and 8,000 lbs. Light-duty walkie units generally lift around 3,000 to 4,500 lbs effortlessly. Heavy-duty rider models readily transport massive loads up to 8,000 lbs. Always buy a unit rated 15-20% above your absolute heaviest typical load. This ensures maximum motor longevity and maintains consistent workplace safety.
A: You do not need a commercial driver's license for these machines. However, OSHA strictly requires formal, facility-specific operator training and certification. Employers must provide classroom instruction alongside practical, hands-on driving evaluations. Operators must demonstrate safe handling competency before using the equipment independently. Recertification is typically required every three years or immediately after any safety incident.
A: Battery duration depends heavily on usage intensity and battery chemistry. Lead-acid batteries typically power a standard 8-hour shift before requiring a full 8-hour charging and cooling cycle. Lithium-ion batteries also last a full shift but allow rapid "opportunity charging" during short employee breaks. This intermittent charging keeps the lithium-ion unit running almost continuously across multi-shift operations.
A: Yes, but you must select specific specialized models. Standard indoor models possess smooth polyurethane wheels that quickly lose traction on wet, uneven outdoor surfaces. Ramps and dock boards require heavy-duty units explicitly rated for inclines. These feature stronger drive motors and specialized electromagnetic braking systems. Always verify the manufacturer's gradeability rating if your facility features steep slopes.
