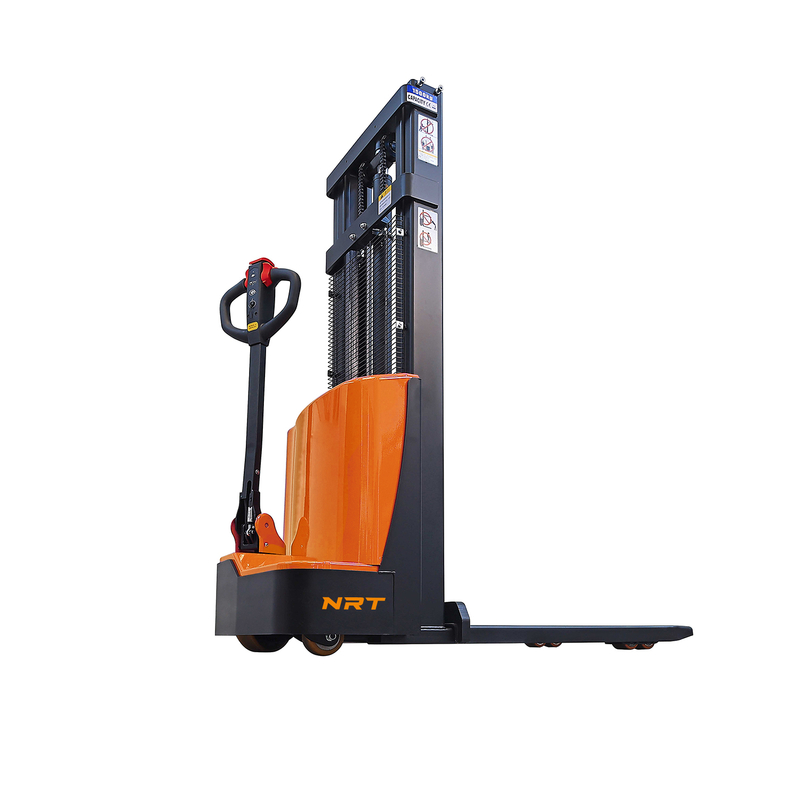

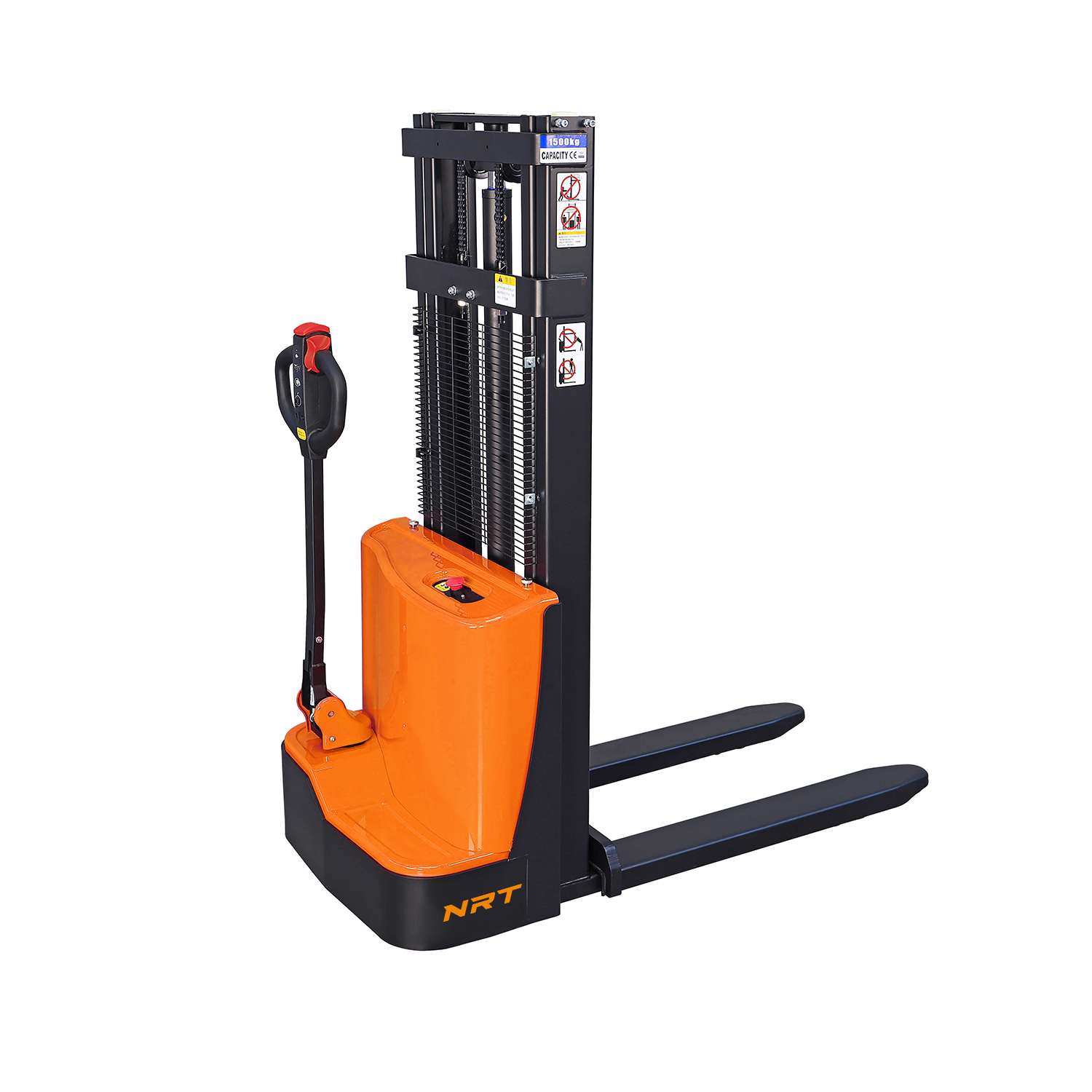

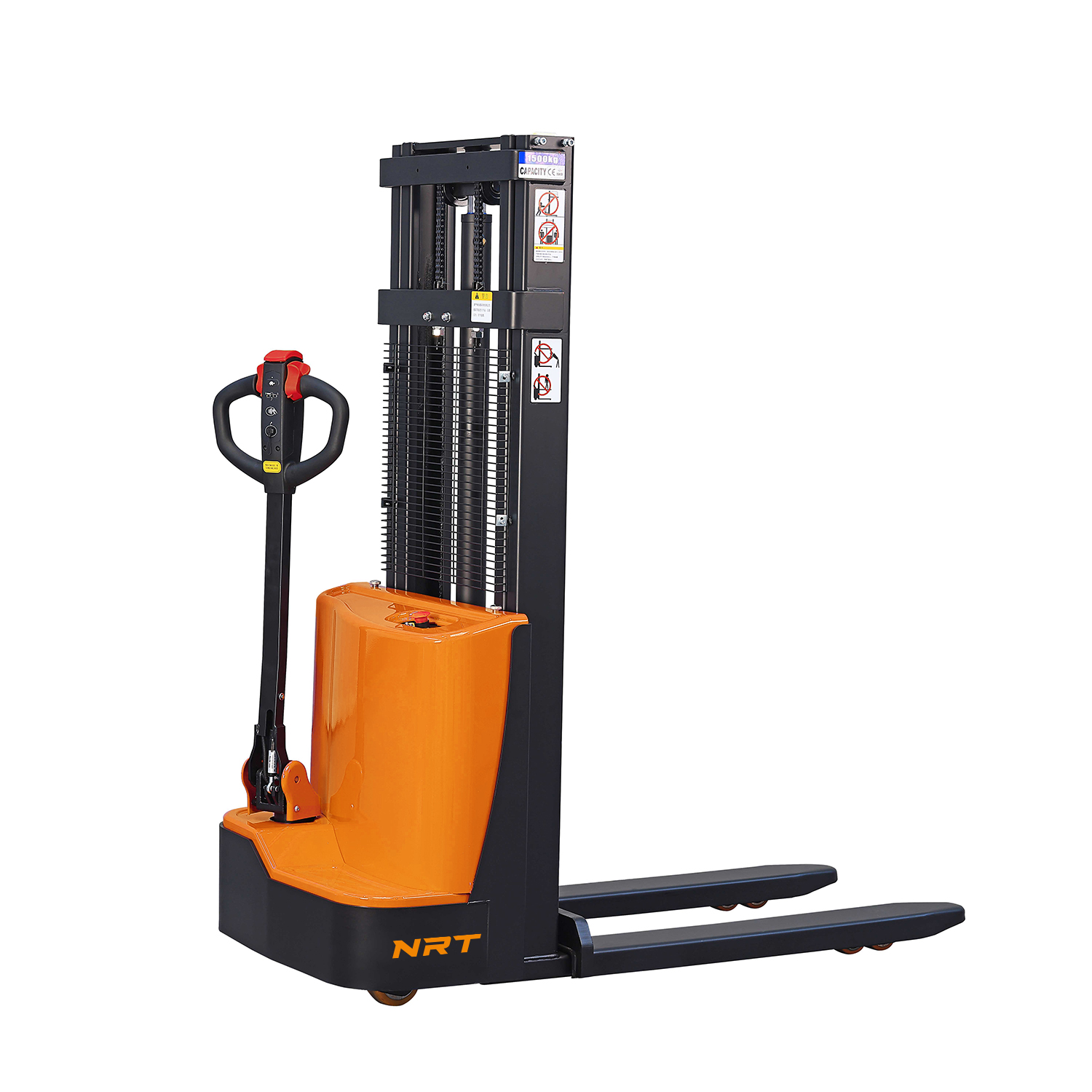

Indutrial Pallet Walkie Stacker Forklifts from China manufacturer

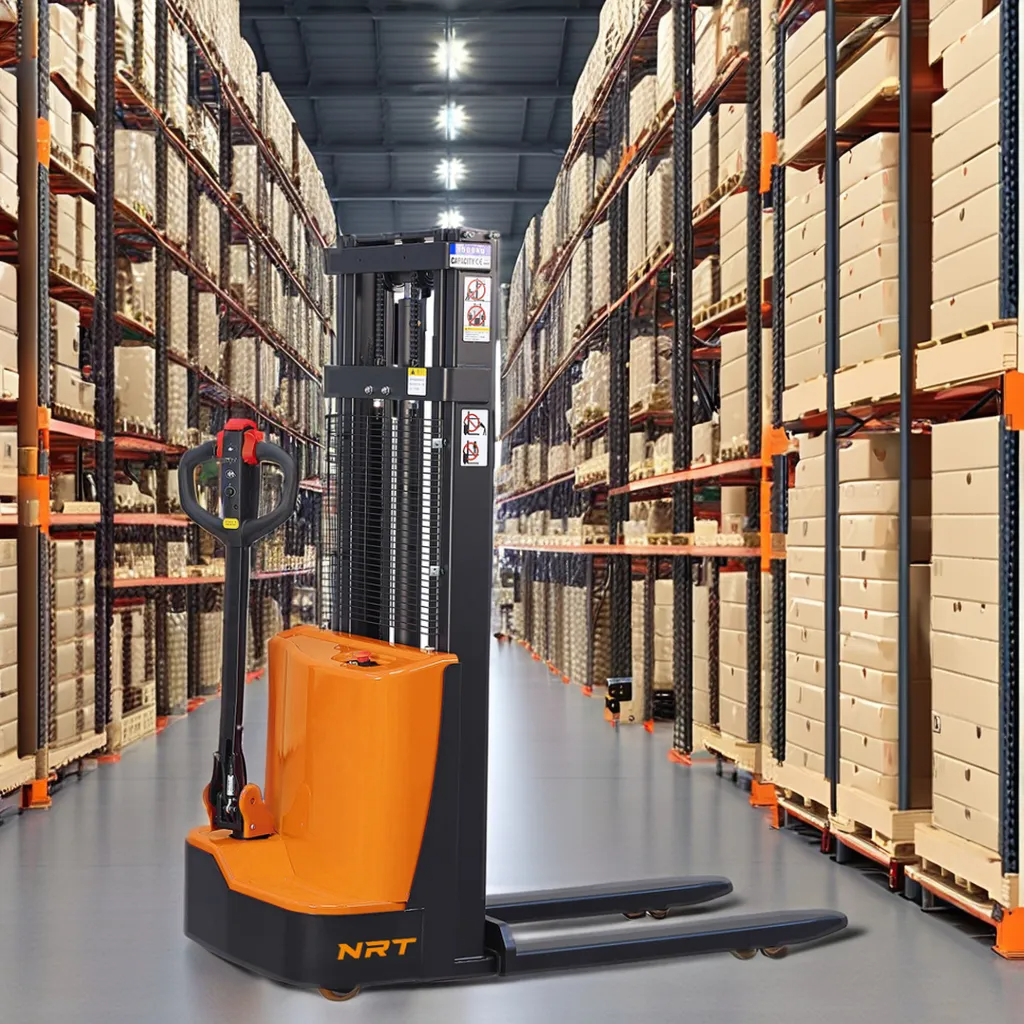

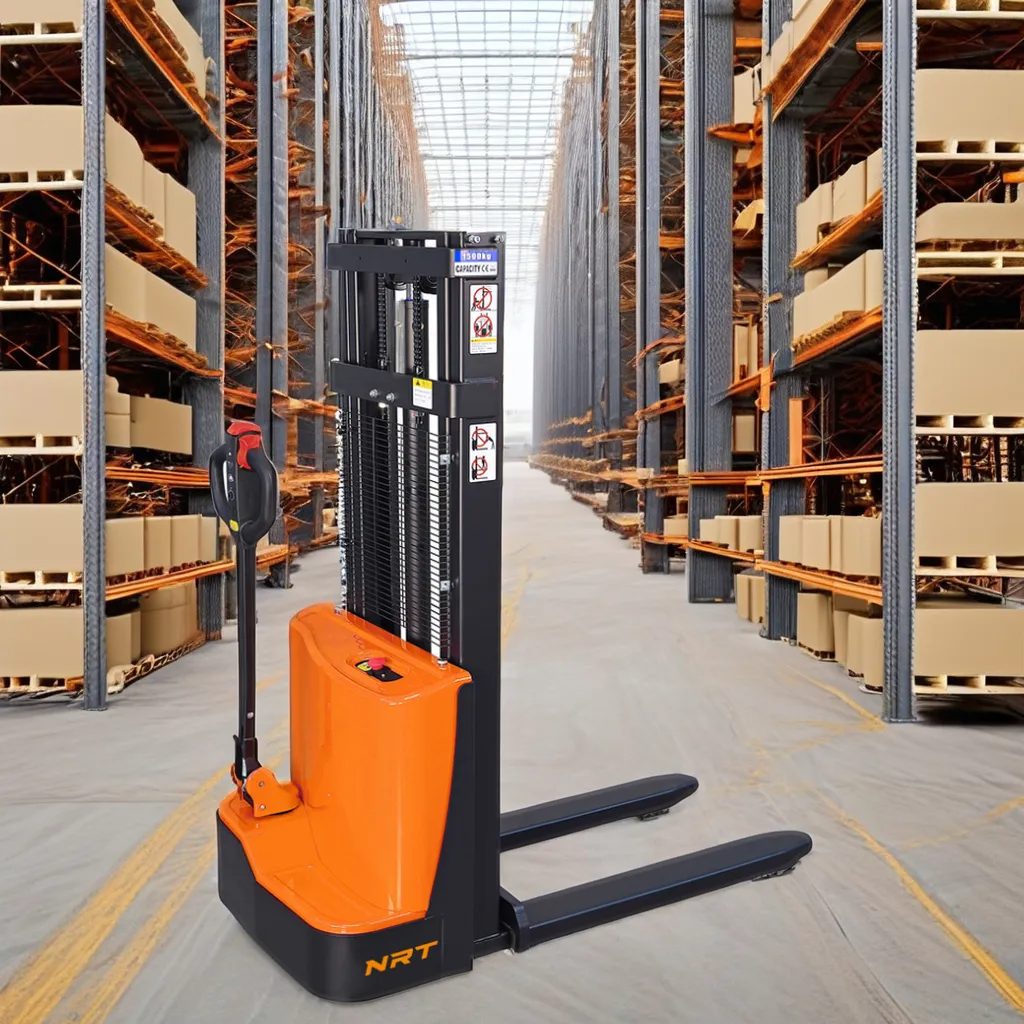

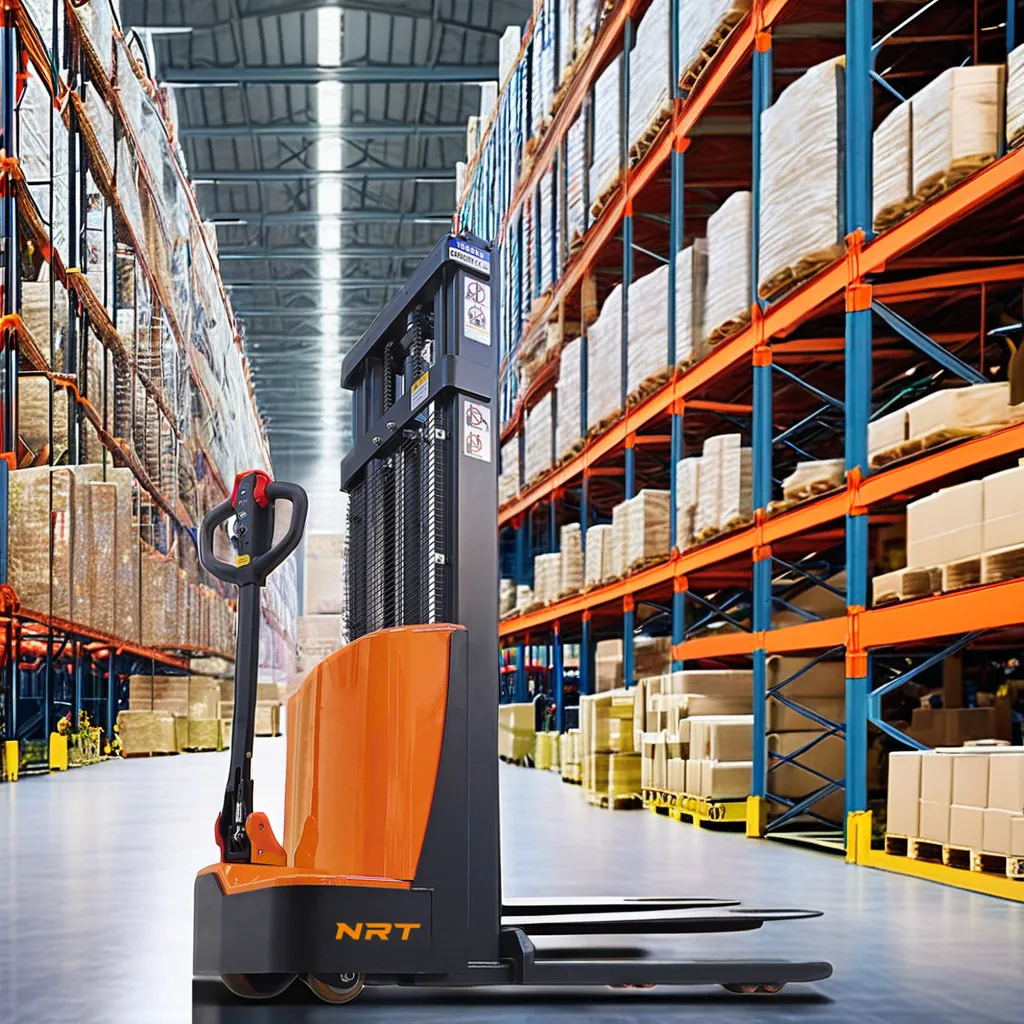

This industrial pallet walkie stacker forklift has high durability and stable performance, and can be used in almost any scenario and up to 1844mm in height, which shows that most of the height shelves can be reached. This electric pallet stacker has a rated weight of 1200kg and an overall size of 55x182x1250mm. The compact design is the perfect choice for you to shuttle through industrial warehouses and various narrow aisles.

Simple operation and rugged features, ergonomic design, allow operators to easily and comfortably complete super-strong tasks and reduce operating costs.

Pallet Stackers

Item	Electric Walkie Pallet Stacker
Rated Load	1500kg
Fork Size	60x142x1150mm
Height Of Fork From Ground	90mm
Weight	470kg
Driving speed(full load/no load)	3.5/4km/h
Climbing grade (full load no load)	3%,10%
Turning radius	1357mm
Lead-acid battery	24V/85Ah
Battery Cycle Times	400 times
Charger	24V/10Ah
Charging Duration	8h

Pallet Stacker

High-efficiency design
Improved safety
Easy to operate
Easy to maintain
High performance parameters

High-efficiency design

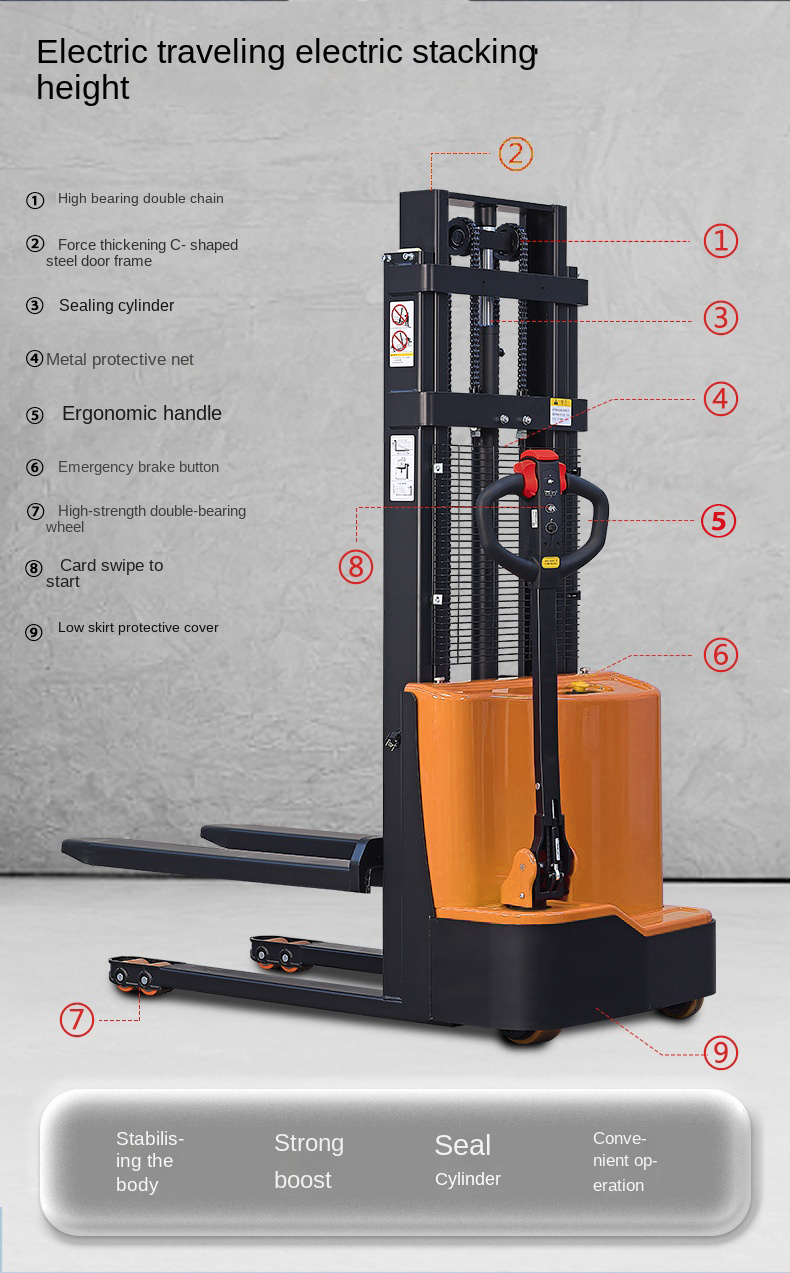

The electric pallet stackers adopts high-strength high-quality steel structure design to ensure the high reliability of vehicle operation.

The 24V/85AH lead-acid battery plus the brand drive and hydraulic system ensure the high reliability of the vehicle operation. At the same time, the low-noise and low-fault hydraulic station and the sealed oil cylinder make the lifting smooth and will not get stuck.
Improved safety

The explosion-proof design of the hydraulic system means that even if the oil pipe bursts, the mast will not drop quickly, which improves safety. The emergency reverse driving function and the emergency power-off switch provide additional safety for the operator.

The vehicle automatically switches to slow mode after the lifting multiple limit and the fork is lifted to a certain height, which enhances the safety of stacking operations.
Easy to operate

The centralized tiller head design conforms to ergonomics, and each function button is easy to operate.

The compact design and ultra-small operating radius allow the vehicle to be flexibly operated in a narrow space.
Easy to maintain

The large-capacity lithium battery and the configuration timer and power meter are convenient to remind the operator to charge in time and protect the battery. The machine body is easy to disassemble and assemble, and the controller has a self-diagnosis system.

The fault code is displayed through the handheld unit, making it easier to solve the fault. Low voltage automatic protection prolongs the battery life.

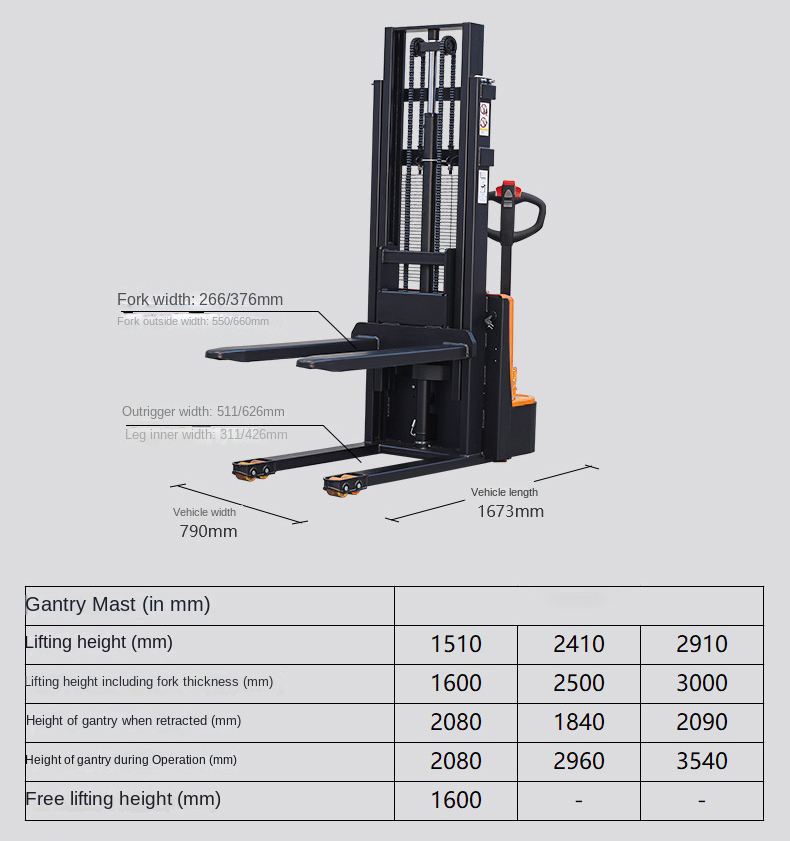

High performance parameters

The rated load of the electric stacker reaches 1500kg, and the fork lifting height ranges from 1500mm to 2910mm, meeting different operation requirements. CANBUS technology reduces the number of wiring, improves the reliability of the system, and facilitates troubleshooting

Daily maintenance

*After one week of use, the full electric stacker should be maintained once a week.

*Keep the maintenance site clean and hygienic, disconnect the power supply before maintenance, and pay attention to personal belongings and safety.

Motor maintenance

*Perform comprehensive maintenance of the motor once a year to check whether the connection wires of the motor output are correct and firm.

*Use a 250V megohmmeter to measure the cold insulation resistance of the motor. The resistance should be greater than 0.5MΩ. If the resistance is less than 0.5MΩ, it should be dried.

Hydraulic system maintenance

*Before checking the hydraulic system, the fork should be lowered to release the system pressure.

*The hydraulic system should be filled with new clean oil, and pay attention to using hydraulic oil of the same brand.
