NQ16Q01LD
NRT

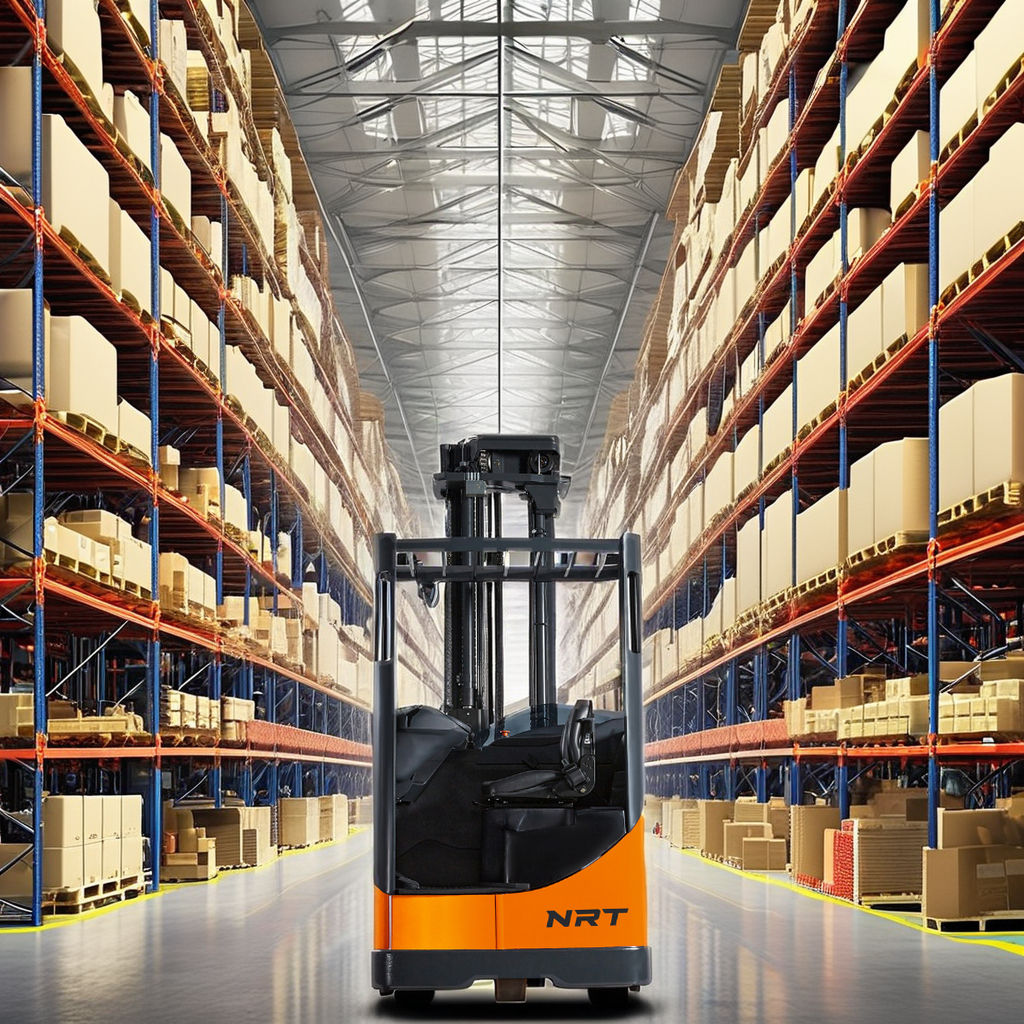

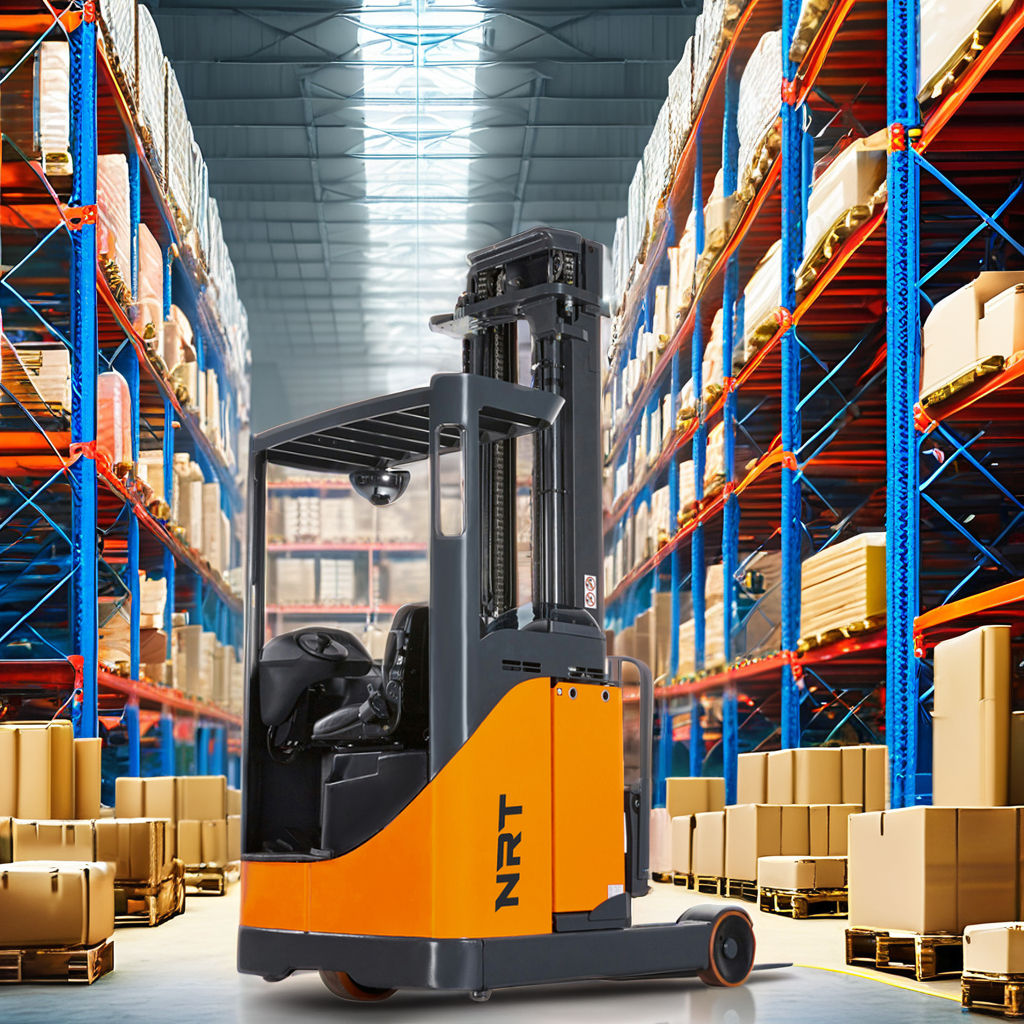

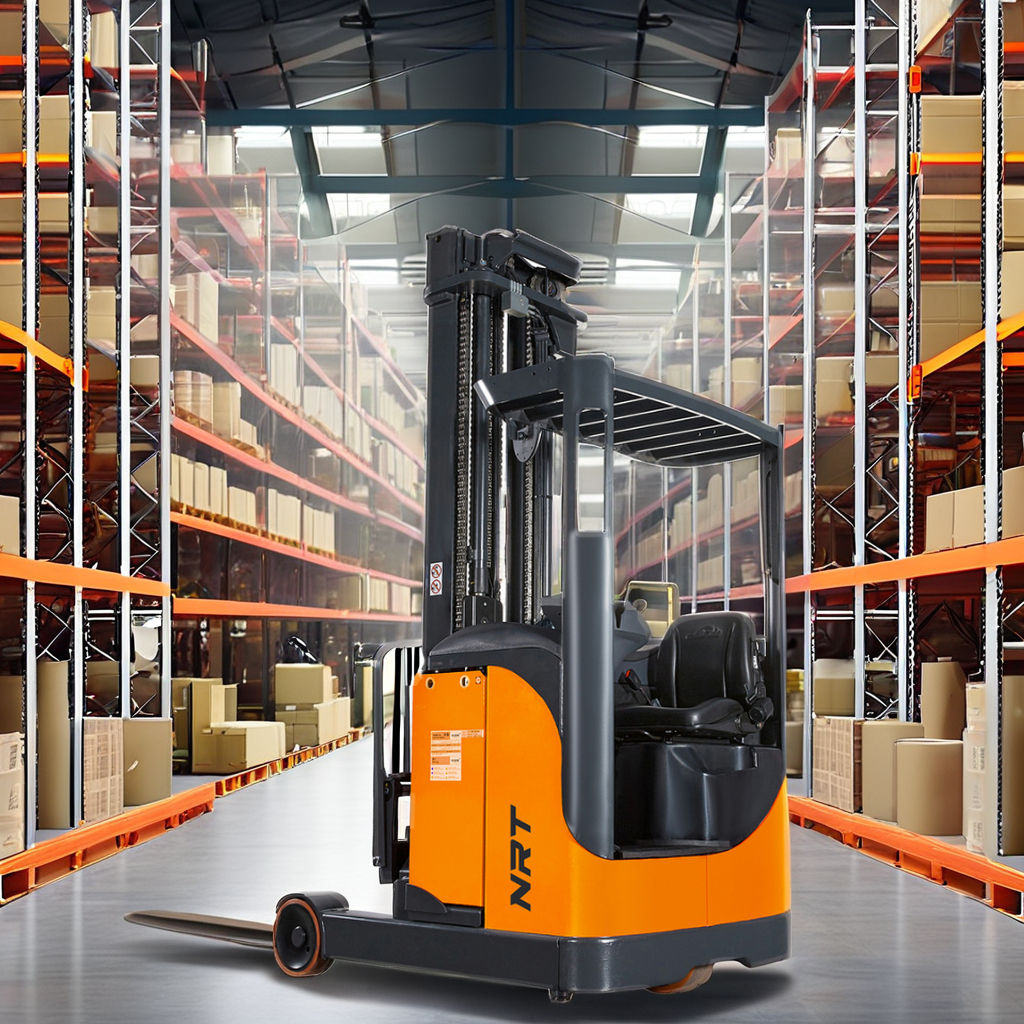

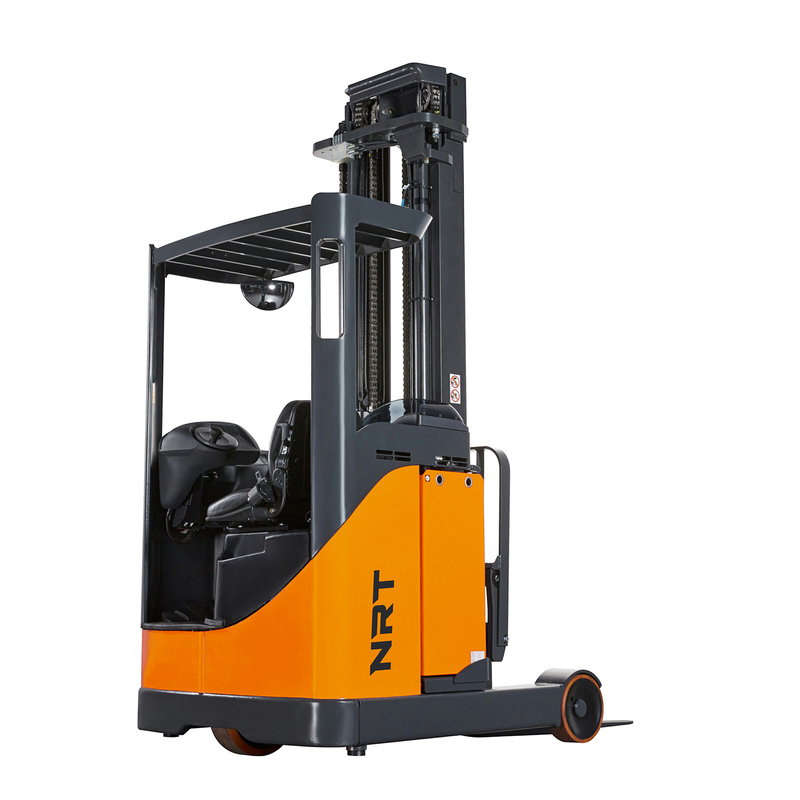

Compared with traditional products on the market, the biggest advantage of NRT reach trucks is that they have a newly upgraded three-stage gantry, with a maximum lifting height of up to 9.5m, while the ordinary standard gantry has a lifting height of 5.7m.

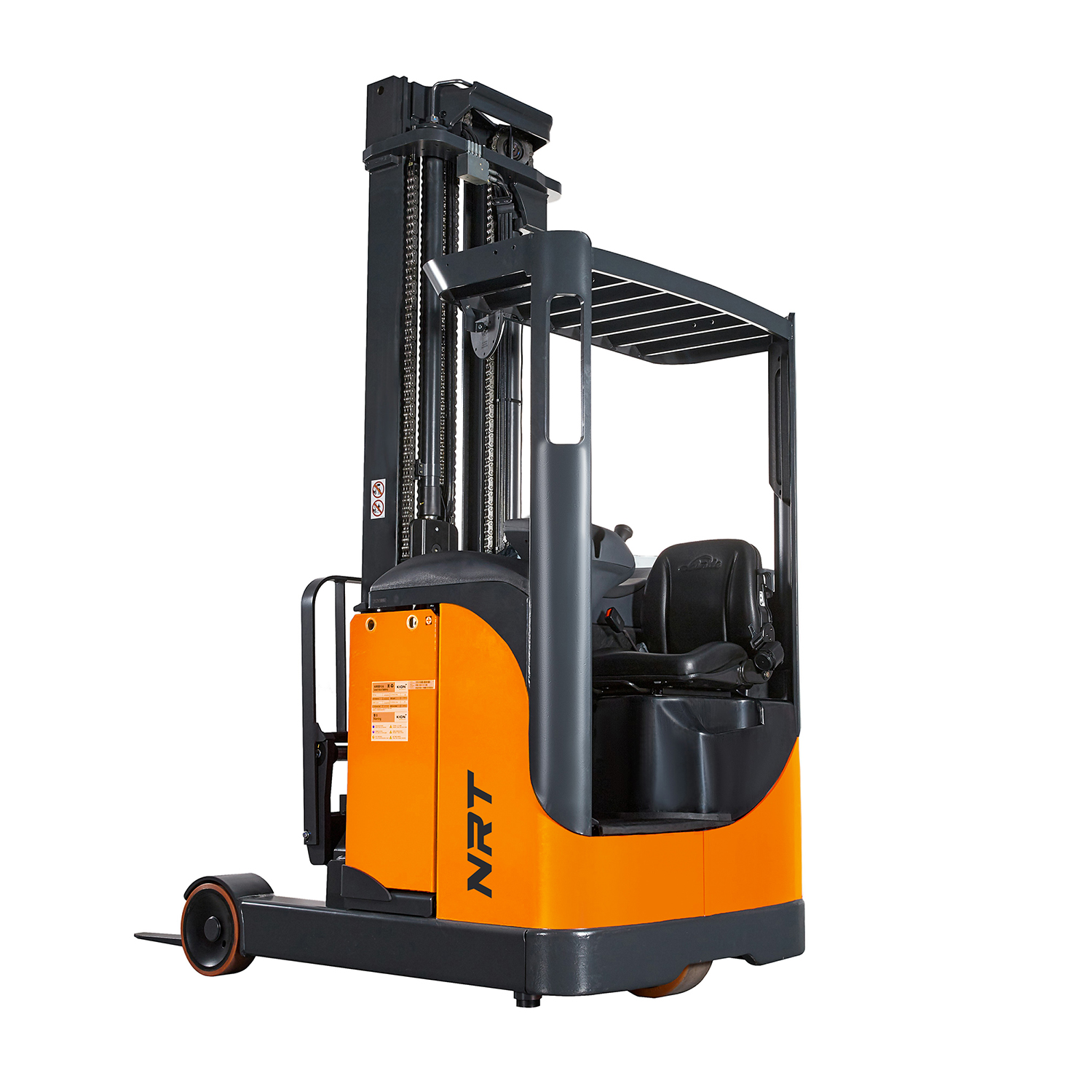

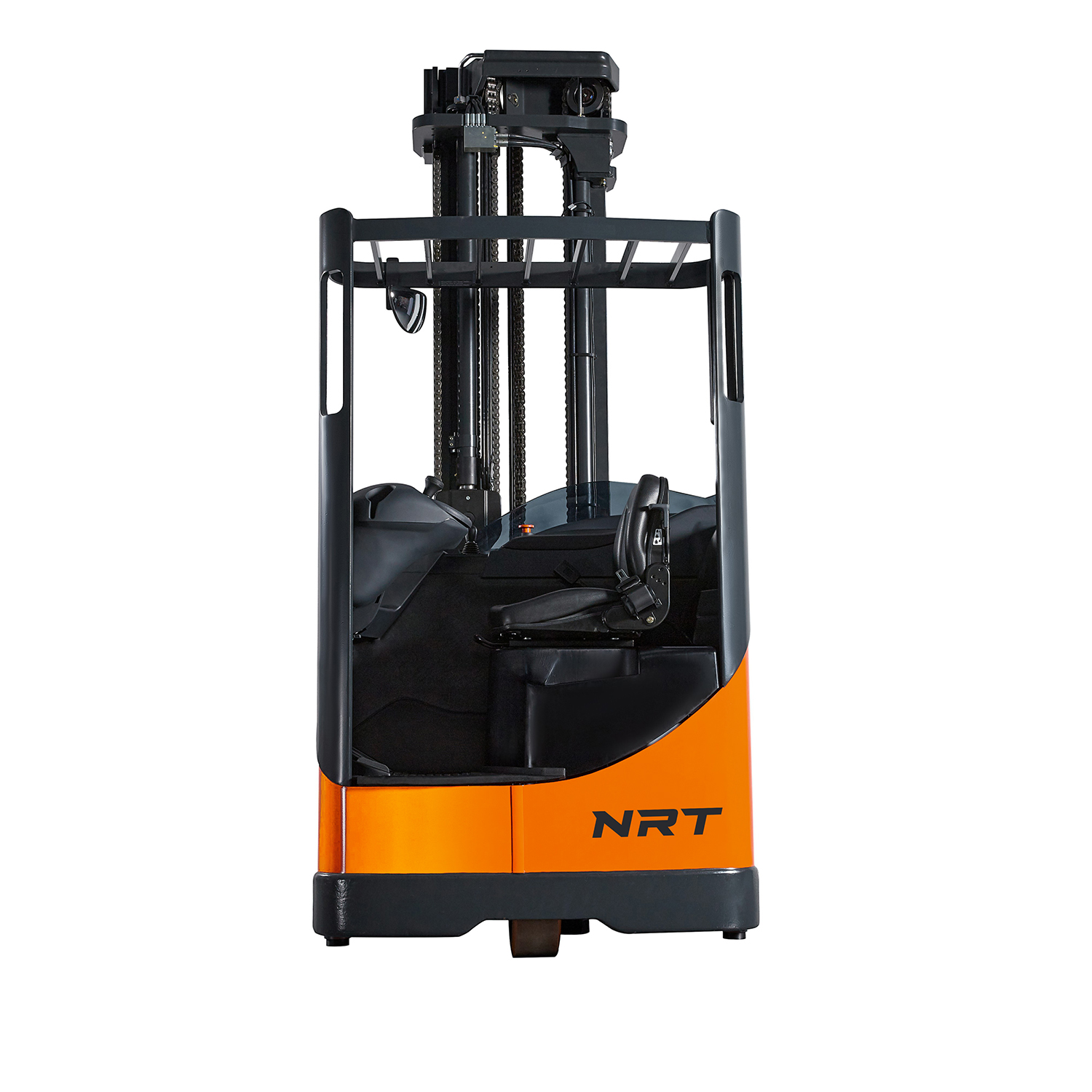

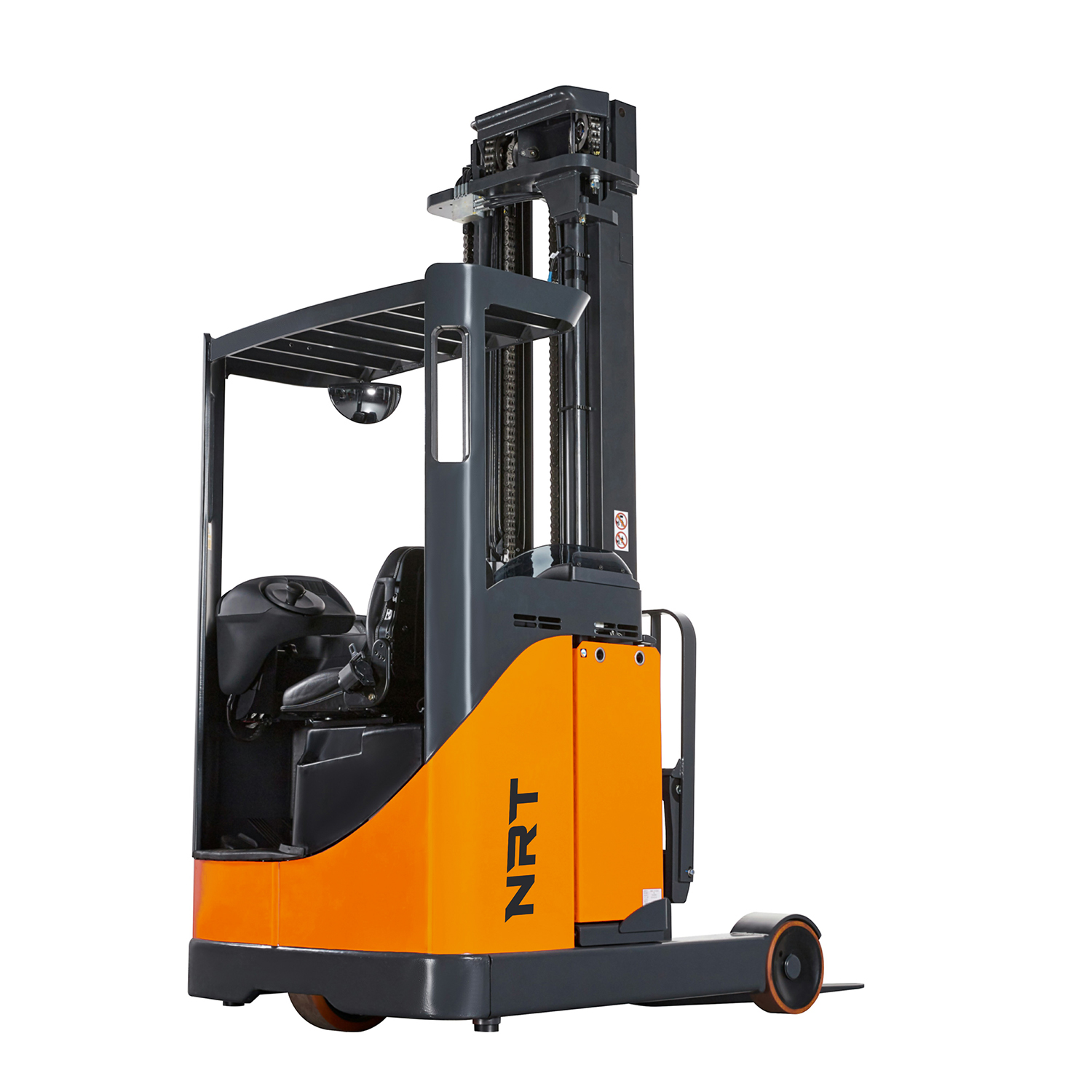

This electric reach truck is a device that can operate in wide and narrow aisles. Its forks can not only extend upward but also retract downward and extend forward.
In warehouses or retail industries, warehouses are mostly used at a high rate. The shelves and aisles in these environments tend to be narrow, and reach trucks have greatly solved this problem. Whether it is storing goods at high altitudes, storing pallets, or walking in compact aisles, this product can operate with ease, maximize the use of storage space, and help operators to complete moving and storage tasks efficiently and accurately.
This series has three models with different lifting heights and rated loads. The rated load base ranges from 1400kg to 2000kg (can be customized according to needs).
Item | Electric Reach Truck Forklifts System | ||
Model | NQ20Q01LD | NQ16Q01LD | NQ14Q01LD |
Rated load | 2000kg | 1600kg | 1400kg |
Weight | 3260kg | 2940kg | 2890kg |
Height of mast, lowered | 2910mm | 2476mm | 2476mm |
Free lift | 2061mm | 1627mm | 1627mm |
Lift | 5755mm | 5755mm | 5755mm |
Height of mast, extended | 6495mm | 6495mm | 6495mm |
Height of overhead guard (cabin) | 2110mm | 2110mm | 2110mm |
Height of reach legs | 373mm | 310mm | 310mm |
Height of seat, min/max | 940/1030mm | 940/1030mm | 940/1030mm |
Overall length | 2483mm | 2411mm | 2407mm |
Length to fork face | 1333mm | 1261mm | 1257mm |
Overall width | 1234/1250mm | 1234/1250mm | 1234/1250mm |
Fork dimensions | 100x45x1150mm | 100x45x1150mm | 100x45x1150mm |
Turning radius | 1775mm | 1640mm | 1540mm |
Length of chassis | 1911mm | 1748mm | 1638mm |
Travel speed, with/without load | 13.5km/h | 13.5km/h | 13.5km/h |
