Selecting a forklift is not just an equipment purchase. It represents a strict facility-level commitment. This specific choice dictates your aisle widths, racking density, and overall workflow efficiency. Getting it wrong means wasted space and bottlenecked operations.
Modern supply chains are rapidly shifting toward Just-In-Time (JIT) fulfillment. This fast-paced logistical environment narrows the core material handling focus down to three primary forklift categories. You need machines built for targeted scenarios rather than generic heavy lifting.
This guide moves beyond basic equipment definitions. We provide a procurement-focused breakdown of the three main functional types. We then cross-reference these types with strict OSHA classifications and practical power source realities. You will learn exactly how to align functional design, especially the dominance of Electric Forklifts, with your operational layout. Armed with this data, you can audit your facility readiness and make confident, compliant purchasing decisions.
The market is largely dominated by three functional types: Counterbalance Forklifts (general purpose), Reach Trucks (narrow-aisle efficiency), and Motorized Pallet Trucks (floor-level/staging mobility).
OSHA strictly categorizes these into distinct "Classes" (I through VII) which dictate necessary operator certifications and compliance standards.
Electric Forklifts now account for roughly two-thirds of new purchases due to lower long-term maintenance costs and zero indoor emissions, though Internal Combustion (IC) retains specific outdoor utility.
Procurement hinges on three rigid physical metrics: maximum lift capacity, load center dimensions, and the stability triangle.
Understanding forklift types requires looking past marketing claims. You must focus on functional design and specific operational use-cases. Each machine solves a unique spatial problem, but they all hit hard physical limits.

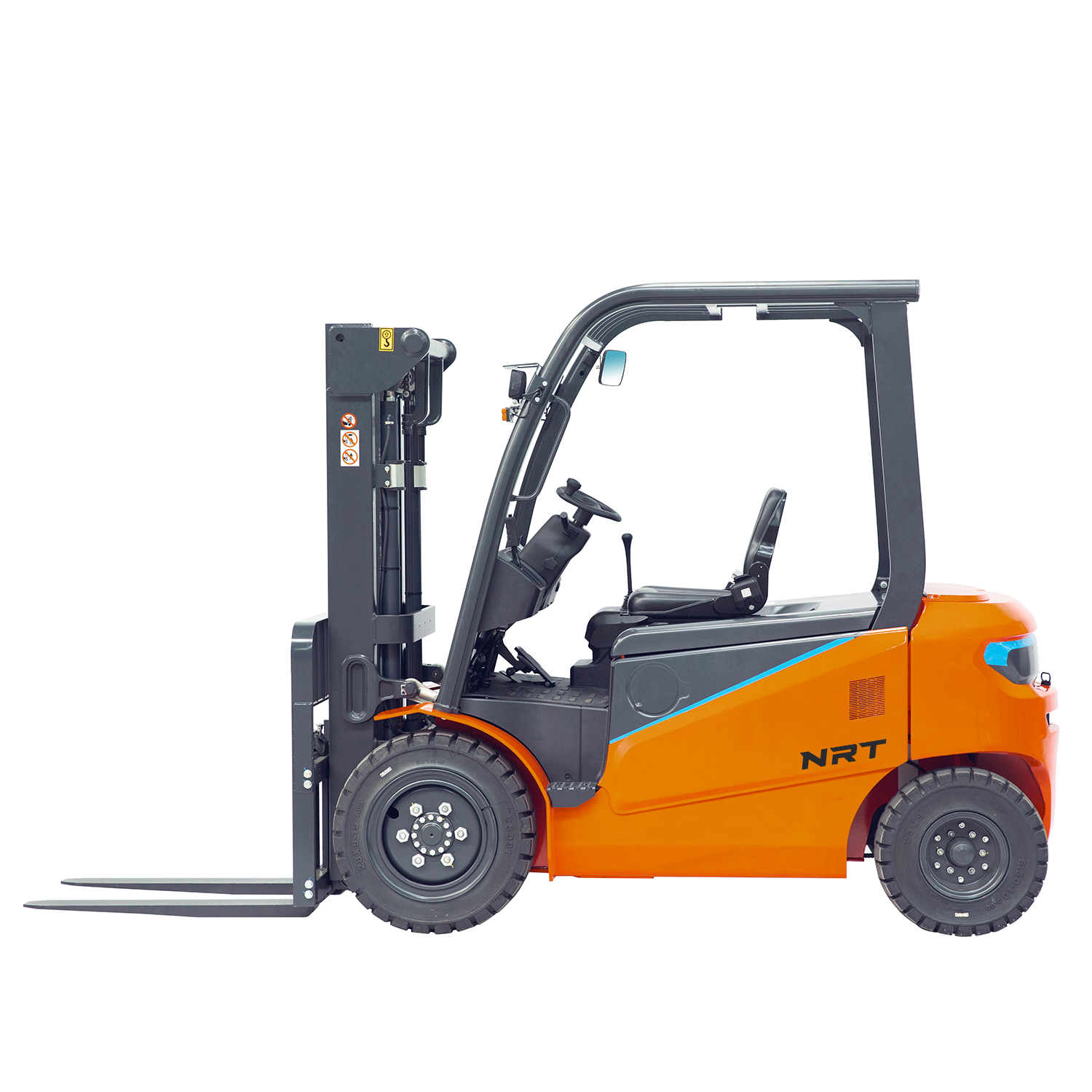

The counterbalance design represents the traditional image most people associate with forklifts. These machines use a massive cast-iron weight positioned at the rear of the chassis. This weight actively negates the heavy load lifted on the front forks.
Because the design handles the weight distribution internally, the machine requires no outrigging legs. You can drive the forks directly up to the racking or trailer edge. This immediate approach makes them incredibly versatile for standard pallet moving, dock-to-stock operations, and fast truck loading.
However, this straightforward design carries a spatial penalty. Counterbalance models feature a large turning radius. They generally require wide warehouse aisles, typically spanning 12 to 13 feet, to maneuver safely.
High-density warehouses cannot afford 13-foot aisles. Reach trucks solve this spatial problem through a completely different structural mechanism. They feature two outer stabilizing legs. These legs distribute the load weight directly into the floor. The mast then extends forward to "reach" into the racking system.
The operator usually stands sideways inside the cab. This stance provides excellent visibility for both forward travel and upward lifting. Reach trucks thrive in tight spaces, easily operating in aisles as narrow as 8 to 9 feet. They also reach extreme heights, often exceeding 40 feet.
You will frequently encounter several variants in the field:
Stand-up (standard): The baseline model used for single-deep rack storage.
Double-deep: Features an extended reach mechanism designed to place pallets two rows deep into racking.
Straddle trucks: Features wider base legs designed to slide on the outside of a pallet, increasing high-elevation stability.
Not every material movement requires heavy lifting. Motorized pallet trucks strip away the heavy counterweights and enclosed cabs. The operator either walks behind the unit using a steering tiller or stands on a small rear platform.
These pedestrian-operated machines excel at low-level order picking. They streamline loading dock staging and short-distance horizontal transport. They provide immense business value through their low acquisition cost and tiny operational footprint. Furthermore, training and certification requirements remain generally simpler compared to heavy sit-down models.
Once you select a physical type, you face the primary decision-stage bottleneck: choosing a power source. Buyers must evaluate the realities of maintaining electric batteries versus managing combustible fuels.

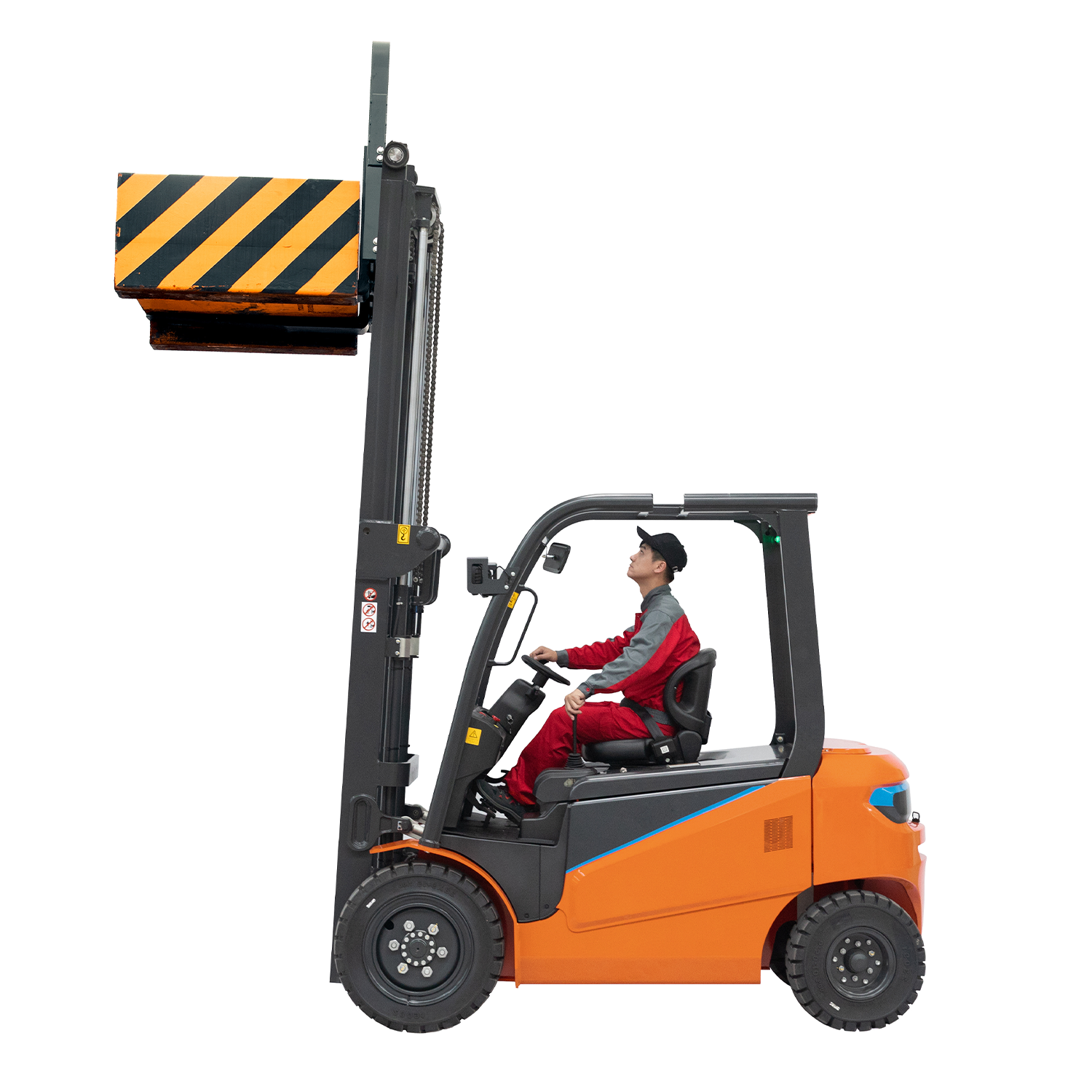

The material handling sector is rapidly electrifying. Heavy-duty Electric Forklifts dominate indoor environments. They demand a higher upfront acquisition cost because you must purchase the industrial battery and install charging infrastructure.
However, they deliver massive long-term operating savings. These units lack internal combustion engines, meaning they have vastly fewer moving parts. You eliminate fuel costs entirely.
Beyond cost, they provide a non-negotiable environmental and compliance edge. Zero indoor emissions remain mandatory for food-grade processing, pharmaceutical manufacturing, and any poorly ventilated indoor spaces. Their low noise output directly complies with stringent indoor occupational health standards.
You must actively manage implementation risks. Standard lead-acid batteries require dedicated charging stations and strict watering protocols. Multi-shift operations face potential downtime for battery-swapping, unless you invest in modern Lithium-ion fast-charging systems.
Internal Combustion models run on Propane (LPG), Diesel, or Gasoline. They thrive in environments where electric fleets struggle.
IC models suit continuous outdoor operation across rugged terrain. They remain essential for remote lumber yards or construction sites where installing heavy electrical charging infrastructure is simply impossible. You can refuel a propane tank in three minutes and immediately resume heavy lifting.
The limitations involve ongoing fuel expenses and higher mechanical maintenance. You must service engines, transmissions, and various fluid systems. Furthermore, operators must strictly monitor mandatory ANSI B56.1 noise and emission compliance levels.
Evaluation Metric | Electric Forklifts | Internal Combustion (IC) |
|---|---|---|
Upfront Cost | Higher (Requires battery/chargers) | Lower (Standard engine setup) |
Operating Environment | Strictly indoor / smooth outdoor surfaces | Rugged outdoor / all-weather |
Emissions & Noise | Zero emissions / Near-silent operation | Produces exhaust / Requires ANSI noise checks |
Refueling / Recharging | 8 hours charge/cool (Lead-acid) or Fast-charge (Li-ion) | 3-minute tank swap or quick fuel pump refill |
Buyers must understand how casual functional names map to legal categories. OSHA categorizes these machines into distinct Classes. These classifications directly dictate your necessary operator certifications and legal compliance standards.
Class I: Electric Motor Rider Trucks. This covers standard electric counterbalance models. Current market data shows this class represents the vast majority of modern fleet upgrades.
Class II: Electric Motor Narrow Aisle Trucks. This category legally houses your reach trucks, double-deep models, and order pickers.
Class III: Electric Motor Hand Trucks or Hand/Rider Trucks. This class encompasses motorized pallet jacks and walkie stackers.
Class IV: Internal Combustion Engine Trucks (Cushion Tires). These feature smooth, solid rubber tires specifically meant for indoor concrete floors.
Class V: Internal Combustion Engine Trucks (Pneumatic Tires). These utilize air-filled or solid pneumatic tires. They feature a larger footprint built for rough outdoor terrain.
Class VI: Electric and Internal Combustion Engine Tractors. Often called tow tractors, used primarily for pulling heavy luggage carts or material trains.
Class VII: Rough Terrain Forklift Trucks. This includes massive telescopic handlers built specifically for construction and agricultural sites.
Best Practice: Never allow an operator certified only on a Class III pallet jack to jump onto a Class II reach truck. OSHA treats these as entirely distinct legal qualifications.
Moving from basic definitions to active procurement requires applying strict engineering realities. You cannot buy based on assumptions. You must evaluate physical metrics.
Lift capacity is never a static, unchanging number. A standard forklift features a three-point suspension system, creating a virtual "stability triangle." The center of gravity must stay inside this triangle to prevent tipping.
Manufacturers base the stated lift capacity on a specific load center. A standard machine may safely lift 5,000 lbs at a 24-inch load center (representing a standard 48-inch pallet). However, lifting longer or irregularly shaped loads pushes the center of gravity forward. This shift drastically reduces the safe lifting capacity. Lifting a 60-inch long load might reduce your safe capacity from 5,000 lbs down to 3,800 lbs.
You must calculate the necessary clearance to ensure your machine can turn safely into a rack. This calculation involves the Right-Angle Stacking capability.
To determine the minimum required aisle space, use this standard calculation framework:
Calculation Component | Definition |
|---|---|
Basic Turning Radius | The tightest circle the forklift alone can make. |
+ Load Length | The length of the pallet protruding from the forks. |
+ Safety Clearance Buffer | Usually an extra 12 inches added to ensure safe maneuverability. |
= Minimum Aisle Width | The absolute minimum distance required between racking rows. |
Your floor surface entirely dictates your tire selection.
Cushion Tires: These solid rubber wheels sit on a smaller chassis. They exclusively require smooth, indoor concrete. They offer zero shock absorption.
Pneumatic Tires: These come as air-filled or solid rubber formats. They create a larger footprint. You must select pneumatics for asphalt, gravel, or heavily degraded yard surfaces.
Common Mistake: Attempting to run a cushion tire machine across an asphalt yard will quickly destroy the axles and violently shake the operator.
Deploying new equipment introduces hidden friction points. Many procurement managers overlook facility readiness, leading to costly delays and safety hazards.
You cannot operate advanced narrow-aisle equipment on bad flooring. Reach trucks and heavy Electric Forklifts require highly level, defect-free concrete floors. When a reach truck extends its mast 35 feet into the air, a tiny half-inch dip in the floor concrete translates to several inches of dangerous mast sway at the top. You must audit your floor flatness before ordering tall masts.
Upgrading an entire fleet to electric power requires substantial building modifications. You must conduct comprehensive electrical grid audits. Most standard warehouse breaker boxes cannot handle six heavy-duty chargers firing up simultaneously at shift end.
If you utilize traditional lead-acid batteries, OSHA demands strict ventilation compliance for the charging areas. These batteries off-gas hydrogen during charging. You must install proper exhaust fans, emergency eye-wash stations, and chemical spill kits.
Warehouses rarely use bare forks anymore. Operations add sideshifters to fine-tune pallet placement. They use fork positioners to handle varying pallet sizes mechanically. Some add heavy paper-roll clamps.
Adding these hydraulic attachments adds physical weight to the front carriage. More importantly, it pushes the entire load center forward by several inches. This instantly alters the stability triangle and significantly lowers the base lifting capacity. Failing to account for attachment de-rating remains a critical oversight in many procurement calculations.
Re-evaluating your material handling fleet requires aligning physical machinery with spatial realities. Choosing between a Counterbalance, Reach, or Motorized Pallet truck directly dictates your facility layout and racking density. Furthermore, the pivotal choice between Electric and IC power establishes your long-term maintenance burdens and environmental compliance standing.
Before initiating any formal RFPs with dealers, follow these action-oriented next steps:
Audit Pallet Weights: Identify your absolute heaviest pallet weight and longest load dimension to calculate your true required load center.
Measure Clearance: Measure your tightest rack-to-rack aisle width at floor level, ensuring you account for overhanging pallet corners.
Assess Infrastructure: Review your local electrical grid capacity and floor flatness ratings to verify facility readiness for modern upgrades.
Gathering this operational data ensures you procure machinery that optimizes workflows rather than hindering them.
A: Free lift indicates how high the forks can rise before the mast channels physically begin to extend upward. This metric is critical when operating inside low-clearance areas like semi-trailers or shipping containers. Maximum fork height is simply the absolute highest elevation the forks can safely reach when the mast fully extends.
A: The OSHA Class I Electric Counterbalance remains the most dominant machine in general warehousing. It provides excellent universal utility for dock-to-stock operations while offering zero indoor emissions and low ambient noise levels.
A: Yes, conditionally. While traditional models were strictly indoor-only, manufacturers now build modern sealed electric pneumatic models specifically for outdoor yards. However, they should not be operated in heavy, standing water or thick mud compared to heavy-duty Class V diesel counterparts.
A: The Overhead Guard is the metal cage protecting the operator from falling debris. The Load Backrest prevents stacked items on a pallet from sliding backward into the mast. A Side Shift is a hydraulic attachment allowing lateral fork movement for precise alignment. A Dock Plate bridges the gap between the warehouse floor and a trailer bed.
